500kw biomass gas generator
- 30 Set / Sets per Month
- Qingdao Port
- T/T Credit Card
- China manufacture Lock sheet Generator QFSN-300-2-20B for Pacitcan TPP material
- Yawing horizontal axis wind generator 25kw
- 2kw Eolica wind generator
- 3KW 360 RPM Permanent Magnet Generator For Wind Turbine Or Hydro Turbine Customized Electric Motor
- 2000W Wind-solar Hybrid Home Wind Power Generation Five-blade portable manufacturers 48v wind generator turbine price
- 300w household small wind generator solar wind energy power generation system micro generator set home use wind turbines price
Product Details
Place of Origin: | Shandong, China | Brand Name: | LHBMG500 | Model Number: | Biomass generator |
Type: | Wind Power Generator |
Product Description
biomass gas generato 500kw wind power r
Shandong Lvhuan Power Equipment Co,.Ltd.
WE DEVOTE OURSELVES TO GAS POWER GENERATION.
1. Company Introduction
- Since 2008
- Factory area over 40000m2
- Starff over 260 employees
- Technicians over 100 people
- website
2. Scope of Application
Waste to electricity, such as the wood chips, saw dusts, rice husk, straw, nut shell and soon, gasified by biomass gasifier to get the biomass gas and realize electricity generation.
3. Advantage
- Advanced configuration keep accurate ans stable working condition under high speed working speed
- High generalization, easy maintenance, low maintenance cost.
- Economical, low operating cost
- Reduced the carbon deposition on the wear of the engine cylinder and the valve to prolong the using life of the genset.
- Adopt one of the world's most advanced gas control technology, fully available to the characteristics of fuel gas.
- Powerful low pressure gas SPI (single point Injection) system used for various supercharger premixed engine.
- Suitable for differnt concentration methane and propane, variety of quality gas.
- Precise air-fuel ratio rarefied combustion control and Generator speed/load control
- Realize lean burn, reduce the intake pipe tempering and improved efficient to reduce the heat load.
4. High Configuration
- Ignition system: ALTRONIC(USA)
- Starting system: DC24V electric motor.
- Mixer: IMPCO(USA)
- Sparking plug:STITT
- Engine Control System: Woodward(USA), HEINZMANN(Germany)
- Electric Control System: ComAp(Czech), Deepsea(UK)
- Alternator: Siemens, LEROY-SOMER, Marathon
5. Gas Requirements of Biomass Gas Genset
Within 1m from pressure regulating valve of gas intake
- LHV ≥ 4.2MJ/Nm3
- Pressure of natural gas: 5-20kpa, rate of pressure change ≤ 1kpa/min
- H2S ≤ 200mg/Nm3
- Tar content ≤ 20mg/Nm3
- Nm3 ≤ 20mg/Nm3
- Impurity particle size ≤ 5μm, impurity content ≤ 30mg/Nm3
- Moisture content ≤ 40g/Nm3

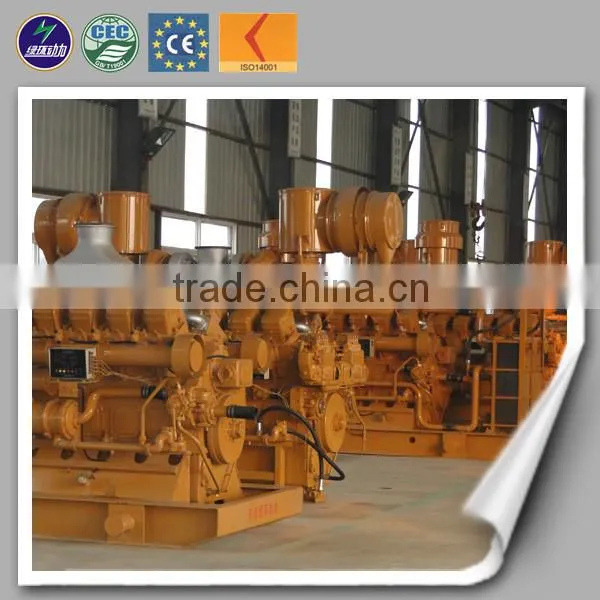

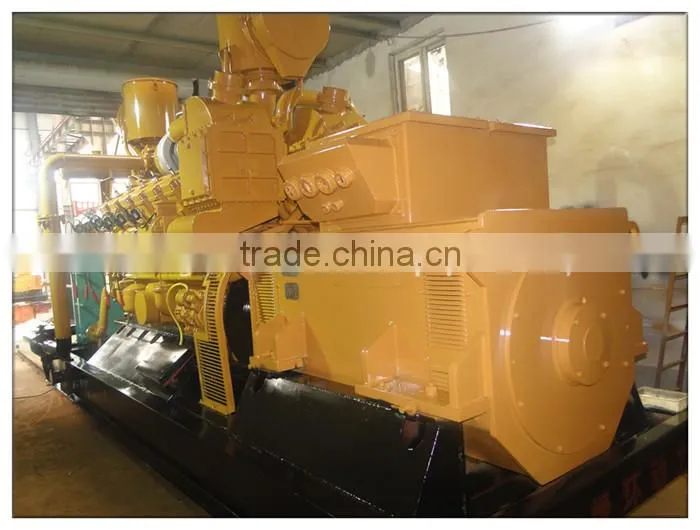

6. More pictures of our equipment7. Visitors
8. Project Cases
9. Certificate
10. Service
(1) 24 hours- technology support service
(2) Professional engineer team
(3) Customized design based on real situation
(4) Detailed and professional layout drawing, installation drawing supplied and other drawing required by the customers.
(5) Engineer service on site
(6) Free training in Factory
(7) Equipment test before delivery
(8) One year guarantee period and lifetime service.
(9) Spare parts supplied lifetime.
Sincerely Welcome to Our factory
Biomass generator list | |||||
Gen-set mode | Prime power | Continuous power | Engine Mode | Displacement | |
LHBMG10 | 10kw | 8kw | LH2100 | 1.80L | |
LHBMG20 | 20kw | 16kw | LH4100 | 3.61L | |
LHBMG30 | 30kw | 24kw | LH4105 | 4.32L | |
LHBMG40 | 40kw | 32kw | LH6105 | 6.45L | |
LHBMG50 | 50kw | 40kw | LH4135 | 8.58L | |
LHBMG60 | 60kw | 48kw | LH4135 | 8.58L | |
LHBMG70 | 70kw | 56kw | LH6135 | 12.8L | |
LHBMG80 | 80kw | 64kw | LH6135 | 12.8L | |
LHBMG90 | 90kw | 72kw | LH6135 | 12.8L | |
LHBMG100 | 100kw | 80kw | LH6135 | 12.8L | |
LHBMG120 | 120kw | 100kw | LH12V135 | 25.75L | |
LHBMG150 | 150kw | 120kw | LH12V135 | 25.75L | |
LHBMG180 | 180kw | 144kw | LH12V135 | 25.75L | |
LHBMG200 | 200kw | 160kw | LH12V135 | 25.75L | |
LHBMG300 | 300kw | 240kw | LH6190 | 35.70L | |
LHBMG400 | 400kw | 320kw | LH12V190 | 71.45L | |
LHBMG500 | 500kw | 400kw | LH12V190 | 71.45L | |
Parameter of biomass generator | |||||
Rate Voltage | 400V/230V | ||||
Phase | 3Phase 4 wires | ||||
Rate Frequency | 50HZ/60HZ | ||||
Power Factor | 0.8 | ||||
Voltage Regulating Range | 95%-105% | ||||
Voltage Steady State | ≤±2% | ||||
Voltage Transient State | ≤±10% | ||||
Voltage Settling | ≤1S | ||||
Voltage Volatility | ≤±0.5% | ||||
Frequency Steady State Regulation Rate | ≤0.5% | ||||
Frequency Transient State Regulation Rate | ≤±10% | ||||
Heat Consumption | 10mj/kw.h | ||||
Pressure | 5-20kpa | ||||
Intake Mode | Natural intake | ||||
Sparking Mode | Sparking plug | ||||
Voltage Regulation Mode | automatic | ||||
Speed Regulation Mode | Electronic speed regulation | ||||
Lubricating Mode | Pressure and splash | ||||
Cooling Mode | Closed/open circulating water cooling | ||||
Starting Mode | 24V electric motor | ||||
Overhaul Time | ≥30000h | ||||
Noise | ≤105aB(A) | ||||
Exhaust Temperature | ≤650°C |
FAQ
1) What are the continuous power and the standby power?
It depends on the working hours of the genset per day.
It depends on the LHV of the fuel gas.
It depends on the loading equipment.
Standby power * 0.8 = continuous power
2) How long is the warranty?
One year
3) Do you provide installation? commissioning? and training?
Yes
4) Your engineer can go abroad?
Yes
5) Can you supply the spare parts?
Yes
6) Can you provide the turnkey project?
Yes
