Specifications
syngas generator1. CE certificate
2. Highly cost effective
3. On-site installation
4. 24-hour service
Good performance ! 300kw syngas generator
1. Introduction
Shandong Lvhuan Power Equipment Co,. Ltd is a comprehensive high-tech enterprise. Our main products include coal-bed gas generator, biogas generator set, natural gas generator set, biomass generator set, coke-oven gas generator set and coal gas generator set.
2.Requirements For Biomass Gas Genset Working Condition
Within 1m from pressure regulating valve of gas intake
- Gas temperature ≤ 40℃
- Pressure 3-20kpa, pressure changing rate ≤ 1kpa/min
- H2S ≤ 200mg/Nm3
- NH3 ≤ 20mg/Nm3
- Tar Contecnt ≤ 20 mg/Nm3
- Heat value ≥ 4.2MJ/Nm3
- Impurity particle size ≤ 5μm, impurity content ≤ 30mg/Nm3
- Moisture content ≤ 40g/Nm3
3. Main Technical Parameter of 250kw-600kw Power Series Biomass Gas Gen-set
Output power 300kw
Output voltage 400V/230V
Frequency 50/60Hz
Exciting method brushless excitation
Voltage regulation mode antomatic
Phase AC 3-Phase, 4 wire
Application areas Rubbish landfill disposal, animal husbandry and livestock breeding dejection disposal, industrial organism disposal, various of wood and crops
4.Technical Parameters of Biomass Gas Gen-set
| Model Number (Engine Type) | LHNG300 |
| Brand Name | LVHUAN |
| Prime Power/Standby Power | 240KW/300KW |
| Rated Speed | 1000/1200RPM |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1s |
| Heat consumption | ≤11mj/kw.h |
| Lubricant consumption | ≤1.0g/kw.h |
| Engine Capacity | 32 L |
| Cylinder Number | 6 |
| Cylinder Bore | 190mm |
| Stroke | 210mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Siemens |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1000 running hours arrives first |
| Type | Open |
| Control system | Automatic alarm system |
| Size | 5300x1970x2170mm |
| Weight | 8200kg |

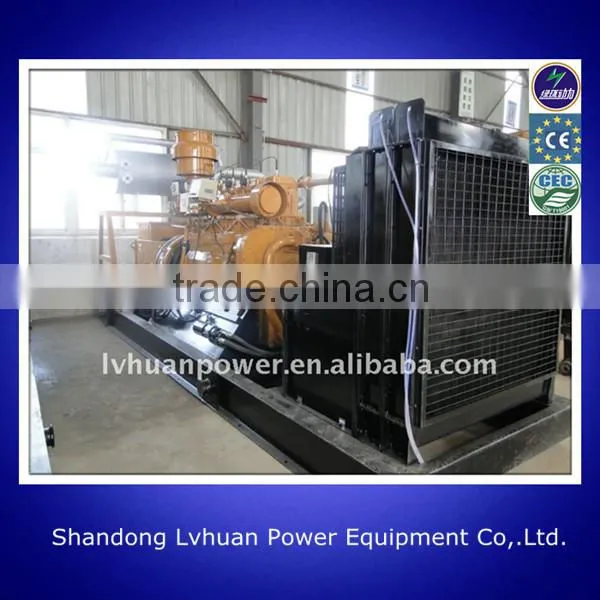

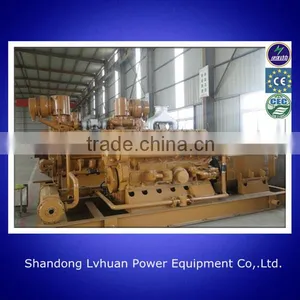

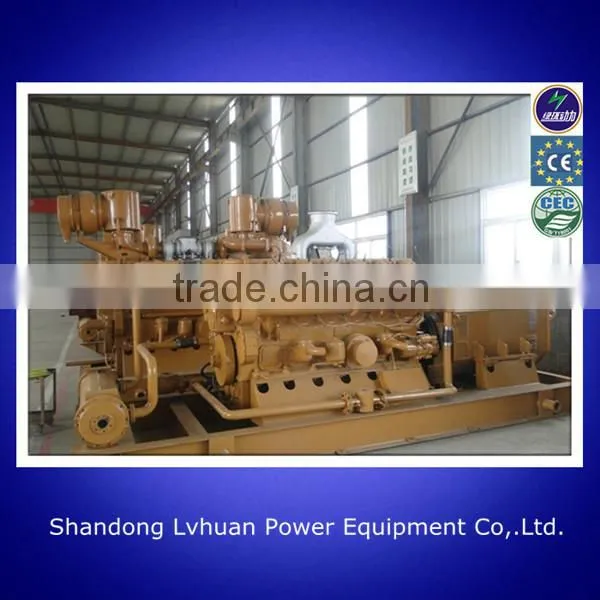

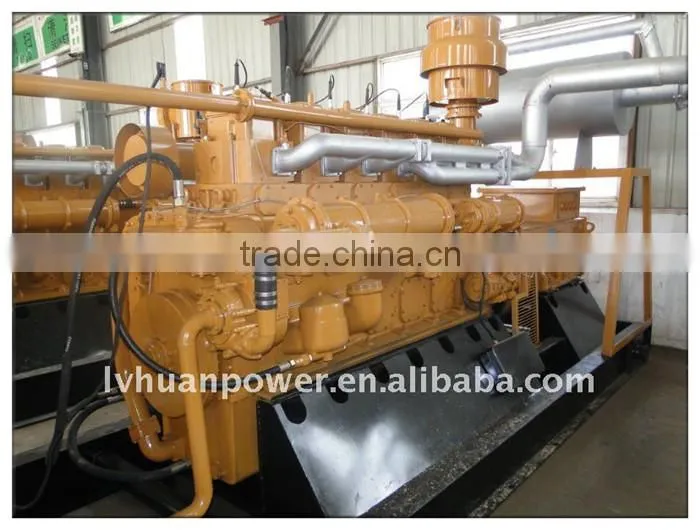

5. More Equipment Pictures
6. General Standard Spare Parts Supplied
7. Project Cases
8. Certificate
9. Sale service
Sincerely welcome you to visit our factory to build future cooperation relationship. Helping our customer generating electricity is our purpose.
