Specifications
Three Phase DIN-Rail Smart Energy Meter with RS4851. Through RS485, read, write and set CT ratios
2. Impulse indication
Three Phase DIN-Rail Smart Energy Meter with RS485
As a professional manufacturer, YTL designs and produces Din-Rail kWh meter which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.
YTL is devoted to develop and design all types of Din-Rail kWh meter, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | ||
Product Name |
Three Phase DIN-Rail Smart Energy Meter with RS485 |
|
Installation type |
Din rail |
|
Installation type |
D519004 ( Smart Energy Meter ) |
|
Brand |
YTL ( Smart Energy Meter ) |
|
Rated Current |
10(100)A |
|
Reference Voltage |
3*220/380V |
|
Frequence |
50-60HZ |
|
Display Mode |
LCD 6+1 |
|
Accuracy |
1 |
|
Impulse Constant |
800imp/kWh |
|
Start Current |
0.004Ib |
|
Connection Mode |
Direct type |
|
Communication&Protocol |
RS485 (IEC62056-21 or MODBUS) |
|
Power Consumption |
≤1W and 7VA |
|
Material of meter case |
PC |
|
Size |
122*100*65mm |
|
Certificate |
ISO9001 |
|
Standard |
IEC62052-11/IEC62053-21 |
|
2.Functions and characteristic | ||
A. Display Mode: LCD display 6+1, display the total energy. | ||
|
B. Impulse Indication: Near the right side of the display screen, comes the A, B, C current indication and CF impulse indication respectively. Impulse indication will shine at different rate according to present the energy consumption of the user.
| ||
| ||
3.Outer and mount dimension | ||
| ||

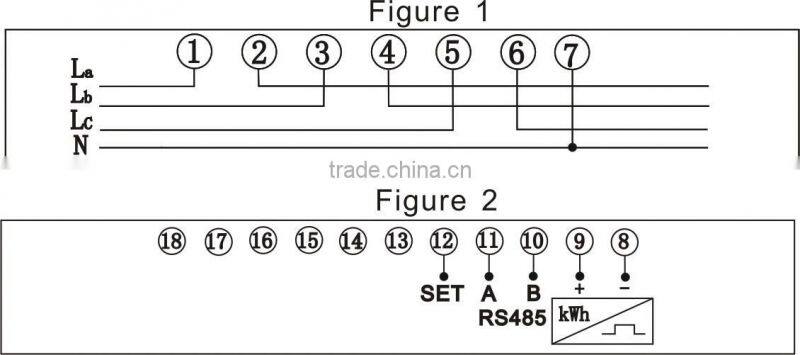

4.Wiring diagram | ||
| ||
5.Transaction Information | ||
MOQ |
500pcs |
|
/ |
Din-Rail kWh meter |
|
Sea Port |
Shanghai |
|
Payment Terms |
TT LC |
|
Supply Ability |
500,000pcs per month |
|
/ |
Din-Rail kWh meter |
|
Delivery time |
20-25 days |
|
Normal Package |
common box with Din-Rail kWh meter |
|
| ||
|
| ||
|
If you are interested in three phase Din-Rail kWh meter with RS485, pls feel free to contact us at any time. | ||
