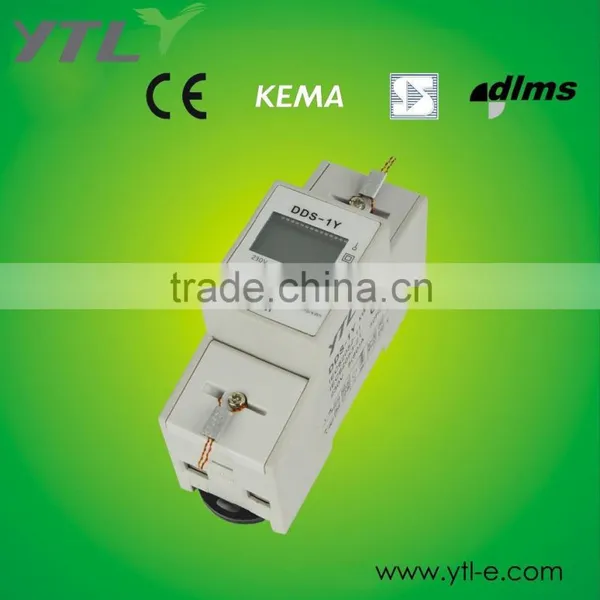

Single Phase 2Modular DIN-Rail Energy Meter with RS485
As a professional manufacturer, YTL designs and produces Kilowatt hour meter which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.
YTL is devoted to develop and design all types of Kilowatt hour meter, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
| 1.Product Details | |||
| Product Name | Single Phase 2Modular DIN-Rail Energy Meter with RS485 | ||
| Installation type | din rail | ||
| Module No. | D119001-01 ( Energy Meter with RS485 ) | ||
| Brand | YTL ( Energy Meter with RS485 ) | ||
| Rated Current | 5(80)A | ||
| Reference Voltage | 220/230V | ||
| Frequence | 50/60Hz | ||
| Display Mode | LCD 5+1=99999.9kWh(Double Row) | ||
| Accuracy | 1 | ||
| Impulse Constant | 1000imp/kWh | ||
| Start Current | 0.004Ib | ||
| Connection Mode | Direct mode | ||
| Communication& | / | ||
| Protocol | |||
| Power Consumption | ≤8VA ≤0.4Wh | ||
| Material of meter case | PC | ||
| Size | 100.5*36.5*65mm | ||
| Certificate | CE ISO9001 | ||
| Standard | IEC62052-11, IEC62053-21 | ||
| 2.Functions and characteristic | |||
|
A. Impulse connection: According with SO Din-rail43864 standard, (27V, 27mA), Impulse width=80ms,connect to terminal 20&21 Limits of values:60 V D C,max 50mA
| |||
| B. Consumer Reset: Pressing on RESET key last 5 seconds to 10seconds by your finger, and the best hold time is about 7 seconds. Well then reset successfully. Otherwise, in order to measure correctly, the consumer who just can reset the first display line or not second display line | |||
| C. Display many parameters, like date, time, current ,voltage,frequency, power factor etc | |||
| D. Display with backlight when power off(optional) | |||

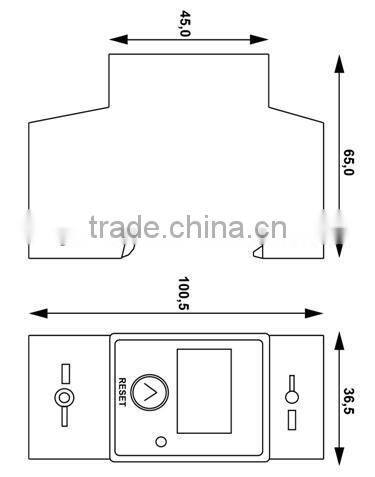

| 3.Outer and mount dimension: | |||
| | |||

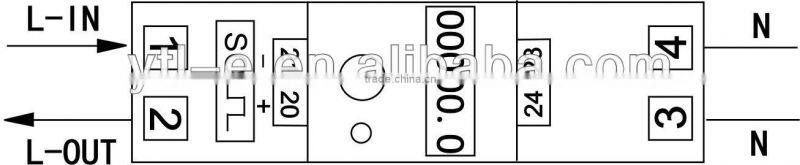

| 4.Wiring diagram: | |||
| | |||
| 5.Transaction Information | |||
| MOQ | 500pcs | ||
| Sea Port | Shanghai | ||
| Payment Terms | TT LC | ||
| Supply Ability | 500,000pcs per month | ||
| Delivery time | 20-25 days | ||
| Normal Package | White box for Kilowatt hour meter | ||
If you are interested in our single phase DIN-Rail Kilowatt hour meter, pls feel free to contact us at any time.
