Three phase multifunction smart electric meters
As a professional manufacturer, YTL designs and produces energy meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.
YTL is devoted to develop and design all types of electronic energy meters, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | ||
Product Name |
Three Phase Multifunction smart electric meters | |
Installation type |
Suspension type ( smart electric meters ) | |
Module No. |
D526002 ( smart electric meters ) | |
Brand |
YTL ( smart electric meters ) |
|
Rated Current |
6A | |
Reference Voltage |
3*220/380V | |
Frequence |
50/60Hz | |
Display Mode |
LCD 6+2 | |
Accuracy |
1.0 | |
Impulse Constant |
100/200/400/1600imp/kWh | |
Start Current |
0.004Ib | |
Connection Mode |
direct mode | |
|
Communication& Protocol |
/ | |
Power Consumption |
IEC standard | |
Communication |
IR(IEC62056-21), RS485(IEC62056-21) | |
Size |
230*170*72mm | |
Certificate |
ISO9001, CE | |
Standard |
||
2.Functions and characteristic | ||
A. Peak, off-peak,shoulder,time consumption vale three-rate watt-hour meter. | ||
B. Show various parameter by LCD | ||
C. The function for testing short of phase | ||
D. It can set time-interval, time, and read out the watt-hour of each time-interval | ||
3.Outer and mount dimension: | ||
| | ||

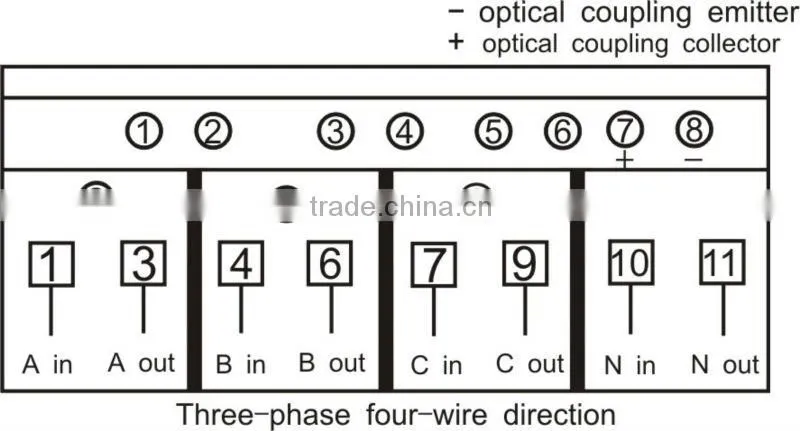

4.Wiring diagram: | ||
| | ||
5.Transaction Information | ||
MOQ |
500pcs | |
Sea Port |
Shanghai | |
Payment Terms |
TT prepayment | |
Supply Ability |
500,000pcs of energy meter per month | |
Delivery time |
25 days | |
Normal Package |
white or colorful box | |
