Product Details
Place of Origin: | Zhejiang, China | Brand Name: | YTL | Model Number: | D524001 |
Display Type: | Digital Only | Phase: | Single Phase | Measuring Energy Range: | 5(20)A, 10(40)A, 20(80)A |
Accuracy Class: | 1.0, 2.0 | Output Voltage: | 110V, 220V | Operating Temperature: | -25-70℃ |
Dimensions: | 166*109*62 |
Product Description
Three Phase prepayment power meters
As a professional manufacturer, YTL designs and produces prepayment power meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications
YTL is devoted to develop and design all types of prepayment power meters , concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | ||
Product Name | Three Phase prepayment power meters | |
Installation type | front-mounted | |
Module No. | D524001( prepayment power meters ) | |
Brand | YTL ( prepayment power meters ) | |
Rated Current | 5(45) A, 5(50) A, 5(80) A | |
Reference Voltage | 3*220/380V | |
Frequence | 50-60Hz | |
Display Mode | LCD 6+2 = 999999.99kW | |
Accuracy | 1.0 | |
Impulse Constant | 1000imp/kWh | |
Start Current | 0.004Ib | |
Connection Mode | direct mode | |
Communication& Protocol | RS485, IR | |
Power Consumption | ≤1VA ≤1W | |
Material of meter case | ABS | |
Size | 220.4*138*63.5mm | |
Certificate | CE, ISO9001 | |
Standard | IEC62052-11, IEC62053-21 | |
2.Functions and characteristic | ||
A. No need to send anyone to read the meter. The user need to charge the meter via IC card before using. It could solve the problem of fees issue of the scattered residents, temporally users and always debts users. The software could record the users' information, it will be very convenient to manage the all users. | ||
B. It opens the switch when the electricity is zero and reminds user to recharge. After recharging the electricity, it close switch. There are three ways to close switch: 1.insert card 2. press keys3. automatic closing switch one minute later. These ways can be set through infrared and RS485 communication. | ||
C. It opens switch when the power is over limit: The ways are same as point 2. But it has to be less than the times of over power limit of switch opening. | ||
D. Warning threshold of balance electricity: The threshold is for electricity warning (set through infrared or RS485 communication). | ||
E. It can prevent from the electricity energy accumulated: the recharge value can’t exceed the threshold accumulated value of preset .Sum of The recharge value and balance value can’t exceed the limit value of the meter(999999.99KWh) | ||
F. After power-off, it can keep the total electricity, Remain electricity, impulse quantity ,and other data can be saved synchronously when the meter works. | ||

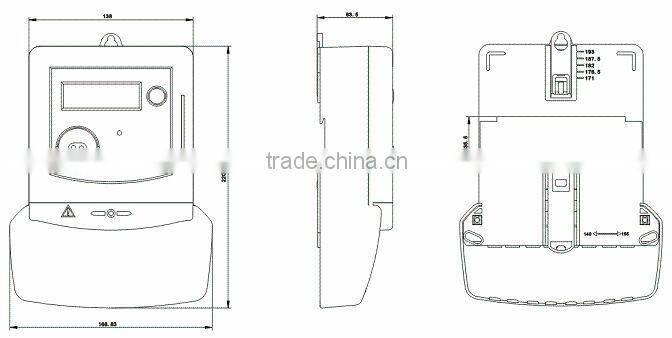

3.Outer and mount dimension: | ||
4.Wiring diagram: | ||
5.Transaction Information | ||
MOQ | 300pcs | |
Sea Port | Shanghai or Ningbo port | |
Payment Terms | T/T, L/C | |
Supply Ability | 50000pcs/month | |
Delivery time | 20-25 days after payment | |
Normal Package | White or color box for prepayment power meters | |
If you are interested in our three phase prepayment power meters, pls feel free to contact us at any time.
