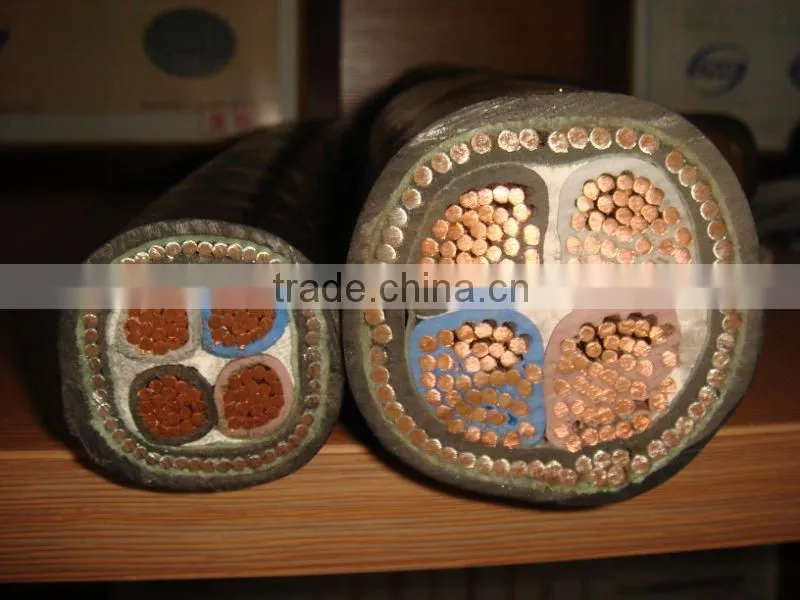

YJV/YJY Low Voltage Underground Power Cable 3x16mm2
US$ 0.10 - 99.00
MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Bendakang
Model Number:
YJV/YJY, r02v,bs7889
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
11KV Cable Wire Electrical XLPE Compound XLPE CableUS$ 0.1 - 99MOQ: 500 Meters -
TUV Certificate UV Resistance Halogan Free Tinned Copper Solar KabelUS$ 0.10 - 99.00MOQ: 500 Meters
-
Bare Copper XLPE Insulated Solor Cable 0.6/1KVUS$ 0.10 - 99.00MOQ: 500 Meters
-
0.6/1KV Tinned Copper LSZH Solor PV Cable 2*4mm2US$ 0.10 - 99.00MOQ: 500 Meters
-
Bendakang High Quality Copper Cable Electric Cable Power CableUS$ 0.10 - 99.00MOQ: 500 Meters
Place of Origin
Guangdong, China
Brand Name
Bendakang
Model Number
YJV/YJY, r02v,bs7889
Type
Insulated
Application
Underground
Conductor Material
Copper
Conductor Type
Other, solid or stranded
Insulation Material
Other, XLPE
YJV/YJY Low Voltage Underground Power Cable 3x16mm2
Specifications:
1. underground cable specifications
2. high quality affordable cost
3. IEC/BS/VDE
4. free sample available
5. full test lab
6.Application:
It applies to electrical power transmission and distribution lines with AC rated voltage UO/U up to and including 0.6/1KV. For outdoor and indoor installation in damp and wet locations, laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying, as well as in locations susceptible to sliding.
- Voltage rating: 0.6/1kV
- Standard applied: IEC60502, BS7870, GB/T12706
- Max. working temp.: 90°C, can be 110°C as per requirement
- Max. Short-circuit temperature of the conductor shall not be exceeding 250°C (Max. sustaing period not exceeding 5S)
- Conductor: Class 1/2 annealed bare copper solid or strands
- Insulation: XLPE
- Outer sheath: PVC
- Armore: STA (Remark: for single core the armore should be ATA)
- Cores: 1C, 2C, 3C,4C,5C, 3C+1E,4C+1E,3C+2E
- Cross section area: 1.5 ~ 630 sqmm
- Color: Black or as per requirement
- Bending radius: Not less than 15 times of the cable's OD
- Test voltage: 3.5kV/5min
- Packing: Wooden drum or as per requirement
- Certification: ISO9001/ISO14001/OHSMS18001/CE/CB/CCC/SAA
- OEM: Available
- BDK cables has very good sales over the world, enjoying a very good reputation based on top quality and most competitive price and best service.
- Remark: The cable can be of flame retardance, fire resistance and environment friendly or other property
Parameter:
| S/N | Spec. | Conductor construction |
Thickness of Insulation/Sheath(mm) |
| 1 | 1×1.5mm2 | 1/1.38mm | PVC/0.8/1.8 |
| 2 | 1×2.5mm2 | 1/1.78mm | PVC/0.8/1.8 |
| 3 | 1×4.0mm2 | 1/2.25mm | PVC/1.0/1.8 |
| 4 | 1×6.0mm2 | 1/2.76mm | PVC/1.0/1.8 |
| 5 | 1×1.5mm2 | 7/0.52mm | PVC/0.8/1.8 |
| 6 | 1×2.5mm2 | 7/0.67mm | PVC/0.8/1.8 |
| 7 | 1×4.0mm2 | 7/0.85mm | PVC/1.0/1.8 |
| 8 | 1×6.0mm2 | 7/1.04mm | PVC/1.0/1.8 |
| 9 | 1×10mm2 | 7/1.35mm | PVC/1.0/1.8 |
| 10 | 1×16mm2 | 7/1.70mm | PVC/1.0/1.8 |
| 11 | 1×25mm2 | 7/2.14mm | PVC/1.2/1.8 |
| 12 | 1×35mm2 | 7/2.52mm | PVC/1.2/1.8 |
| 13 | 1×50mm2 | 19/1.78mm | PVC/1.4/1.8 |
| 14 | 1×70mm2 | 19/2.14mm | PVC/1.4/1.8 |
| 15 | 1×95mm2 | 19/2.52mm | PVC/1.6/1.8 |
| 16 | 1×120mm2 | 37/2.03mm | PVC/1.6/1.8 |
| 17 | 1×150mm2 | 37/2.25mm | PVC/1.8/1.8 |
| 18 | 1×185mm2 | 37/2.52mm | PVC/2.0/1.8 |
| 19 | 1×240mm2 | 61/2.25mm | PVC/2.2/1.9 |
| 20 | 1×300mm2 | 61/2.52mm | PVC/2.4/2.0 |
| 21 | 1×400mm2 | 61/2.88mm | PVC/2.6/2.1 |
| 22 | 1×500mm2 | 61/3.20mm | PVC/2.8/2.2 |
| 23 | 1×630mm2 | 91/2.97mm | PVC/2.8/2.3 |
| 24 | 1×800mm2 | 127/2.85mm | PVC/2.8/2.4 |
| 25 | 1×1000mm2 | 127/3.20mm | PVC/3.0/2.5 |
| 26 | 2×1.5mm2 | 1/1.38mm | PVC/0.8/1.8 |
| 27 | 2×2.5mm2 | 1/1.78mm | PVC/0.8/1.8 |
