TUV Certificate UV Resistance Halogan Free Tinned Copper Solar Kabel
Specifications
1. Solar Cable
2. Electron-beam cross-linked compounds
3. Easy to strip
4. Halogen free
5. Full test lab
About photovoltaic power energy
It is a kind of completely zero emission clean energy and also a kind of realistic energy close to scale application. It has many advantages such as safety and reliability without noise and pollution, etc. The energy can be obtained anywhere without geographic restrictions and no need for consuming fuel. Also it has low failure rate and easy for maintenance. There advantages are beyond conventional power generation and other power generation method. In order to meet the growing demands for energy, solar energy is rapidly rising as one of the most feasible options among the current available energy.

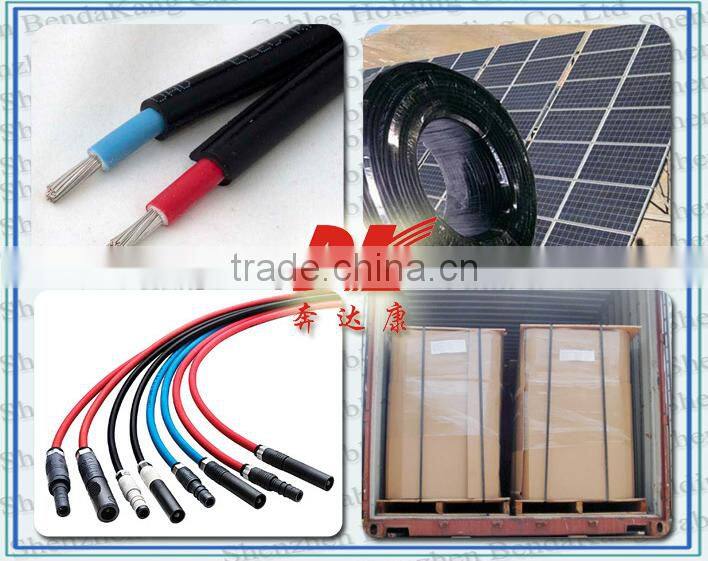

Photo reference:
Construction
- Conductor: Tinned fine copper strands, according to VDE 0295 / IEC 60228, class 5
- Insulation: Polyolefin Copolymer electron-beam cross-linked
- Outer sheath: Polyolefin Copolymer electron-beam cross-linked
- Sheath colour: Black or as per requirement
Technical specification
- Nominal voltage: U0 /U = 600 / 1000 V AC, 1000 / 1800 V DC
- Test voltage: 4000 V, 50 Hz, 5 min.
- Temperature rating:
- 40 °C up to + 125 °C
- 40 °F up to + 257 °F
- Ambient temperature: > 25 years (TüV)
- 40 °C up to + 90 °C
- 40 °F up to + 194 °F
- Max. short circuit temperature: 280 °C, + 536 °F
- Bending radius: ≥ 4 × outer diameter
- Standards: IEC60332, IEC61034, etc.
Advantages
- Electron-beam cross-linked compounds
- High mechanical resistance
- Resistant to heat, low temperature, oil, abrasion, UV, ozone and weathering.
- Hydrolysis resistant
- High temperature resistant, the materials do not melt or flow
- Good cold flexibility
- Very long life cycle
- Compatible to all popular connectors
- No corrosive or toxic gases are produced
- Little smoke is generated in the event of a fire
- Easy to strip
Technical Data:
| Cross area mm2 | Conductor construction | Conductor DC resistance Ω/km |
Conductor Dia. mm |
Cable dia. mm |
Cable weight kg/km |
| 1.5 | 30/0.25mm | 13.7 | 1.6 | 5.5 | 41.5 |
| 2.5 | 49/0.25mm | 8.21 | 2 | 5.9 | 53.2 |
| 4.0 | 56/0.3mm | 5.09 | 2.6 | 6.5 | 76.9 |
| 6.0 | 84/0.3mm | 3.39 | 3.6 | 7.7 | 102.3 |
| 10 | 84/0.4mm | 1.95 | 4.7 | 9.4 | 152.3 |
| 16 | 126/0.4mm | 1.24 | 5.8 | 10.9 | 217.7 |
| 25 | 196/0.4mm | 0.795 | 7.3 | 12.4 | 320.6 |
| 35 | 276/0.4mm | 0.565 | 9.2 | 14.7 | 427.5 |
