3C+E SWA Armored Power Cable 0.6/1kv
Application:
It applies to electrical power transmission and distrbution lines with AC rated voltage U0/U up to and including 0.6/1KV , For outdoor and indoor installation in damp and wet locations,laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying, as well as in locations susceptible to sliding.
Specifications:
1.Type: BS6346,VV32
2.Voltage rate: 0.6/1KV
3.Cores:1C,2C,3C, 4C , 5C ,3C+1E,4C+1E,3C+2E
4.Range of Nominal cross section:1.5mm2~630mm2
5.Constructions:
conductor:Class 1/2 annealed bare copper solid or strands
Insulation:PVC
Armore:SWA(Remark: for single core the armor should be AWA)
Sheath:PVC
6.Max operating Temperatur: 70°C, can be 90°C,110°C as per requiremen
7.Packing: Wooden drum or as per requirement
8.Production Capacity:20kilometer/day
9.MOQ:1000meters
10.Remark: the cable can be of flame retardence, fire resistence and environment friendly or other property

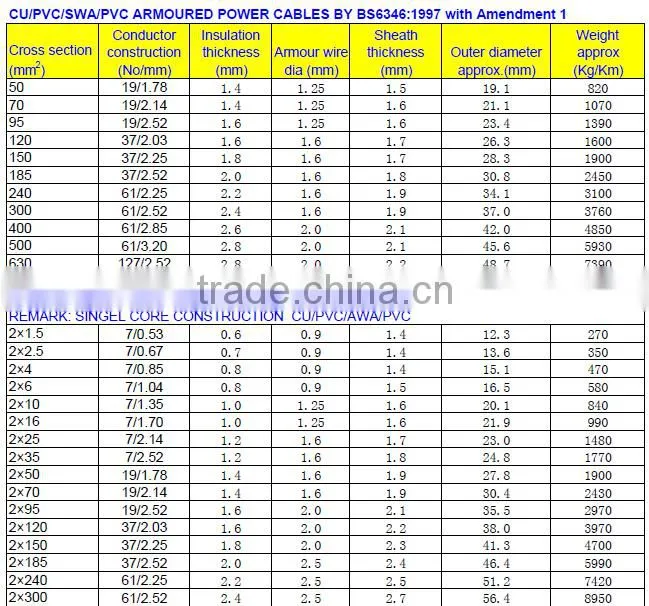

PARAMETER:
Company Overview:
Test Equipment:
Certificate:
