Medium Voltage XLPE Insulated and PVC Sheathed Armored Power Cable
Specifications:
1. Type:YJV22 , YJV32
2. Voltage rate:3.6/6KV ;6/6KV; 6/10KV;8.7/10KV,8.7/15KV,12/20KV;18/20KV;18/30KV;21/35KV;26/35KV
3. Range of Nominal cross section: Single core:25mm2~630mm2 ; 3cores:25mm2~400mm2
4. Application: It applies to transmission and distribution lines with rated voltage from 3.6/6kv to 26/35kv, to be laid directly in ground, outdoors ,indoors and in cable ducts.
5.Standard: IEC60502 ,BS6622,VDE0276,GB/T12706
6. Conductors:
conductor:Class 2 annealed bare copper strands
Core shield: semi-conducting compound + copper tape metalic screen
Insulation:XLPE
Armore:1core: ATA, AWA, 3cores:STA,SWA
sheath:PVC
7. Max operating temperature : 90°C, can be 110°C as per requirement
8.:MOQ:500~1000 meters for 8.7/15KV ,3000 meters for other voltage

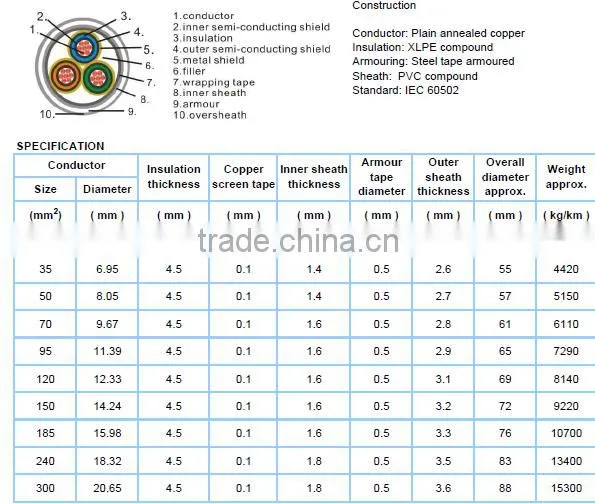

Technical Data:

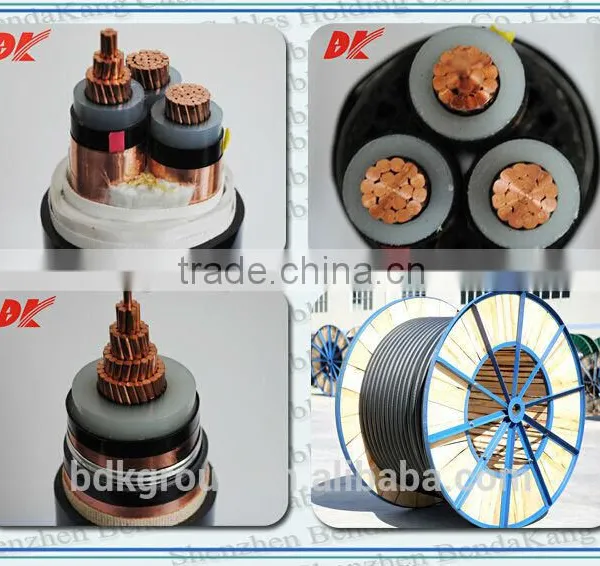

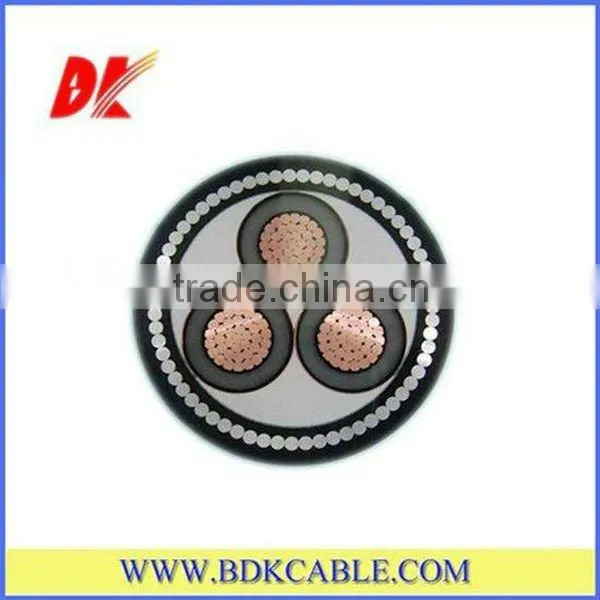

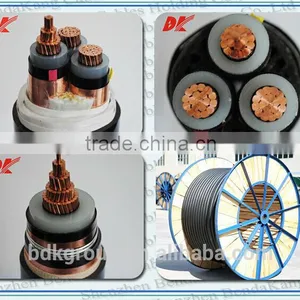

Product Photo:
Certificates:
