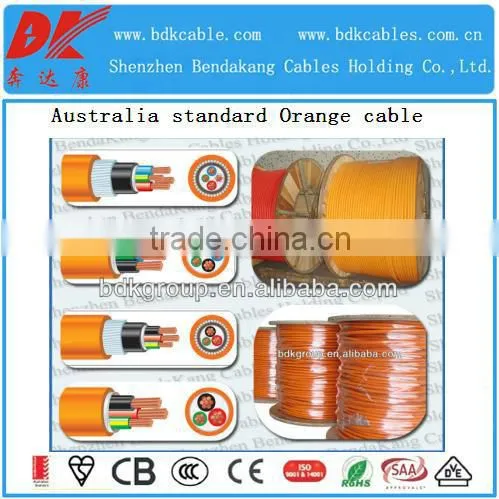

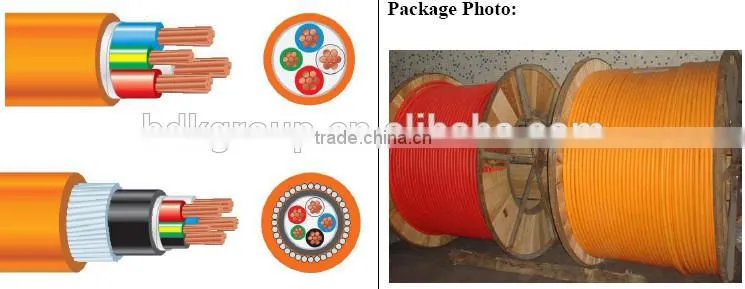

Orange Circular power cable
4 core+earth, circular, V-90 insulated, PVC sheathed to AS/NZS 5000,
copper conductors, 90°C.
1.5 to 6mm2 450/750V to AS/NZS 5000.2
10mm2-240mm2 600/1000V to AS/NZS5000.1
Standard Colours
Core: Red, White, Blue, Black plus Green / Yellow
Sheath: Orange
Technical Specification oOrange Circular power cable
| Orange cable Code | Cond.Area mm2 | Cond.Construction mm | Insulation Thickness mm | Av.Sheath Thickness mm | Overall Dimensions mm | Weight Kg per 100 Meters | |||
| Power | Earth | Power | Earth | Power | Earth | ||||
| OC4E7050V | 1.5 | 1.5 | 7/0.50 | 7/0.50 | 0.6 | 0.6 | 1.2 | 11.2 | 18 |
| OC4E7067V | 2.5 | 2.5 | 7/0.67 | 7/0.67 | 0.7 | 0.7 | 1.3 | 13.1 | 27 |
| OC4E7085V | 4 | 2.5 | 7/0.85 | 7/0.67 | 0.8 | 0.7 | 1.4 | 14.7 | 36 |
| OC4E7104V | 6 | 2.5 | 7/1.04 | 7/0.67 | 0.8 | 0.7 | 1.4 | 16 | 46 |
| OC4E7135V | 10 | 4 | 7/1.35 | 7/0.85 | 1 | 1 | 1.8 | 20.2 | 82 |
| OC4E7170V | 16 | 6 | 7/1.70 | 7/1.04 | 1 | 1 | 1.8 | 22.3 | 114 |
| OC4E19135V | 25 | 6 | 19/1.35 | 7/1.04 | 1.2 | 1 | 1.8 | 24.7 | 138 |
| OC4E19153V | 35 | 10 | 19/1.53 | 7/1.35 | 1.2 | 1 | 1.8 | 27.4 | 182 |
| OC4E19178V | 50 | 16 | 19/1.78 | 7/1.70 | 1.4 | 1 | 1.8 | 31.6 | 245 |
| OC4E19214V | 70 | 25 | 19/2.14 | 19/1.35 | 1.4 | 1.2 | 2 | 36.4 | 345 |
| OC4E37178V | 95 | 25 | 37/1.78 | 19/1.35 | 1.6 | 1.2 | 2.1 | 42.1 | 465 |
| OC4E37203V | 120 | 35 | 37/2.03 | 19/1.53 | 1.6 | 1.2 | 2.2 | 47.6 | 580 |
The Main Manufacturing Procedure
1,Copper wire drawing and annealing 2,Copper wire stranding 3,PVC insulation extruding 4,Cores Twisting 5,Outer sheath extruding and labeling 6,Spooling
Ptroduction Machine
Main Quality Inspection Equipment
Spark Tester,Heating aging Chamber,High resistance machine,Oxygen index equipment ,Partial discharge inspection instruments,Fireproff testing device,High-Power voltage withstand tester,No-rotor vulkameter,Pull tester, Analytical balance,Direct Current bridge.,Plastic tester,Projector,Punch machine,Cross-linked cutting machine,etc.
Shipment specifications
Customers Activities
Some of the project customers and cooperative clients
Certificates
ISO9001/ISO14001/OHSMS1800,CCC,CE,CB,BS test certificate,SAA
FAQ
1) Q:Are you a factory or trading company?
A: We are a 17 years factory in Shenzhen, China, our company is " China's Hi-Tech Enterprise" and our cable products titled "China Famous Trademark"
2) Q:Where is your factory located? How can I visit there?
A: Our factory is in Shenzhen City, Guangdong Province, near Hongkong, it is very convenient to visit us, we warmly welcome all distinguished guests to visit our factory industrial zone
3) Q: How about your factory's quality control?
A: Quality is our life. We take scientific methods during manufacturing and take strict tests to ensure that every meter of our cable is good quality. Our company have certified with ISO, CB, CE, SAA and as per standards of IEC, UL, BS, VDE, AS/NZS or other standards required.
4) Q:How does your factory do regarding quality control?
A:Our company has gained the following certificates:ISO9001,ISO14001,OHSMS18001,CB,CE,SAA,etc
5) Q:Can I get some free sample?
A: The answer is yes, we are very glad to offer free samples to distinguished guests who are willing to establish sincere business relationship with us.
