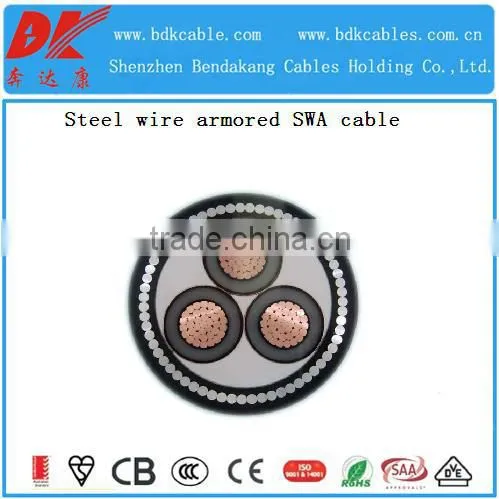

XLPE/SWA/PVC multicore armoured power cable to BS5467
Conductor: Class 2 stranded plain copper conductor
Insulation: XLPE (Cross-Linked Polyethylene)
Bedding: PVC (Polyvinyl Chloride)
Armouring: Single Core: AWA (Aluminium Wire Armour)
Multi Core: SWA (Steel Wire Armour)
Sheath: PVC (Polyvinyl Chloride)
Sheath Colour: Black
Voltage Rating: 600/1000V
Temperature Rating: 0degC to +90degC
Core Identification:
1 Core: Brown
2 Cores: Brown, Blue
3 Cores: Brown, Black, Grey
4 Cores: Blue, Brown, Black, Grey;
5 Cores: Green/Yellow, Blue, Brown, Black, Grey
Alternative core identification: White Cores with Black numbers
Standards: BS5467, IEC 60502
Application:
Armoured cables for use in fixed installations in industrial areas, buildings and similar applications. They may be installed in air, on trays, clipped direct or be buried in the ground.
