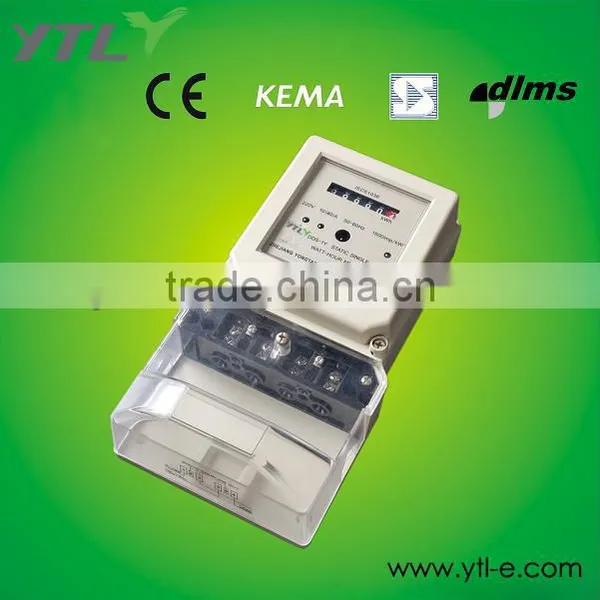

Single phase kilowatt meter
As a professional manufacturer, YTL designs and produces kilowatt meter which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.
YTL is devoted to develop and design all types of kilowatt meter , concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | |
Product Name |
single phase kilowatt meter |
Installation type |
suspension |
Module No. |
D129002 (kilowatt meter) |
Brand |
YTL (kilowatt meter) |
Rated Current |
60A |
Reference Voltage |
220V |
Frequence |
50/60Hz |
Display Mode |
Roller register |
Accuracy |
0.5,1.0 |
Impulse Constant |
1600imp/kWh |
Start Current |
0.004Ib |
Connection Mode |
Direct mode, CT mode |
|
Communication& Protocol |
IEC1107 |
Power Consumption |
IEC standard |
Material of meter case |
ABS |
Size |
220*107*65mm |
Certificate |
/ |
Standard |
IEC62052-11,IEC62053-21 |
2.Functions and characteristic | |
A. Interface baud is 1200Bits. | |
B. Meter with RF standard interface, can send all energy data | |
C. Low power consumption, all data can save even if power off | |
D. Communication standard meet IEC1107, distance 30m. | |

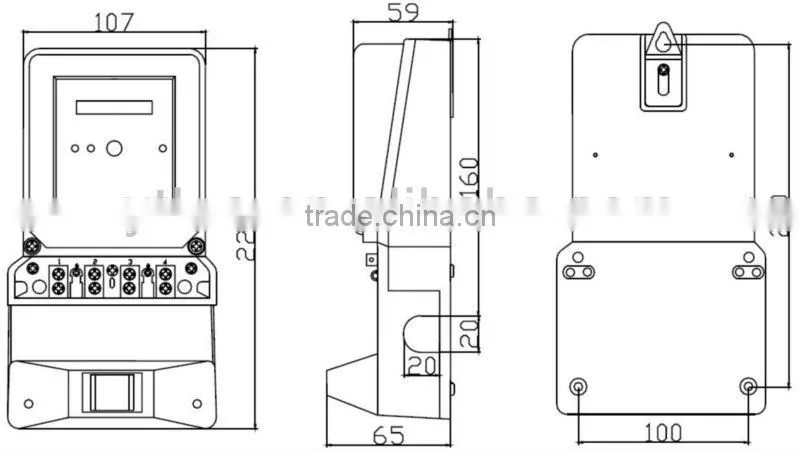

3.Outer and mount dimension: | |
|
| |
|
4.Wiring diagram:
| |
| 5.Transaction Information | |||
| MOQ | 500pcs | ||
| Sea Port | Shanghai | ||
| Payment Terms | TT LC | ||
| Supply Ability | 500,000pcs per month | ||
| Delivery time | 20-25 days | ||
| Normal Package | white box for kilowatt meter | ||
If you are interested in single phase kilowatt meter, pls be free to contact us at any time.
