Specifications
watt meter1. high accuracy, high reliability
2. high stability, low power consumption
3. preventing creep, light

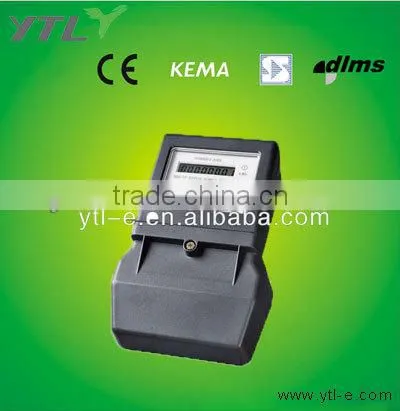

single phase watt meter
As a professional manufacturer, YTL designs and produces e din rail smart meter which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.
YTL is devoted to develop and design all types of electronic din rail smart meter , concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | ||
Product Name |
single phase watt meter | |
Installation type |
Suspension type | |
Module No. |
D125001 ( watt meter ) | |
Brand |
YTL ( watt meter ) | |
Rated Current |
1.5(6)A,5(30)A,10(40)A,20(80)A,5(100)A | |
Reference Voltage |
110V,220V,230V,240V | |
Frequence |
50/60HZ | |
Display Mode |
LCD 6+2 | |
Accuracy |
1.0 | |
Impulse Constant |
12800imp/kWh,800/1600/3200/6400imp/kWh | |
Start Current |
0.4%Ib | |
Connection Mode |
CT type, Direct type | |
|
Communication& Protocol |
/ | |
Power Consumption |
≤0.6W, ≤0.3VA | |
Material of meter case |
ABS | |
Size |
153*118*50mm | |
Certificate |
ISO9001,CE | |
Standard |
IEC62052-11,IEC62053-21 | |
2.Functions and characteristic | ||
|
A. This electronic static single-phase watt-meter is an ideal product with special integrated circuit and SMT production technology. It enjoys: high accuracy, high reliability, high stability, low power consumption, preventing creep, light and compact, strong overload capacity. It is used for metering 50Hz single-phase alternating current energy, and it is a new product for replacing traditional inductance watt-hour meter. | ||

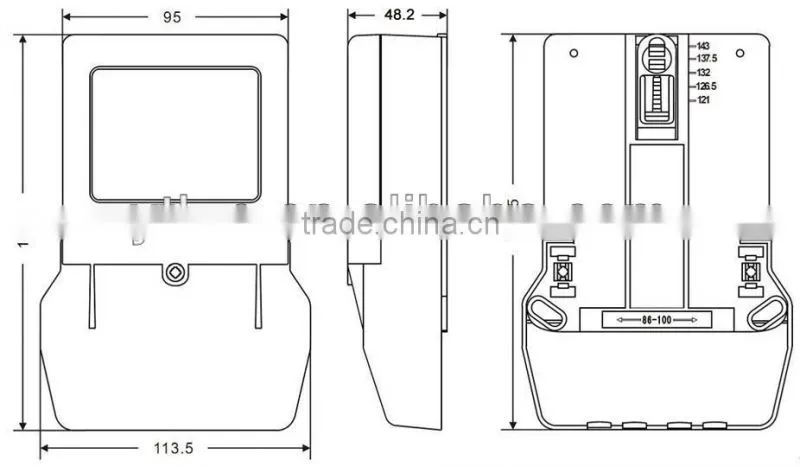

3.Outer and mount dimension: | ||
| | ||
4.Wiring diagram: | ||
| ||
5.Transaction Information | ||
MOQ |
500pcs | |
Sealing Port |
Shanghai | |
Payment Terms |
T/T,L/C | |
Supply Ability |
50000/Month | |
Delivery time |
25 days after receive prepayment | |
Normal Package |
white paper box with watt meter | |
