Specifications
Single Phase prepaid energy meter1-Work after charge the IC card to the meter
2-IR, RS485 communication
3-Easy to manage

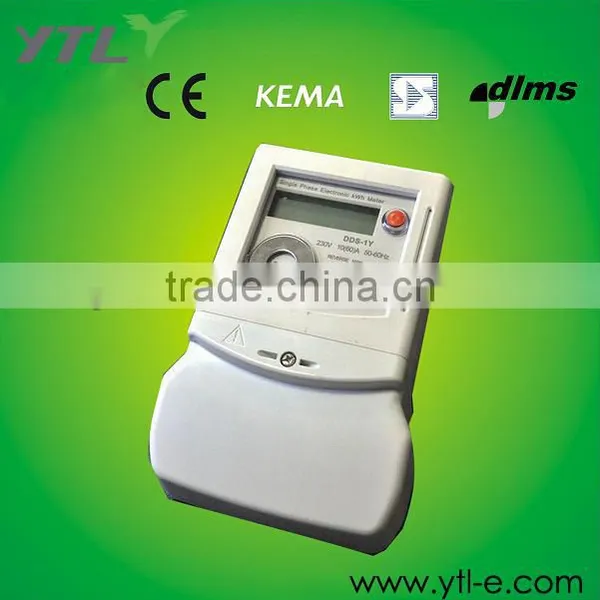

Single phase prepaid energy meters
As a professional manufacturer, YTL designs and produces prepaid energy meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.
YTL is devoted to develop and design all types of prepaid energy meters, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | ||
Product Name |
single phase prepaid energy meters | |
Installation type |
Suspension type | |
Module No. |
D124001 ( prepaid energy meters ) | |
Brand |
YTL ( prepaid energy meters ) | |
Rated Current |
5(60)A | |
Reference Voltage |
240V | |
Frequence |
50-60Hz | |
Display Mode |
LCD | |
Accuracy |
1.0 | |
Impulse Constant |
1000imp/kWh | |
Start Current |
0.004Ib | |
Connection Mode |
direct mode | |
|
Communication& Protocol |
IR, RS485 | |
Power Consumption |
Modbus | |
Material of meter case |
PC | |
Size |
105*54.5*171.5mm | |
Certificate |
CE | |
Standard |
IEC 62052-11 2003 IEC62053-21 2003 GB/17215.321-2008 | |
2.Functions and characteristic | ||
A. Alarm indicator:when the electricity consumption reaches to the seted kWh value, the red indicator will flash and the backlight lights and remind the user to buy electricity. | ||
B. Relay OFF indication:when the left kWh is 0, relay will turn off and LCD indicate the sign. | ||
C. Relay On indication:when user buy electricity again, the relay will turn on and LCD indicate the sign. | ||
| ||

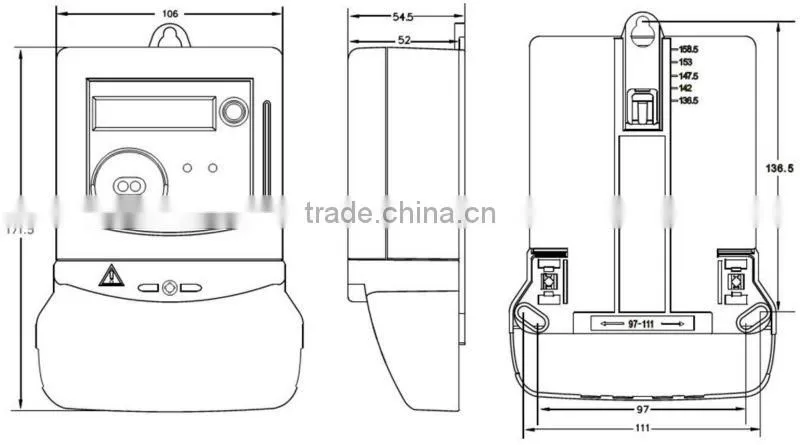

3.Outer and mount dimension: | ||
| | ||
4.Wiring diagram: | ||
| | ||
5.Transaction Information | ||
MOQ |
500pcs | |
Sea Port |
Shanghai | |
Payment Terms |
TT prepayment | |
Supply Ability |
500,000pcs of energy meter per month | |
Delivery time |
20-25 days | |
Normal Package |
white box or colorful box for prepaid energy meters | |
If you are interested in our single phase prepaid energy meters, pls be free to contact us at any time.
