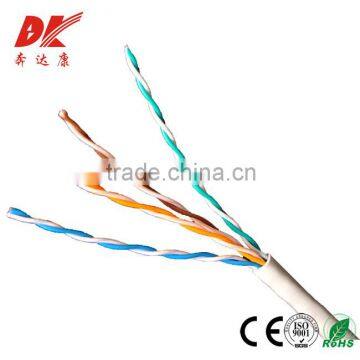

Utp Cat5e Lan Cable/china Manufacturer/low Price

Specifications

utp cat5e lan cable/china manufacturer/low price  is one of the data cable, their description as below:

Application:

A multipair (usually 4 pair) high performance cable that consists of twisted pair conductors, used mainly for data transmission. Category 5E is recommended for all new installations, supports a frequency range of up to 100MHz and is designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet). It has the advantage of high mechanical trength,good ambient stress resistance,good electrical propertie and anti-chemical corrosion.  These cables are used by horizontal subsystem in the LAN premises distribution system, being used for the cabling connection between the communication outlet terminal of the system working area and the distributing frame of cross connection closet. The cable is laid in cable gland cable conduit and ceiling or floor interlayer, to make the cable support the application of voice, data, text, image, video, etc.

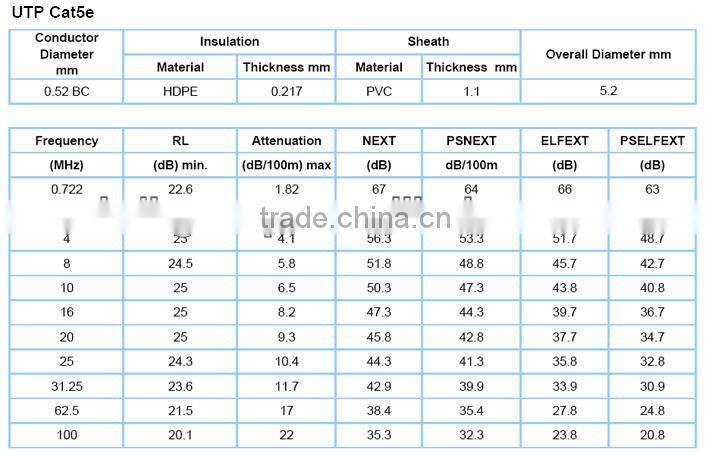

1.  Max. transmission frequency:  Cat3: 16MHz;  Cat5/Cat5e: 100MHz; Cat6: 250MHz

2. Conductor: Solid bare copper; Cat3/Cat5: 0.5mm; Cat5e: 0.52mm; Cat6: 0.60mm

3. Insulation:   HDPE (High Density Polyethylene)

4. Sheath:  PVC

5. Standard applied:  ISO/IEC11801, TIA/EIA 568B

6. Remark: The cable can be of flame retardance, fire resistance and other property

7.Sheath Colour: Grey

8.Temperaure Rating: 70°

9.Minimum Bending Radius: 90°

10.Core Identification:

     4 Pairs: Blue + White/Blue, Orange + White/Orange, Green + White/Green, Brown + White/Brown.

Main manufacturing procedure:

Copper wire drawing and annealing --> Copper wire stranding --> Outer sheath extruding and labeling --> Spooling

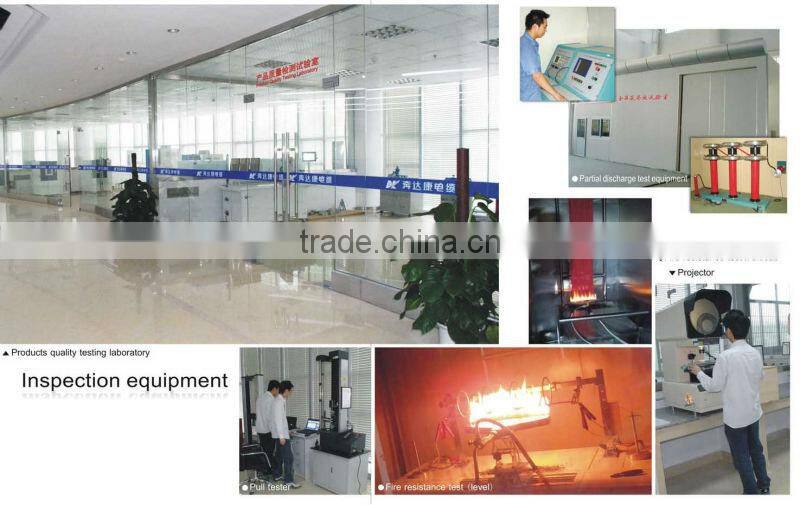

Main Quality Inspection Equipment:

Sparker tester,Heating aging Chamber,High resistance machine, Oxygen index equipment, Partial discharge inspection instruments, Fireproof testing device,High-power voltage withstand tester,No-rotor Vulkameter,Pull tester,Analytical balance,Direct current bridge,Plastic tester,Projector, Punch machine,Cross-linked cutting machine,etc.

Production machine

Quality Control

Shipment Photos

Customers Activity

Company Overview

Certificates

If you would like to get more information, please directly to contact us immediately.
