1.Type:Cat3, Cat5, Cat5e, Cat6 LAN cable
2.Max. transmission frequency:
Cat3: 16MHz; Cat5: 100MHz; Cat5e: 100MHz and support the duplex application; Cat6: 250MHz
3.Pairs:2~50 pairs, 2 pairs and 4 pairs is mostly supplied
4.Conductor size (solid bare copper):
Cat3: 0.50mm; Cat5: 0.50mm;
Cat5e: 0.52mm; Cat6: 0.60mm
5.Application
These cables are used by horizontal subsystem in the LAN premises distribution system, being used for the cabling connection between the communication outlet terminal of the system working area and the distributing frame of cross connection closet. The cable is laid in cable gland cable conduit and ceiling or floor interlayer, to make the cable support the application of voice, data, text, image, video, etc.
6.Standard:ISO/IEC 11801, ANSI/EIA/TIA-568B, AS/NZS3080

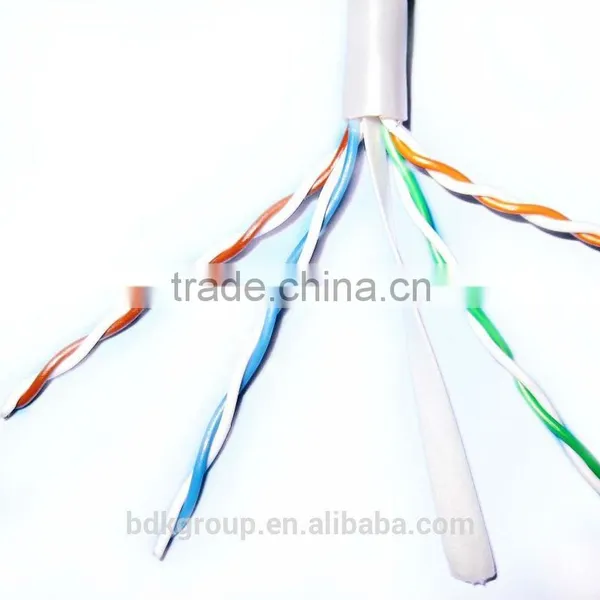

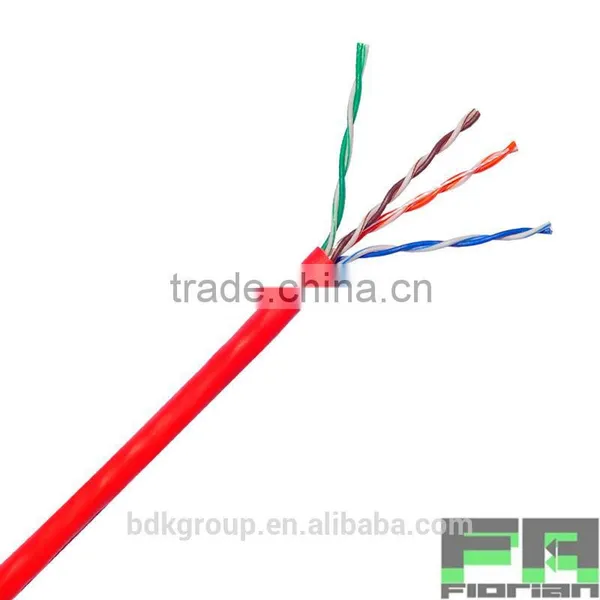

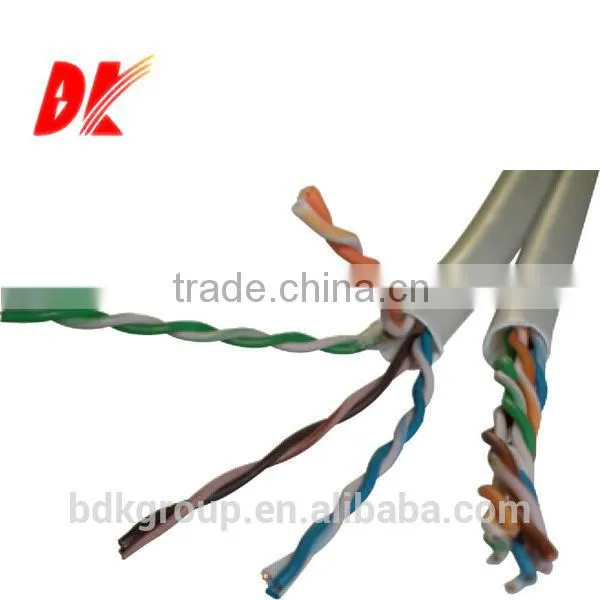

7.Constructions
Conductor: solid bare copper
Insulation: HDPE
Sheath: PVC
