Single Phase DIN Rail Electricity Power Meter

Single Phase DIN Rail Electricity Power Meter photo-1
Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YTL, YTL(power meter)
Model Number:
D111013, DDS-1Y-L
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name YTL, YTL(power meter)
Model Number D111013, DDS-1Y-L
Display Type Digital Only
Phase Single Phase
Measuring Energy Range 5(80)A, 10(30)A;10(60)A; 10(100)A
Accuracy Class 1.0, 1.0
Output Voltage 220V, 110V,220V
Operating Temperature -20~50℃, -20~50℃
Dimensions 116*78*65mm

Specifications

power meter
1.Din rail mounted type meter
pact design
3. Counter display
4. kWh measurement function

single phase DIN Rail electricity power meter


1.Product Details

Product Name

 single phase four module din rail meter

Installation type

 din rail

Module No.

 D111013 ( din rail meter )

Brand

 YTL ( din rail meter )

Rated Current

 5(80)A

Reference Voltage

 220V

Frequence

 50-60HZ

Display Mode

 LCD

Accuracy

 1.0

Impulse Constant

 3200imp/kWh

Start Current

 0.004Ib

Connection Mode

 CT type

Communication&

Protocol

 /

Power Consumption

 ≤8VA  ≤0.4Wh

Material of meter case

 ABS

Size

 116*78*65mm

Certificate

 CE  ISO9001

Standard

 CE

2.Functions and characteristic

A.Active electricity measuring, without adjust under long-time work

B.Din rail mounted type meter, compact design

C.Display many parameters, like date, time, current ,voltage,frequency, power factor etc.

D Accurately measure forward and reverse energy

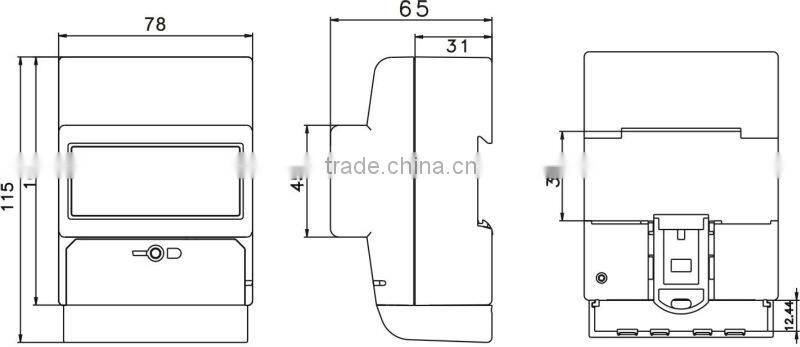

3.Outer and mount dimension:

 single phase DIN Rail electricity power meter

4.Wiring diagram:

 single phase DIN Rail electricity power meter

5.Transaction Information

MOQ

 500pcs

Sea Port

 Shanghai

Payment Terms

 TT LC

Supply Ability

 500,000pcs per month

Delivery time

 20-25 days

Normal Package





single phase DIN Rail electricity power meter



single phase DIN Rail electricity power meter



single phase DIN Rail electricity power meter
