Single Phase DIN Rail Energy Meter (with Backlight)

FOB Price

Negotiable / Piece

500 Pieces(Min. Order)

Port shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	YTL
Model Number	D112018	Display Type	Digital Only
Phase	Single Phase	Measuring Energy Range	5(32)A,5(40)A,5(45)A,5(50)A
Accuracy Class	1.0	Output Voltage	110V 120V 220V 240V
Operating Temperature	-20~50	Dimensions	1181863mm

Product Description

Single phase DIN Rail energy meter (with backlight)

As a professional manufacturer, YTL designs and produces electricity meter which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.

YTL is devoted to develop and design all types of electricity meter, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.

1.Product Details
Product Name		Single phase DIN Rail energy meter (with backlight)
Installation type		din rail
Module No.		D112018 ( energy meter )
Brand		YTL ( energy meter )
Rated Current		5(32)A, 5(45)A, 5(50)A
Reference Voltage		110V 220V 230V 240V
Frequence		50-60HZ
Display Mode		LCD5+2
Accuracy		1.0
Impulse Constant		1000imp/kWh
Start Current		0.004Ib
Connection Mode		direct mode
Communication& Protocol		/
Power Consumption		IEC standard
Material of meter case		PC
Size		1181863mm
Certificate		CE
Standard		IEC62052-11, IEC62053-21
2.Functions and characteristic
A. Only have kWh measurement
B. Impulse connection: Voltage 12~27V, current≤27mA, max length of lead: 20m Impulse width=90ms, connect to terminal 20&21 Limits of values: max 60VDC, max 50mA
C. High accuracy, high stability, high reliability
D. LCD display with blue backlight

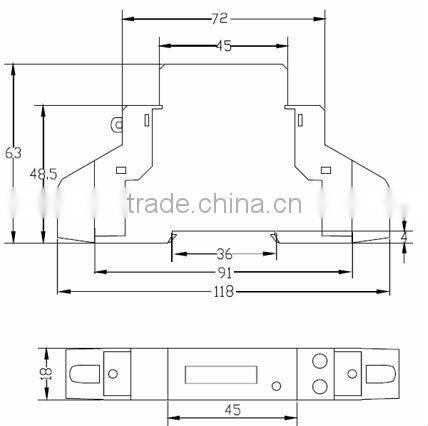

3.Outer and mount dimension:

4.Wiring diagram:

5.Transaction Information
MOQ	500PCS
Sea Port	Shanghai
Payment Terms	TT prepayment
Supply Ability	50,000pcs per month
Delivery time	20-25 days
Normal Package	white box for Electricity Meter

If you are interested in our Single phase Din Rail backlight Electricity meter, pls be free to contact us at any time.
