Panel mounted three Phase multifunction power meterThe meter has the displaying of the voltage,current,power,MD.
external CT

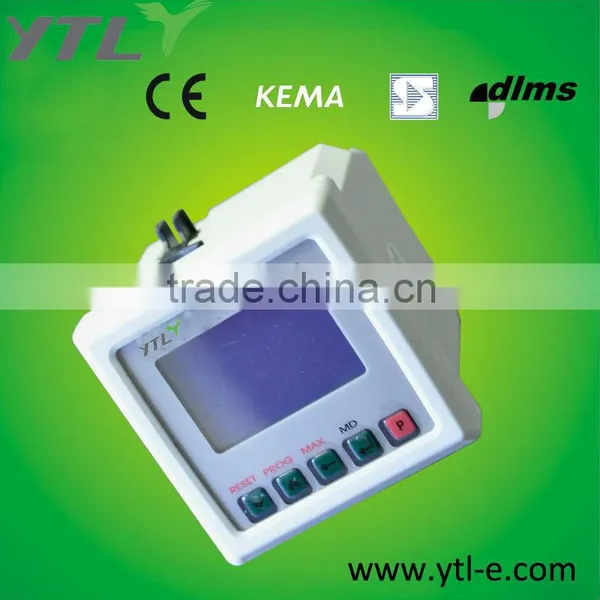

Panel mounted three Phase multifunction power meter
As a professional manufacturer, YTL designs and produces multifunction power meter which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.
YTL is devoted to develop and design all types of multifunction power meter, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | |||
Product Name |
Panel mounted three Phase multifunction power meter |
||
Installation type |
plug-in |
||
Module No. |
D547001 ( multifunction power meter ) |
||
Brand |
YTL ( multifunction power meter ) |
||
Rated Current |
1.5(5)A |
||
Reference Voltage |
50~600A |
||
Frequence |
50-60Hz |
||
Display Mode |
LCD |
||
Accuracy |
1.0 |
||
Impulse Constant |
2000imp/kWh |
||
Start Current |
0.004Ib |
||
Connection Mode |
CT type |
||
|
Communication& Protocol |
/ |
||
Power Consumption |
≤8VA ≤0.4Wh |
||
Material of meter case |
PC |
||
Size |
96.2*96.2*56mm |
||
Certificate |
CE MID ISO9001 |
||
Standard |
IEC62052-11, IEC62053-21 |
||
2.Functions and characteristic | |||
A. The operating hours& the consuming power are shown in a alternate display but have synchronous display—to be displayd at the same time on the same screen | |||
B. The meter has the function to memorize all the data when the power off .When the machine is swatched on again after the power off, the measurement data should continue running on and show the summing up amount in numbers.( Note:the meter can not show the data when power off .) | |||
C. The meter has the displaying of the voltage ,current ,power,MD | |||
D. The meter has reset function. People can reset the data through Modbus RTU communication | |||
3.Outer and mount dimension: | |||
| |||

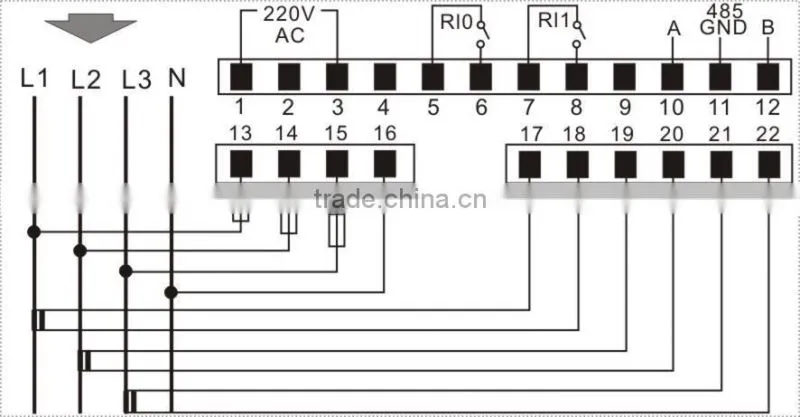

4.Wiring diagram: | |||
| |||
5.Transaction Information | |||
MOQ |
500pcs |
||
Sea Port |
Shanghai |
||
Payment Terms |
TT LC |
||
Supply Ability |
500,000pcs per month |
||
Delivery time |
20-25 days |
||
Normal Package |
White or color box for multifunction power meter |
||
| |||
If you are interested in our Panel mounted three Phase multifunction power meter, pls feel free to contact us at any time.
