Specifications
Single Phase panel mounted Smart Meter Electricity1-LED backlight display
2-time calculative,kWh display,instantaneous power
Single Phase panel mounted Smart Meter Electricity
As a professional manufacturer, YTL designs and produces Smart Meter Electricity which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.
YTL is devoted to develop and design all types of Smart Meter Electricity, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | |||
Product Name |
Single Phase panel mounted Smart Meter Electricity |
||
Installation type |
plug-in |
||
Module No. |
D149001(smart meter electricity) |
||
Brand |
YTL |
||
Rated Current |
Input 40A Max. |
||
Reference Voltage |
220/230/240V |
||
Frequence |
50-60HZ |
||
Display Mode |
LCD |
||
Accuracy |
1.0 |
||
Impulse Constant |
1000imp/kWh |
||
Start Current |
0.004Ib |
||
Connection Mode |
IEC standard |
||
|
Communication& Protocol |
IR |
||
Power Consumption |
≤8VA ≤0.4Wh |
||
Material of meter case |
PC |
||
Size |
72*72*80mm |
||
Certificate |
CE MID ISO9001 |
||
Standard |
CE |
||
2.Functions and characteristic | |||
|
A. It should be used together with IR controller and mounted on the electronic device (For example, Air dryer, etc.) so that the meter can display the operational time and consumed kWh) | |||
|
B. The operating hours & the consuming power are shown in an alternate display, but have synchronous display (to be displayed at the same time on the same screen) | |||
|
C. The meter has the function to memorize all the data when the power off. When the machine is switched on again after power off, the measurement data will continue running on and show the summing up amount in numbers.(Note: The meter can't show the data when power off) | |||
D. The meter can display Voltage, Current & Power | |||

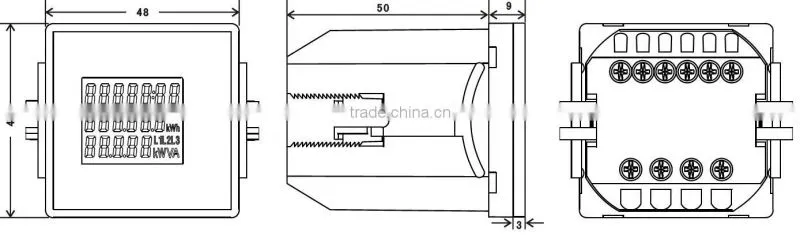

3.Outer and mount dimension: | |||
| |||
4.Wiring diagram: | |||
| |||
5.Transaction Information | |||
MOQ |
500pcs |
||
Sea Port |
Shanghai |
||
Payment Terms |
TT LC |
||
Supply Ability |
500,000pcs per month |
||
Delivery time |
20-25 days |
||
Normal Package |
White or color box for Smart Meter Electricity |
||
| |||
If you are interested in our Single Phase panel mounted Smart Meter Electricity, pls feel free to contact us at any time.
