Detailed Introduction

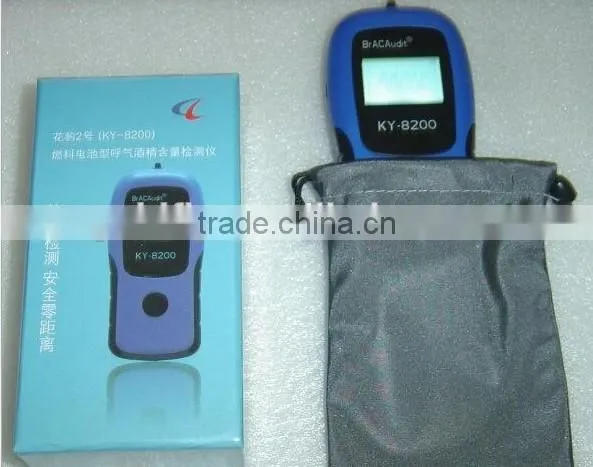

Cheetah No. 2 KY-8200 fuel cell type exhaled breath alcohol detector in strict accordance with GB / T 21254-2007 and JJG657-2006 testing, it is a high-performance civilian alcohol detector, to meet our customers non-police detection need. Prior to this the company has received several police "People's Republic of China measurement equipment manufacturing license" and the Ministry of Public Security Traffic Institute of Forensic certificate alcohol detector, and the other has achieved ISO9001: 2008 quality system certification.
Product Features:
1, imported electrochemical sensor with high reliability;
2, compact air route design, high-precision sampling systems, instrumentation-level circuit design and advanced algorithms to ensure measurement fast, accurate and stable;
3, active and passive blowing detection, easy test to use, compact, easy to carry;
4, the company has a complete independent intellectual property rights, research and development, production in one, strong after-sales service guarantee.
The main technical indicators and Specifications:
Project indicators and parameters
Alcohol type Sensor type electrochemical fuel cell alcohol sensor
Measuring range 0.000mg / L ~ 1.500 mg / L (breath alcohol concentration)
Resolution of 0.001 mg / L
Indication error Alcohol gas concentration range C / (mg / L) error
C <0.400 ± 0.020 mg / L
0.400≤C <1.000 ± 5%
C≥1.000 ± 20%
Repeatability alcohol gas concentration range C / (mg / L) error
C <0.400 0.007 mg / L
0.400≤C <1.000 1.75%
C≥1.000 6%
6 months calibration cycle
Operating temperature range -5 ℃ ~ 40 ℃
Storage temperature range -20 ℃ ~ 70 ℃
Reference Working conditions Temperature: 20 ℃ ± 5 ℃, humidity: <80% RH, atmospheric pressure: 86 kpa ~ 106 kpa
No effect on the instrument around the working gas and electromagnetic fields
Continuity check blowing 2.5 seconds (flow rate: ≥20L / min)

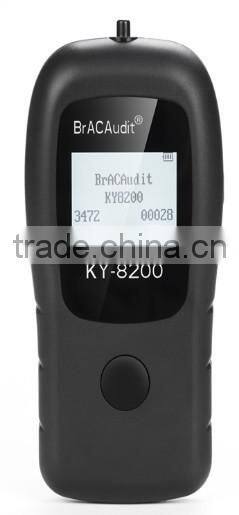

128 * 64 dot matrix display screen in black and white
Host size of about 134mm (length) × 65mm (width) × 30mm (thickness)
USB port 5V DC 3.6V ~ 4.2 V
Host battery No. 7 AAA alkaline batteries 1.5V * 3
Instrument Weight about 116g (with battery)
