Detailed Introduction

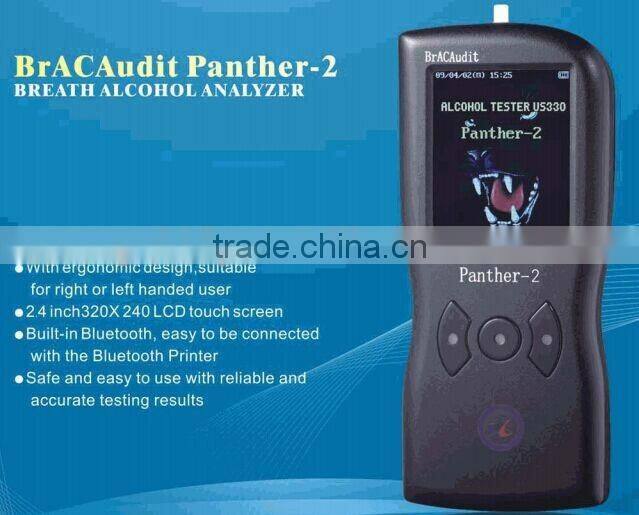

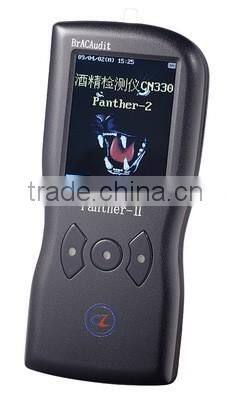

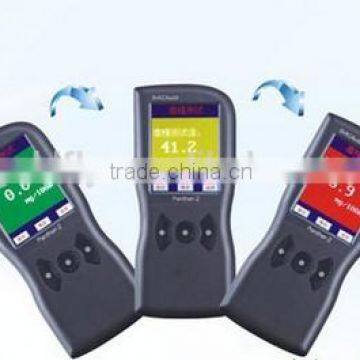

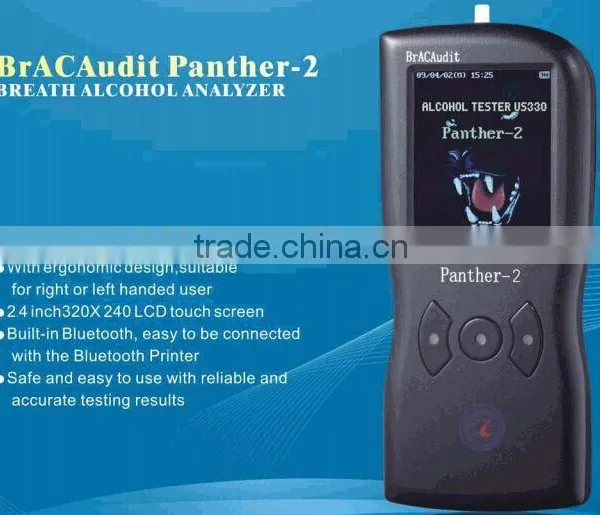

With fuel cell based, BrACAudit PantherⅡis a hand-held compact and robust breath alcohol tester to determine a subject’s breath alcohol level quickly, accurately and economically.
Features
1. Quick and Precise Analysis: 32-bit embedded processor secures high performance of the system.
2. UK made Electrochemical Fuel cell Sensor: Highly specificity to alcohol, unaffected by other possible breath contaminants.
3. Data Handling Ability: Compact gas circuit design and advanced analysis process assure fast, accurate and stable testing performance.
4. Enhanced Color TFT Display: 2.41inch 320*240 OLED dot matrix touch screen provides intuitive operation.
5. Safe and Easy to Use: All measurements functions are controlled via a single key, while menu navigation is by two menu keys. Information such as license plate number, driving license and police ID number can be quickly inputted by touch screen.
6. Practical Design: Thanks to its compact dimensions, the Panther-2even fits into a shirt pocket. The ergonomic design makes the instrument equally easy to use for right and left-handed people. Easily Replaceable mouth piece & Capable to work with 12 VDC.
7. Memory Capacity: Data storage of 10,000 test results with information like Model no, Device ID, Calibration date, Record No , Test result with Date & Time, Mode, Location, Longitude & Latitude for GPS ,
Police Officer Name, ID, Department, Driver Name, Vehicle No etc. Any test results can be easily recalled, printed or downloaded to a computer for statistical analysis and back-up via USB.
8. GPS function(Optional): Satellite positioning of inspection location.
9. Sampling Modes : Active & Passive Modes.
10. Fuel Cell Life : More than 1 year(depends on use & conditions)

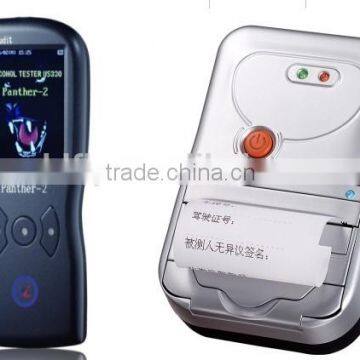

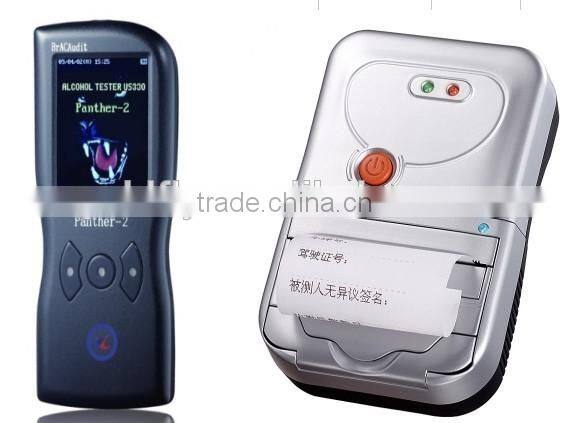

11. Standard accessories includes: Battery for the equipment, Wireless Printer with battery, Charger/Adaptor, Mouth piece, necessary software, cables, connectors, carrying case.
Details |
Technical data |
Principle of measurements |
Electrochemical fuel cell Sensor, alcohol-specific |
MeasurementRange(BrAC) |
0-400mg/100ml |
Resolution |
0.0001 |
Accuracy: |
Less than 5% |
Calibration |
Every 6 months |
Testing Mode |
Active & Passive Mode |
Temperature range-operation |
-5℃~ 50℃ |
Temperature range-storage |
-30℃~ 70℃ |
Blowing Time |
<3 seconds (breath flow:≥20L/min) |
Warm-up Time |
<20 Sec, 6 seconds after switching on |
Recovery Time |
<100mSec(typical), 5 seconds to 5 minutes, depends on Ethanol Vapor Concentration |
Analysis Time |
<10 seconds |
Optimum Storage Conditions |
Temperature 25℃±5, Humidity: <80%RH,Pressure: 86kPa~106kPa, No vapor or electromagnetic disturbances in the environment are influencing the normal working conditions of the device. |
Display TFT LCD |
2.41 inch 320*240 dot matrix touch screen |
Memory Capacity |
Stores 10,000 values with information |
Communication Method for Printer |
Bluetooth |
Printer |
External connected Bluetooth Dot Matrix Printer |
Dimensions (L*W*T) |
Approx. 140mm*60mm*24.5mm |
Number of measurements per Battery Pack |
More than 500 times (under ambient conditions) |
Fuel Cell Life |
> 1 year (Depends on uses) |
Batteryof Analyser |
1200mAH, 7.4VDC Li-ion Battery Type |
Batteryof Printer |
1500mAH, 7.4VDC Li-ion Battery Type |
Weight |
Approx. 180g |
