Detailed Introduction
Product Features

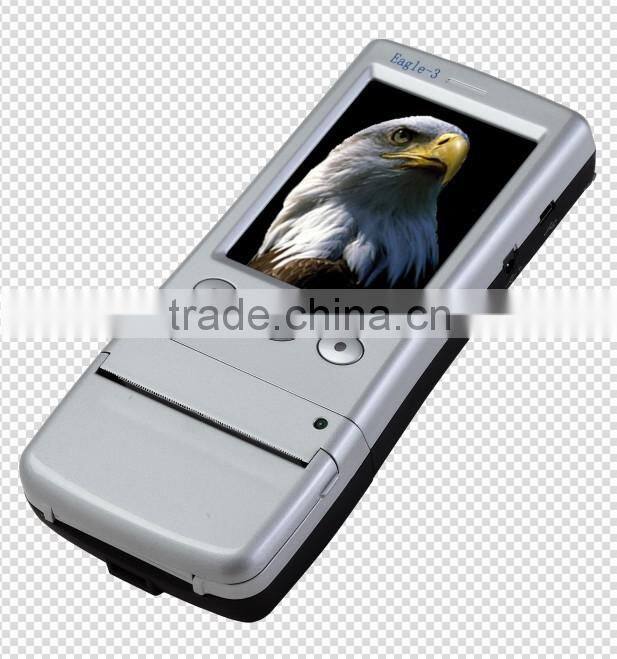

The Eagle-3 offers precise and quick breath alcohol analysis with the following features:
Details |
Technical data |
Principle of measurements |
Electrochemical fuel cell Sensor, alcohol-specific |
MeasurementRange(BrAC) |
0-400mg/100ml |
Resolution |
0.0001 |
Accuracy: |
Less than 5% |
Calibration |
Every 6 months |
Testing Mode |
Active & Passive Mode |
Temperature range-operation |
-5℃~ 50℃ |
Temperature range-storage |
-30℃~ 70℃ |
Blowing Time |
<3 seconds (breath flow:≥20L/min) |
Warm-up Time |
<20 Sec, 6 seconds after switching on |
Recovery Time |
<100mSec(typical), 5 seconds to 5 minutes, depends on Ethanol Vapor Concentration |
Analysis Time |
<10 seconds |
Optimum Storage Conditions |
Temperature 25℃±5, Humidity: <80%RH,Pressure: 86kPa~106kPa, No vapor or electromagnetic disturbances in the environment are influencing the normal working conditions of the device. |
Display TFT LCD |
3.5 inch 320*240 dot matrix touch screen |
Memory Capacity |
Stores 40,000 values with information |
Communication Method for Printer |
Bluetooth |
Printer |
External connected Bluetooth Dot Matrix Printer |
Dimensions (L*W*T) |
Approx. 175mm×77.5mm×30.5mm |
Number of measurements per Battery Pack |
More than 500 times (under ambient conditions) |
Fuel Cell Life |
> 1 year (Depends on uses) |
Battery |
1200mAH, 7.4VDC Li-ion Battery Type |
Batteryof Printer |
1500mAH, 7.4VDC Li-ion Battery Type |
Weight |
Approx. 337g |
Details |
Technical data |
Principle of measurements |
Electrochemical fuel cell Sensor, alcohol-specific |
MeasurementRange(BrAC) |
0-400mg/100ml |
Resolution |
0.0001 |
Accuracy: |
Less than 5% |
Calibration |
Every 6 months |
Testing Mode |
Active & Passive Mode |
Temperature range-operation |
-5℃~ 50℃ |
Temperature range-storage |
-30℃~ 70℃ |
Blowing Time |
<3 seconds (breath flow:≥20L/min) |
Warm-up Time |
<20 Sec, 6 seconds after switching on |
Recovery Time |
<100mSec(typical), 5 seconds to 5 minutes, depends on Ethanol Vapor Concentration |
Analysis Time |
<10 seconds |
Optimum Storage Conditions |
Temperature 25℃±5, Humidity: <80%RH,Pressure: 86kPa~106kPa, No vapor or electromagnetic disturbances in the environment are influencing the normal working conditions of the device. |
Display TFT LCD |
3.5 inch 320*240 dot matrix touch screen |
Memory Capacity |
Stores 40,000 values with information |
Communication Method for Printer |
Bluetooth |
Printer |
External connected Bluetooth Dot Matrix Printer |
Dimensions (L*W*T) |
Approx. 175mm×77.5mm×30.5mm |
Number of measurements per Battery Pack |
More than 500 times (under ambient conditions) |
Fuel Cell Life |
> 1 year (Depends on uses) |
Battery |
1200mAH, 7.4VDC Li-ion Battery Type |
Batteryof Printer |
1500mAH, 7.4VDC Li-ion Battery Type |
Weight |
Approx. 337g |
