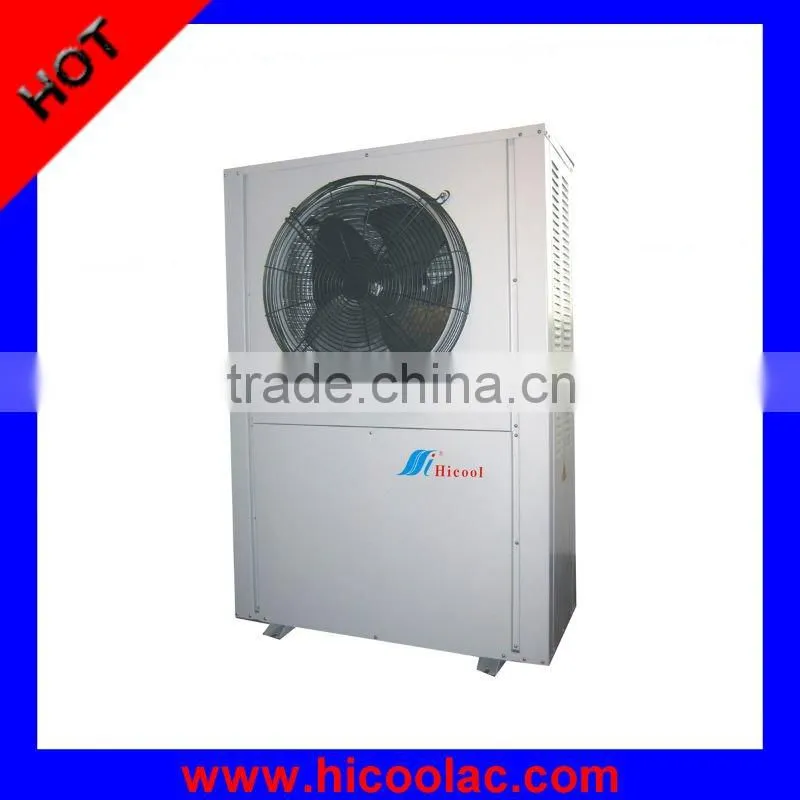

Aircon Units

Aircon Units thumbnail-1
Aircon Units photo-1
US$ 800 - 4,500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Air-Cooled
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Huizhou Hicool Climate Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Air-Cooled
Place of Origin Guangdong, China
Brand Name HICOOL
Model Number H-Ach50/P
Cooling Capability(kw) 5kW
Voltage 220V
Dimension(L*W*H) 1130X630X1620mm
Weight 130KG
Certification CE, ROHS, UL, Other, CE, ROHS, UL, CCC
Warranty 3 years
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Air to water air conditioning system saves investment
Classical design, easy application
Excellent performance, stable

                                                                          aircon units

1.Air to water air conditioning system saves investment
 Compared with traditional water cooled central air conditioner, air to water system does not need the whole cooling water system or special machine room, it can save building space greatly, save civil engineering expenditure, reduce the total project investment.

2.Excellent performance, running silently
 The unit adopts world famous brand scroll compressor, configured with high efficiency low noise vibration absorption fan special for air conditioner, having excellent air supply performance, running smoothly & silently. The units have high/low pressure protection, freezing-proof protection, over-current protection, etc. to insure safe & reliable operation.

3.Flexible configuration
The small air cooled chiller unit can be configured to have heat recovery function, multi-purpose units can save investment, it can supply 50-60°C hot water in all weathers besides cooling in summer & heating in winter, economical and practical, perfect combination of air cooled chiller unit and heat pump.

Application range:
Especially applicable to small garden villas, office buildings, high-class apartments, etc.



Parameter

Model H-Ach50/P H-Ach75/P H-Ach105/P H-Ach150/P H-Ach105/P3
Cooling Capacity kW 5 7.5 10.5 15 10.5
Heating Capacity  kW 5.5 8 11 16 11
Rated Input Power Cooling kW 1.7 2.7 3.8 5.4 3.8
Heating kW 1.6 2.5 3.7 5.3 3.7
Rated Input Current Cooling A 9.8 15.2 19.4 32.8 8.2
 Heating A 9.1 14.2 18.2 31.3 8
Power Supply 220V/50Hz 1P 380V/50Hz 3P
Compressor Quantity Sets 1 1 1 2 1
 Fan Quantity Sets 1 1 1 1 1
 Refrigerant R22 / R410A
Refrigerant Charge kg 2 2.5 3.8 5.6 3.8
Ambient Temperature -7°C~43°C / -7°C~52°C
 Control Manner  Central control and network control
 Protection High/low pressure protection, freezing-proof protection, over-current protection, water-break protection
 Noise dB(A) 56 56 57 58 57
Pump           Type Stainless Multi-state
 Water Head m 15 15 15 20 15
Water Flow m3/h  0.9 1.3 1.8 2.6 1.8
Water Gap Spec inches 1" 1" 1" 1-1/4" 1"
Net Dimension(LxWxH) mm 966×840×410 966×840×410 1445×1006×460 1445×1006×460 1445×1006×460
Net Weight  kg 90 100 118 127 118
Packing Dimension(LxWxH) mm 1050×950×500 1050×950×500 1620×1130×630 1620×1130×630 1620×1130×630
Gross Weight kg 100 110 128 137 128

 Model H-Ach125/P3 H-Ach150/P3 H-Ach200/P3 H-Ach250/P3 H-Ach300/P3
Cooling Capacity kW 12.5 15 20 25 30
Heating Capacity  kW 13 16 21 25.8 31.5
Rated Input Power  Cooling kW 4.5 5.4 7.2 8.9 10.7
Heating kW 4.3 5.3 7 8.6 10.5
Rated Input Current  Cooling A 9.5 12.4 16.7 20.2 22.4
 Heating A 9.2 12 16.3 19.5 22
Power Supply 380V/50Hz 3P
Compressor Quantity Sets 1 1 2 2 2
Fan Quantity Sets 1 1 2 2 2
Refrigerant R22 / R410A
Refrigerant Charge kg 4.5 5.6 6.8 7.6 7.6
Ambient Temperature -7°C~43°C / -7°C~52°C
Control Manner Central control and network control
Protection High/low pressure protection, freezing-proof protection, over-current protection, water-break protection
 Noise dB(A) 57 58 59 60 60
Pump          Type Stainless Multi-state
Water Head m 20 20 20 20 20
 Water Flow m3/h  2.2 2.6 3.44 4.3 5.2
Water Gap Spec inches 1-1/4" 1-1/4" 1-1/4" 1-1/2" 1-1/4" 1-1/2" 1-1/4" 1-1/2"
Net Dimension(LxWxH) mm 1445×1006×460 1445×1006×460 1553×1362×483 1553×1362×483 1553×1362×483
Net Weight  kg 120 127 210 222 230
Packing Dimension(LxWxH) mm 1620×1130×630 1620×1130×630 1740×1520×670 1740×1520×670 1740×1520×670
Gross Weight kg 130 137 233 245 265
Note:
1) Rated cooling working condition: water inlet: 12°C, water outlet: 7°C, outdoor ambient temperature: 35°C
2) Rated heating working condition: water inlet: 40°C, water outlet: 45°C, outdoor ambient temperature: 7°C





Finished  products









aircon units





About  us



HICOOL REFRIGERATION INDUSTRY(HUIZHOU) CO., LTD is one of the most professional factories specialized in designing, manufacturing and exporting Commercial / Central air conditioning equipment, located in Huizhou City of Pearl River Delta , with occupation area of 25,000 square meters.
        Since established in 2008, HICOOL has been insisting on developing new technologies and new products based on requirements of different customers from different countries and regions all around the word, under the guidance of Safe &Reliable, Efficient & Environmental, Creative & Technological, Precise & Improving , to offer products with reliable quality, elegant design and high efficiency. Our factory owns advanced producing lines and equipment, as well as famous testing systems, under the control of international advanced management system ISO9001. And, we've also obtained the certification of CE, CB, etc, for our main products.
        HICOOL can offer complete series of commercial / central air conditioner products, including High / Low Static Duct Type unit, Rooftop Packaged unit, Air-cooled Split Type unit, Small / Modular Air-cooled Chiller (H.R. optional), Swimming Pool Heat Pump unit, Air Source Heat Pump (H.R. optional), Ground Source Heat Pump unit, Air-cooled Scroll / Screw Chiller, Water-cooled Scroll / Screw Chiller, Air Handing Unit, Fan Coils, VRV system, Cassette type, etc. These products are well approved in both domestic and overseas market, and  we're exporting the products to many countries and regions in East Europe, Middle East, South Africa, Oceania, South America, etc.
        HICOOL has been focusing on offering the best products together and most satisfying services to our customers since the very beginning, and our services system runs through the whole process of businesses, including product R&D, product design, manufacture, before and after sale service. We're also aiming to improve our product and services continuously through the latest and most reliable technology in refrigeration field, based on the requirements of different customers.
        High Quality Creates Cool Life . We believe that HICOOL will create more values for customers and society, through our competitive products and full-round services, as well as our sincerity in cooperation with different customers, and you.
