Fingerprint & Rfid Card Access Control System
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Crypton & S4A Security Solutions
Model Number:

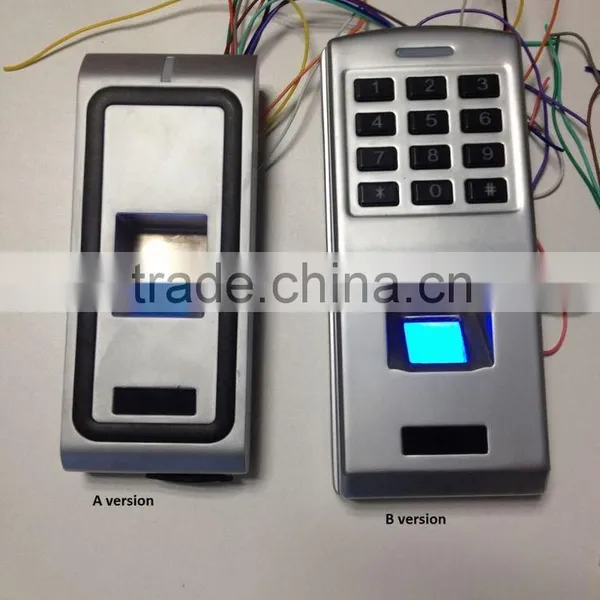

F3 rfid card access control system
Payment & Shipping
Payment Methods:
Port of Shipment:
HK or SZ
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Finger Print Led Control CardNegotiableMOQ: 1 Piece -
Software Control de Personal F3 All Metal FP A&CNegotiableMOQ: 1 Piece
-
Outdoor Fingerprint LockUS$ 48.00 - 65.00MOQ: 1 Piece
-
ARM9 Hardware Platform Fingerprint Time and AttendanceNegotiableMOQ: 1 Piece
-
Rfid Locker SystemsNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Crypton & S4A Security Solutions
Model Number
F3 rfid card access control system

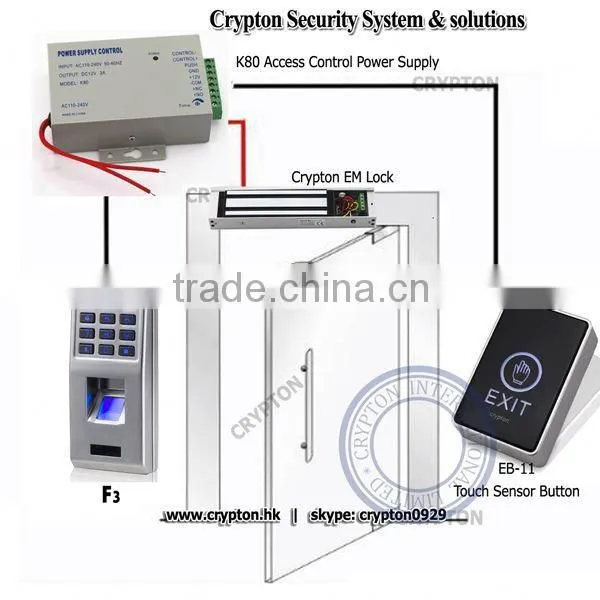

| Access Control Kits for F3 Fingerprint & Rfid Card Access Control System | |||||||||||||||
|
Base on the price,you will get: 1 X K80 Switching Power Supply 3A | |||||||||||||||
| | |||||||||||||||

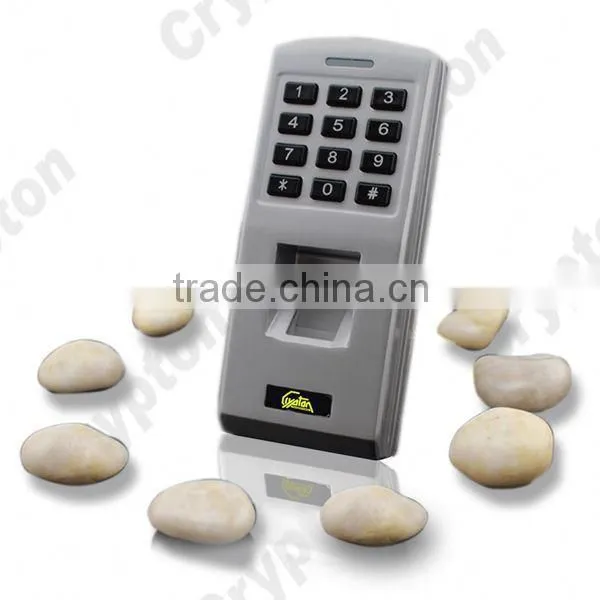

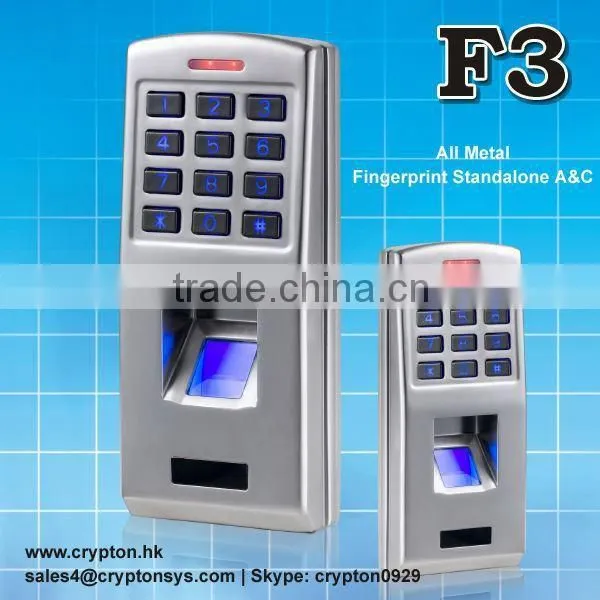

| Specification for F3 rfid card access control system | |||||||||||||||
| Hardware platform | ARM9 | ||||||||||||||
| Fingerprint collector | Fingerprint sensing optical Blu ray fingerprint collector | ||||||||||||||
| Fingerprint Capacity | 500(standard),Can be extended to 1000,3000 | ||||||||||||||
| Password Capacity | 500 groups | ||||||||||||||
| Administrator Function | support 2 groups of administrators to register and delete | ||||||||||||||
| U disk Function | Support upload and download | ||||||||||||||
| Wiegand | WG26 output | ||||||||||||||
| Recognition Speed | <1second | ||||||||||||||
| LED | Red&Blue | ||||||||||||||
| Alert Tone | Buzzer | ||||||||||||||
| Alarm Function | Anti-dismantle, Force to open door, Open door overtime | ||||||||||||||
| Temperature of use | -25 - 50 | ||||||||||||||
| Work humidity | 20% - 80% | ||||||||||||||
| Power supply | +12V | ||||||||||||||
| Size | 78mm*120mm * 22mm | ||||||||||||||
| | |||||||||||||||

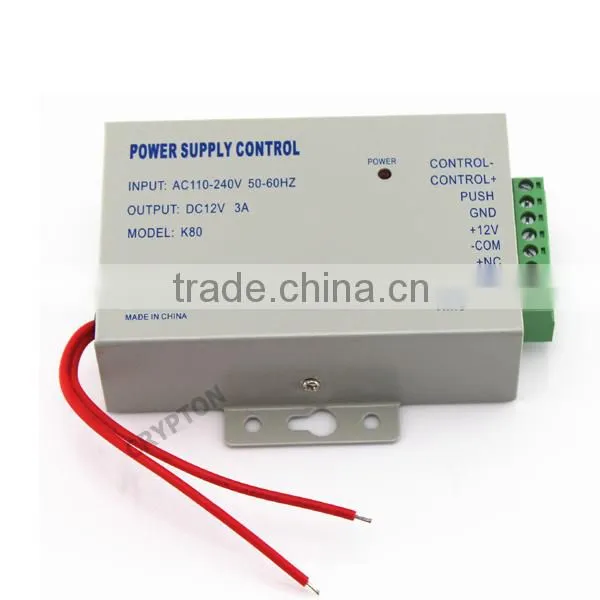

| Specification for K80 Power Supply 3A | |||||||||||||||
| Dimensions | 120Lx95Wx38H(mm) | ||||||||||||||
| Input Voltage | 110VAC~260VAC;50HZ~60HZ | ||||||||||||||
| Output Voltage | 12VDC; 3A | ||||||||||||||
| Output Contact | Access control, Electric Lock, Release Button | ||||||||||||||
| Time Relay | 0~15sec. | ||||||||||||||
| Standard Design | Steel material, Painted | ||||||||||||||
| Protect Safely | Short Circuit protection | ||||||||||||||
| Suitable For | Access control, Electric lock | ||||||||||||||
| | |||||||||||||||
| Specification for EB-18 Plastic Exit Button | |||||||||||||||
| Dimensions | 86Lx86Wx20H(mm) | ||||||||||||||
| Standard Structure | Fireproof Material | ||||||||||||||
| Current Rating | 3A,36VDC Max | ||||||||||||||
| Output Contact | NCCOM | ||||||||||||||
| Mechanical Life | 1000000 tested | ||||||||||||||
| Suitable for Door | Hollow Door | ||||||||||||||
| Operating temp | 10~+55°C(14-131F) | ||||||||||||||
| Panel Material | Fireproof Material | ||||||||||||||
| Weight | 0.15kg | ||||||||||||||
| | |||||||||||||||

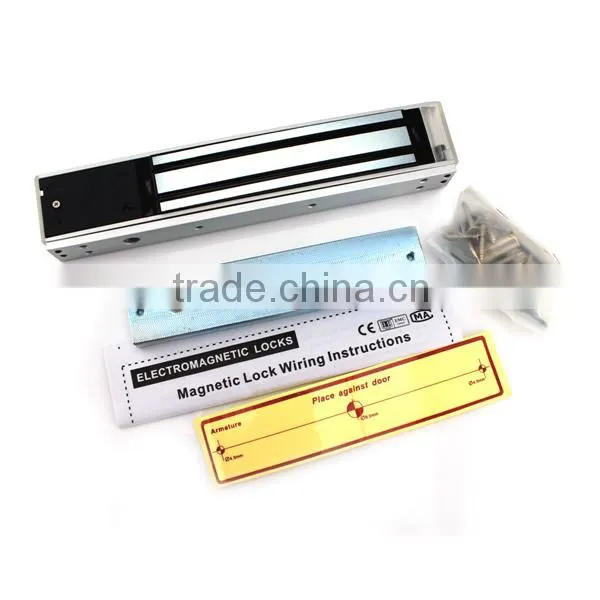

| Specification for EB-600ST 280KG Magnetic Lock | |||||||||||||||
| lock size | 250Lx42Wx25H(mm) | ||||||||||||||
| plate | 180Lx38Wx11H(mm) | ||||||||||||||
| Finishes for Shell | Anodized aluminum surface texture processing | ||||||||||||||
| Finishes for Magnetic | Zinc | ||||||||||||||
| Finishes for Armature | Zinc | ||||||||||||||
| Holding Force | 280kg (600Lbs) | ||||||||||||||
| Voltage | DC12V or DC24V (adjustable) | ||||||||||||||
| Current Draw | 12V/500mA 24V/250mA | ||||||||||||||
| Signal Output | Dry Contact, Max Rating of Contact Current 3A | ||||||||||||||
| Surface Temp | ≤+20°C | ||||||||||||||
| Operating Temp | below 55 to above 55 (14-131F) | ||||||||||||||
| Suitable Humidity | 0~90%(non-condensing) | ||||||||||||||
| Weight | 2kg | ||||||||||||||
| | |||||||||||||||
| Specification for LZ-600 LZ Bracket for Magnet Lock | |||||||||||||||
|
LZ Bracket is for Inward Door 1: Material Selection: High Strength Aluminum, Sandblast Finished 2: Suitable for Door: In-swing Door 3: Opening Mode: 90° Degress Door 4: Finished for Shell: Anodized aluninum | |||||||||||||||
| | |||||||||||||||
| |||||||||||||||
| Contact us - Ms Azura TAN | |||||||||||||||
| | |||||||||||||||
....
