Full Automatic Ultrasonic Welding Machine/Ultrasonic Sealing Machine/Bag Making Machine for Nonwoven
US$ 18,300 - 22,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Machine Type:
Bag Forming Machine
Bag Type:
Other, Flat Bag, D-cut Bag, Shoe Bag
Payment & Shipping
Payment Methods:
Port of Shipment:
any port of china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Instead of Plastic Machine Non Woven Bag MachineUS$ 18,000 - 25,000MOQ: 1 Piece -
Gift Non Woven Bag Machine,Candy Non Woven Bag Making Machine,nonwoven Bag MachineUS$ 18,300 - 22,000MOQ: 1 Piece
-
High Quality Non Woven Gift Candy Bag Making Machine Quality ChoiceUS$ 18,300 - 25,000MOQ: 1 Piece
-
Bag Making Machine for PP Woven/PP Woven Bag Making Machine/PP Woven Bag MachineUS$ 18,300 - 25,000MOQ: 1 Piece
-
Fully Automatic High Speed Non-woven Bag Making MachineUS$ 18,300 - 22,000MOQ: 1 Piece
Condition
New
Machine Type
Bag Forming Machine
Bag Type
Other, Flat Bag, D-cut Bag, Shoe Bag
Material
Non Woven Bag
Computerized
Yes
Place of Origin
Zhejiang, China
Brand Name
MTED
Model Number
WZDJ-F 600, 700, 800
Voltage
380V
Power(W)
13KW
Dimension(L*W*H)
6800*1300*1800mm
Weight
3000KGS
Certification
CE,ISO,SGS
Warranty
one year's guarantee, after it, still will provide best service
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Full Automatic Ultrasonic Welding Machine/Ultrasonic Sealing Machine/Bag Making Machine for Nonwoven1. Have more than 28 years' experience.
2. With company space more than 13,000square meters.
3. Most of spare parts have in stock
4.Patient and best after sell service

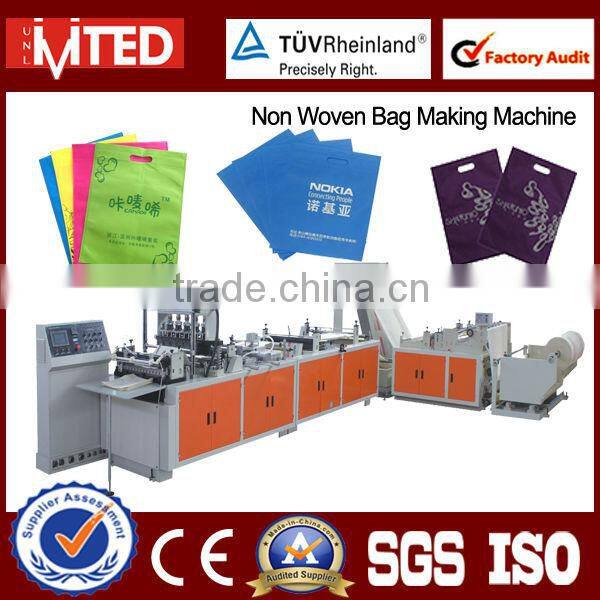

Full Automatic Ultrasonic Welding Machine/Ultrasonic Sealing Machine/Bag Making Machine for Nonwoven
(WZDJ-F 600, 700, 800)
Product Description

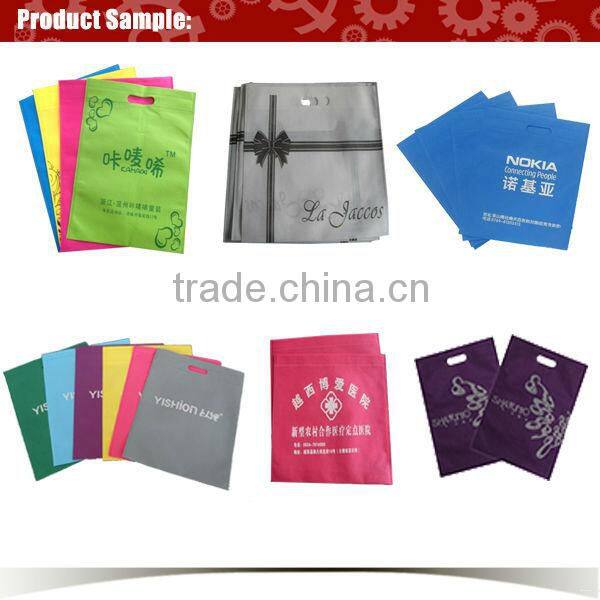

Use: Suitable for non-woven fabric material. It mainly for make flat bag (d-cut bag)
Feature:
1. Microcomputer control
2. Step motor feeding material
3. Photo-eye tracking
4. Automatic side-correction
5. Auto counting
6. Folding device
7. Computer fixed-length
8. Magnetic powder braking
9. Auto-stopping
11. Ultrasonic rolloff
Main machine material: channel steel, armor plate.
| Main Technical Parameters: | |
| Model | WZDJ-F 600 |
| Max Bag Length | 300-550mm |
| Max Bag Width | 100-700mm |
| Bag Making Speed | 20-100pcs/min |
| Material Thickness | 35-100g |
| Machine Weight | 2000kg |
| Overall Dimension | 5100*1100*1600mm/4000*1600*1600mm |
| Main Technical Parameters: | |
| Model | WZDJ-F 700 |
| Max Bag Length | 300-650mm |
| Max Bag Width | 100-700mm |
| Bag Making Speed | 20-100pcs/min |
| Material Thickness | 35-100g |
| Machine Weight | 2000kg |
| Overall Dimension | 5100*1100*1600mm/4000*1600*1600mm |
| Main Technical Parameters: | |
| Model | WZDJ-F 800 |
| Max Bag Length | 300-750mm |
| Max Bag Width | 100-700mm |
| Bag Making Speed | 20-100pcs/min |
| Material Thickness | 35-100g |
| Machine Weight | 2000kg |
| Overall Dimension | 5100*1100*1600mm/4000*1600*1600mm |
