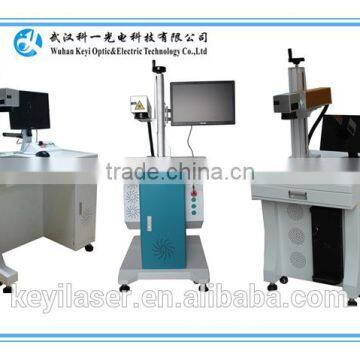

10W/20W Fiber Laser Marking Machine Price With CE FDA

Name: 10W/20W Fiber Laser Marking Machine Price With CE FDA
Brand: Keyi
Availability: InStock

FOB Price

US$ 5,000 - 10,000 / Set

1 Set(Min. Order)

Port Wuhan/Shenzhen/Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Laser Type	Fiber Laser
CNC or Not	Yes	Cooling Mode	Air Cooling
Control Software	EZCAD	Graphic Format Supported	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Working Accuracy	0.01mm	Place of Origin	Hubei, China
Brand Name	Keyi	Model Number	KY-M-FB10/20/50
Power(W)	10W/20W/50W	Certification	CE, Other, CE, FDA
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

10W/20W fiber laser marking machine Price with CE FDA

Product Description

1. Compactness: With the unique all built-in integration design, the optical, electronic and mechanical components are highly integrated, so that the whole machine weighs only 16kg. It can be called the smallest fiber laser marker in the world. In addition, it adopts imported fiber laser, and coupled with all air-cooled design, it need not external cooling devices.

2. High Durability: The laser module has a long service life (greater than 100,000 hours; while the traditional lamp pump YAG can only serve hundreds of hours and the semiconductor can serve 20,000 hours or so).

3. Low consumption: Due to the all air-cooled design, no consumable materials and free of maintenance, it has a low cost at use. Furthermore, it saves energy with a total power of 200W.

4. High speed: It applies imported high-speed galvanometer scanning head, which has greatly reduced the latency and increased the marking speed, which is 3 to 10 times of the first generation of traditional lamp-pumped marker and the second-generation of semiconductor marker (depend on the marking material).

Characteristic

1. Fiber lasers with high photoelectric conversion efficiency

2. Air cooled and low power consumption less than 0.5Kw

3. Good laser beam quality M²<1.2

4. Free maintenance and lifetime can be more than 20000 hours.

5. Compact design and can combine with flying marking or pocket design.

Parameter

Product Name	FB serial portable laser marking machine
Marking Parameters	FB serial portable laser marking machine(20W) KYD-FB	110mm*110mm(Any other else)
	Marking Speed	0-7000mm/s
	Marking depth /Roman Type ,Character Height 1mm	0.01-0.5mm(Depending on the material )
	Marking Content/Character Types	Text/letters/numbers/symbols/graphics/design/logo, etc. Date/time/QR code / Barcode/ batch number/serial number, etc. real-time number coding
	Min. Spot Size	0.02mm
	Marking Width	0.01-0.2mm(Depending on the material)
	Repeatability	±0.003mm
Laser Characteristics	Laser Type	Fiber Laser/1064nm
	/Wavelength	Fiber Laser/1064nm
	Output power(General)	≥20W
	Power Stability(8h)	<±0.01ms
	Beam Quality	M2<1.2
	Modulation Frequency	20-80(KHZ)
	Laser Safety Class	ClassIV
Other Info	System Protection Rating	IP54
	Cooling	Air Cooling
	Operating Environment Requirements	Temp.:8℃-40℃; Relative humidity≤0.95RH; Air dust≤0.01g/m³;Atmospheric pressure ≤86—106Kpa
	Power Supply	220V±5% ,50Hz±5% Single-phase AC power supply
	Power Consumption	<0.5KW
	Overall Dimension (L×W×H)	700×280×520(mm)
	Total Weight	40(kg)

Sample Show

Packaging & Shipping

Packing and Shipping

1. Keyi Optic & Electric products packaging are in line with the international air and sea transport packaging standards.

2. With sturdy wooden or iron box packing for long-distance transport, protection against the water and rust and shock and rough handling, for each part of the overall lifting equipment according to standard packaging.

3. Every package has a detailed packing list.

Our Services

Service Commitment

1, Keyi Optic & Electric provide two years free warranty and life-long maintenance. We provide spare parts and service free during warranty time. After the warranty period shall charge only when maintenance, continue to provide a broad and favorable technical support and spare parts supply.

2, Keyi Optic & Electric will upgrade software free for our products.

3, Keyi Optic & Electric received your repairing call, our after-sales engineers will give a clear answer within one hour, arrived at the scene within 24 hours, to ensure that users do not delay production.

Company Information

About Us

Wuhan Keyi Optic & Electric Technology Co., Ltd is a high-tech enterprise in Wuhan East Lake Hi-Tech Industrial Development Zone. We have a modernized manufacturing base and a high quality team; the scientific and technical personnel account 80% of the workforce, the number of senior technical staff accounts for 30%.

Over the years, our company has established partnerships with many domestic research institutes, insisting on the policy of scientific and technological innovation, customer satisfaction. Since foundation, with strict management and innovative spirit, we have successfully developed a number of advanced expertise; products include Diode-pumped laser machine, CO2 laser machine, fiber laser machine series, laser welding machine, laser cutting machine, Currently, our productshave been exported to Thailand, Brazil, German etc. and widely used in electronic components,

manufacturing, machinery, internal combustion engines, auto parts, medicine, food, household industrial and defense industries.

Based on the principle of "quality and service is foundation", stick to quality first, service to win. We not only provide users with excellent satisfying equipment, but also timely lifetime services, like technical advice and aftersales service, which gain us a high reputation among users. With the knowledge economy marching forward, we sincerely hope to cooperate, innovate, and develop with you hand in hand.
