Q8V series Handheld Intelligent Laser Marking Machine
PRODUCT DESCRIPTION TI O N
The Q8V series ultraviolet laser marking machine is developed using a 355nm ultraviolet laser. Materials have a high absorption rate of ultraviolet light, and it has a wider material adaptability. The focused spot of ultraviolet light is extremely small, and the processing heat-affected zone is negligible, making it more suitable for ultra-fifine marking of various materials.
The Q8V series ultraviolet laser marking machine is applied in the high-end market of ultra-fifine processing, fifine cutting, and micro processing. It is mainly used for marking and surface treatment of various materials such as various glasses, LCD screens, textiles, thin ceramic sheets, semiconductor silicon wafers, IC grains, sapphires, polymer fifilms, etc.
Fine marking of mobile phone shells Fine marking of glass products
Note: Laser marking machines of different power (W) have differences in marking accuracy, depth, speed,
color depth, and service life.Please contact the sales staff of Mac Laser according to the marking products
and requirements.
Wireless marking
● Configure 24V lithium battery to achieve complete wireless
● It can maintain 2~3 hours of work under normal use, with strong endurance
● Automatic start-stop design, automatic shutdown after 60 seconds of standby, saving power and reducing consumption.
100% portable
The weight of the whole machine is 11.85KG, the marking head is only 8KG, it is small and light, and it can be printed on the go
● Especially suitable for marking on large, heavy or difficult to move workpieces
● Special suitcase for easy transportation
User-friendly operating interface
●Independent and powerful Marking & Coding system by McClear
●Supports text, patterns, QR codes, barcodes, serial numbers, and graphics
●Mainframe operates on Linux for reliable security and stability

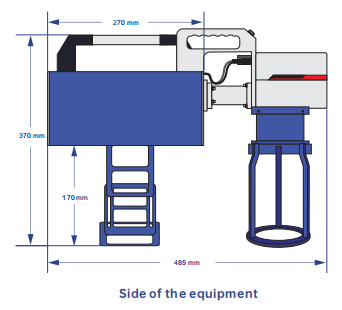

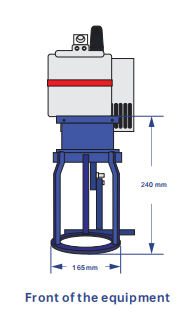

The whole machine weighs11.85KG， Lightweight and portable.
It is lightweight when held by hand and can be used for printing wherever you go.Powerful yet reliable. The whole machine weighs 11.85 kilograms, and its marking head weighs 8 kilograms. The operation is convenient.

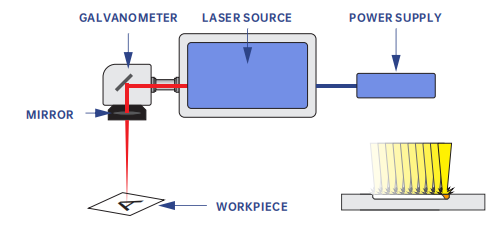

ADVANCED ULTRAVIOLET LASERS
The wavelength of the ultraviolet laser is 355nm. It is one of the current mainstream industrial-grade lasers. The focused spot is small, it is applicable to a wide range of materials, and can achieve ultra-fine marking of various materials.
LONG BATTERY LIFE, 2-3 HOURS WORKING TIME
It uses 24V lithium battery to achieve complete wireless, which can maintain work for 2-3 hours under normal use.
MARKING WHILE CHARGING,
MARKING WHILE CHARGING, THE DEVICE CAN BE CHARGED AND USED AT WORK
Increased power control design, the equipment can be charged during work, to achieve continuous work and improve processing efficiency
