Cheapest 3d Fiber Laser Engraving Machine Quality Choice

FOB Price

US$ 1 - 10,000 / Set

1 Set(Min. Order)

Port Wuhan Shanghai Shenzheng
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Laser Type	Fiber Laser
CNC or Not	Yes	Cooling Mode	Air Cooling
Control Software	EZCAD	Graphic Format Supported	AI, BMP, DST, DXF, DXP, LAS, PLT, DWG
Working Accuracy	0.01mm	Place of Origin	Hubei, China
Brand Name	Keyi Laser or OEM	Model Number	KY-M-FB10/20/30/50
Power(W)	10W/20W/30W/50W	Certification	CE, Other, CE, FDA
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

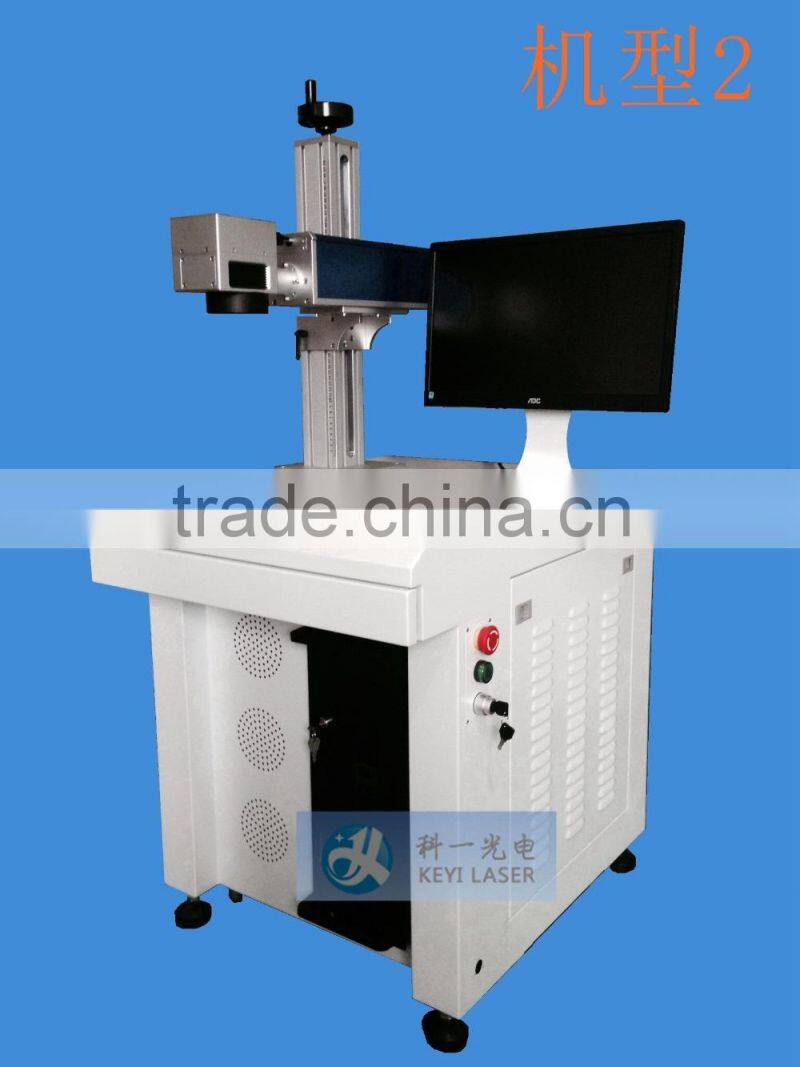

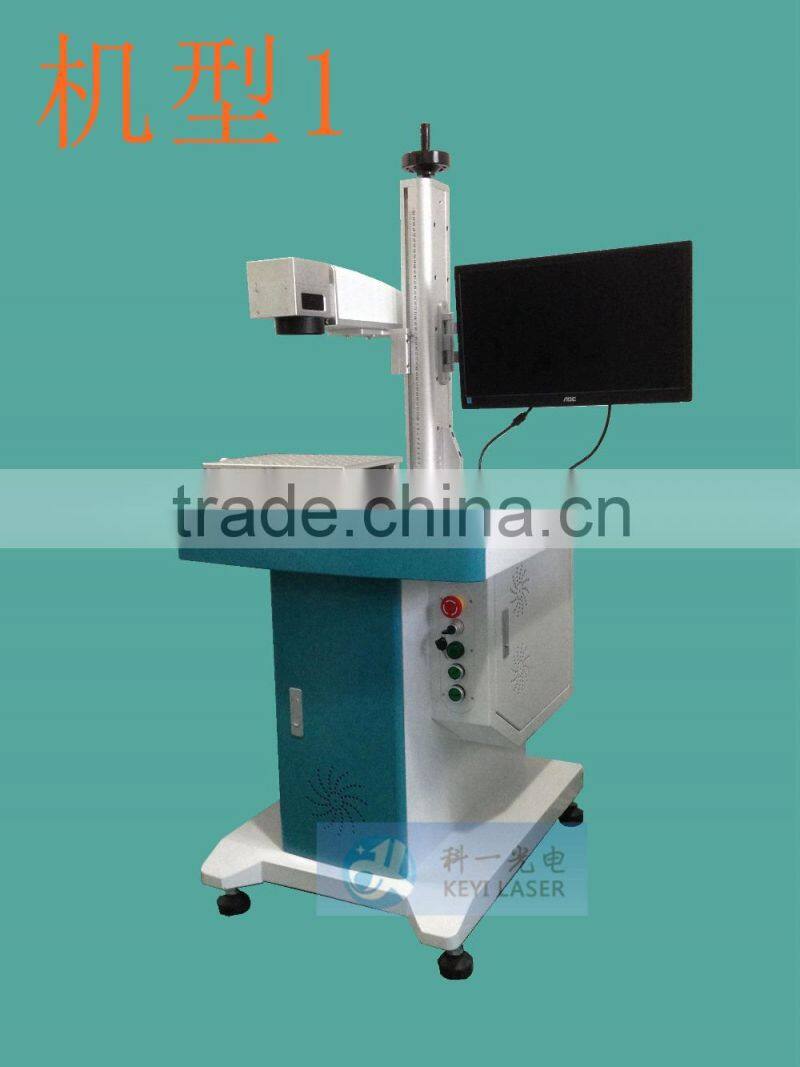

cheapest 3d fiber laser engraving machine

Product Description

Specifications

1. high speed
2. 2 years warranty
3. CE, FDA, TUV certificates
4. 24 hours aftersales service
5. easy operate&metal marking

charateristics

1.Fiber lasers with high photoelectric conversion efficiency

2.Air cooled and low power consumption less than 0.5Kw

3.Good laser beam quality M² <1.2

4.Free maintenance and lifetime can be more than 20000 hours.

5.Compact design and can combine with flying marking or pocket design.

Technical Parameters

Model	KY-FB10/ KY-FB20/ KY-FB50
Marking Range	110mm*110mm (Optional)
Laser Power	10W/20W/30W/50w
Q-frequency	20KHz~80KHz
Laser Wavelength	1064nm
Divergence	0.3mard
Minimum Line Width	0.02mm
Minimum Character	0.15mm
Marking Depth	0 ~0.5mm
Engraving Line Speed	<=7000mm/s
Repeatability Accuracy	±0.001mm
Beam Quality	M2:1.2~1.8
Marking Format	Graphics, Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date, Batch number, Serial number, Frequency, etc.
Graphic Format Supported	AI, BMP, DST, DWG, DXF, DXP,LAS, PLT, JPG, GIF, TGA, PNG, TIF etc.
Working Voltage	220V±10%/50Hz/4A
Unit Power	<0.5kw
Use of the Environment	Clean and Dust Free or Dust less
Working Condition: Humidity	5%-75%,Free of Condensed Water
Laser Module Life	>100000 hours

Optional parts

1. Rotary axis for marking

2. Fly marking

3. Combine with factory automation

4. Protection device

5. Customize designing

Applications for Fiber Laser Marking Machine
1.Engrave and mark on the surface of many metal and non-metallic:
Metals: Gold,Silver,Copper,Aluminum,Stainless Steel,Hard Metal Alloy ,Chromeplate,Titanize etc;
Non-metallic Materials: Ceramic,PVC,Plastic,Epoxy Resin,Leather etc.

2.Widely used in the marking of below area :
Industrial Bearings,Gear;
Various Automobile Components;
Hardware Tools;
Aerospace Components;
IC Chip;
Computer Cccessories;
Watch;
Electronic and Communication Products;
Wire and Cable;
Food Package;
Jewelry etc.

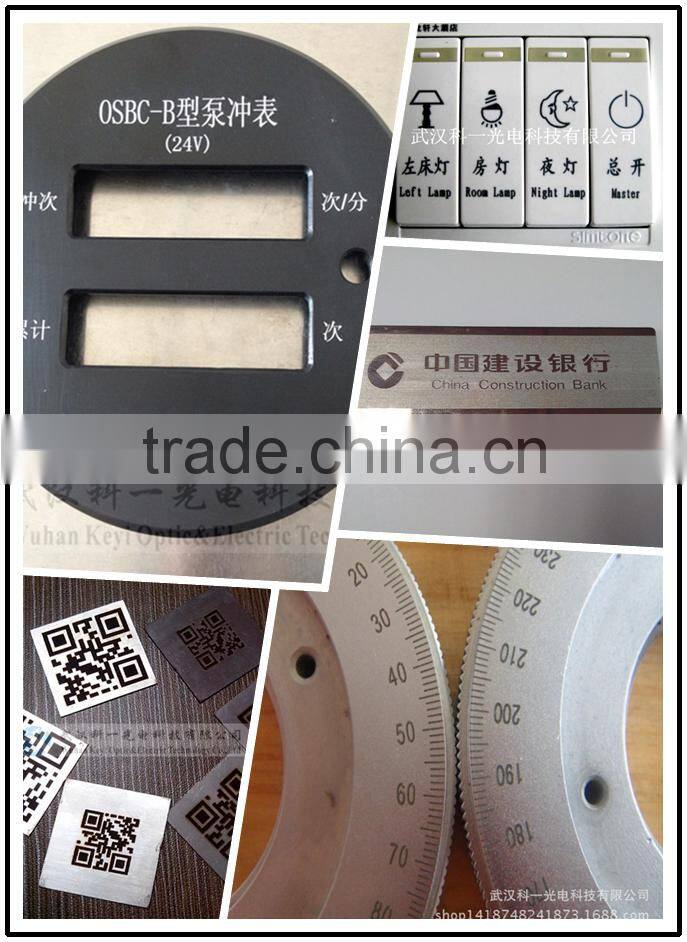

Sample Marking Parts
