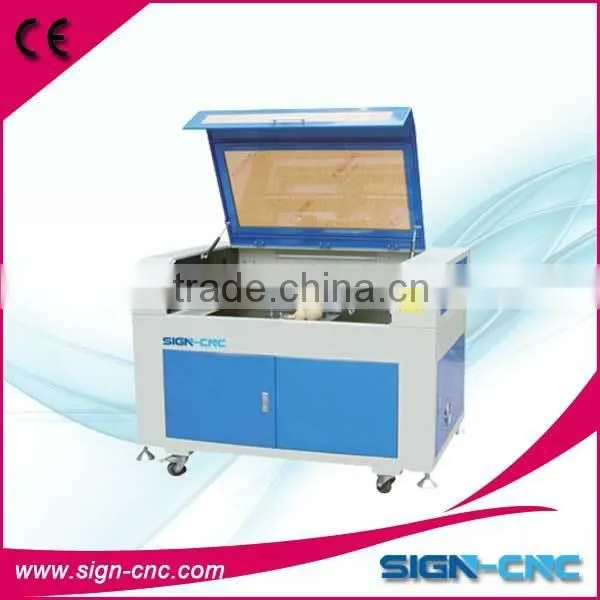

SIGN-6040 cnc lathe machine!High quality laser machine engraving and cutting machine

Specifications

cnc lathe machine
2 sealed laser tube
2.LCD screen operation
3.High quality low price
4.stepper motor

cnc lathe machine:













 Machine Features:

1. DSP offline control system
2. 3mm Cold-rolled steel welded machine bed, strong and running stable.
3. Fireproof window,more security.
4. High accuracy stepper motors and drivers. Belt transmission
5. Tiwan Hiwin Linear square guide rails, more precision.
6. Singapore imported focus lenses.
7. high quality air compressor and exhausted fan.
8. CW 3000 industrial water chiller.
9. Aluminium blade table: to process hard materials like acrylic, wood and so on.
10. CO2 Glass sealed laser tube: China famous brand (Weeson, Reci), good beam mode stability, service time over 1500~8000 working hours.

Applicable Industries:

Advertising,Furniture industry, Model industry,Decoration,Electronics, Embroidery, label processing, arts and crafts,gifts, printing and packaging, leather industry, garment cloths industry, model industry, photographic sutio industry, computerized, clipping, paper industry etc.

Applicable Materials:



Non-metal materials such as wood, MDF, balsa, timber, veneer, plywood, bamboo, acrylic, crystal, glass, plexiglass, mirror glass, textiles, garments plastics, PMMA, paper, cardboard, foam, foils and films, packaging film, PES, Laminate sheet, double color board/plate, granite, marble, slate, leather, rubber, ceramic and other nonmetal materials.

Technical Parameters:

Model	SIGN-6040
Cutting area	600x400mm
Laser power	40W / 60W / 80W
Laser type	CO2 sealed laser tube,water-cooled,10.6um
Working life of laser tube	More than 8000 hours
Engraving speed	0-60000mm/min
Resolution ratio	≤0.0125
Laser Output	1-100%software setting
Resetting positioning accuracy	≤±0.01mm
Power supply	AC 110 - 220V ± 10%, 50 - 60Hz
Operating temperature	0 - 45°C
Operating humidity	5 - 95%
Min. shaping character	English 1.0mm x 1.0mm
Graphic format supported	AI, PLT, DXF, BMP, DST, DWG, DXP
Software supported	Tajima, CorelDraw, Photoshop, AutoCAD
Driving system	Stepper motor and belt
Cooling mode	Water-cooling by water chiller
Packing Dimensions	1460x1160x1220mm
Net Weight	200kg
Optional Spare   Parts	Up-down   clump, Rotary System, Honeycomb table
Recommended   Spare Parts	Laser   Tube and Lens



The optional items:



1. Up/down Z-axis: to adjust the height of table, for putting 300mm depth materials. So that,easy to process regular or irregular materials.

2. Rotary axis: to engrave cylindrical shape materials, such as pens, bottles and so on.

3. Red point for position: The laser is invisible. Red dot shows the position of the laser on the material,, quickly find the position.

4. Chiller unit: to cool circular water

5. Honeycomb platform: to engrave soft materials like paper, leather and so on.

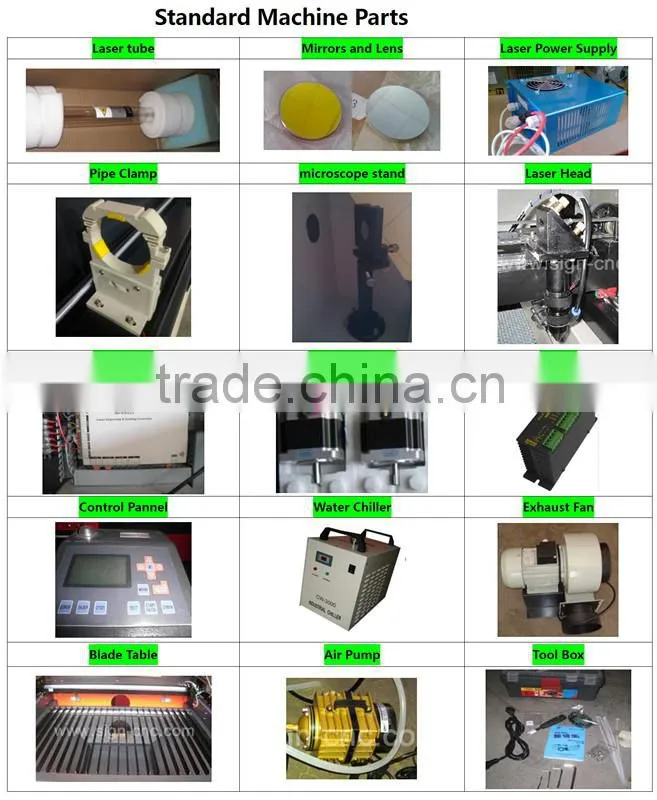

Machine parts:

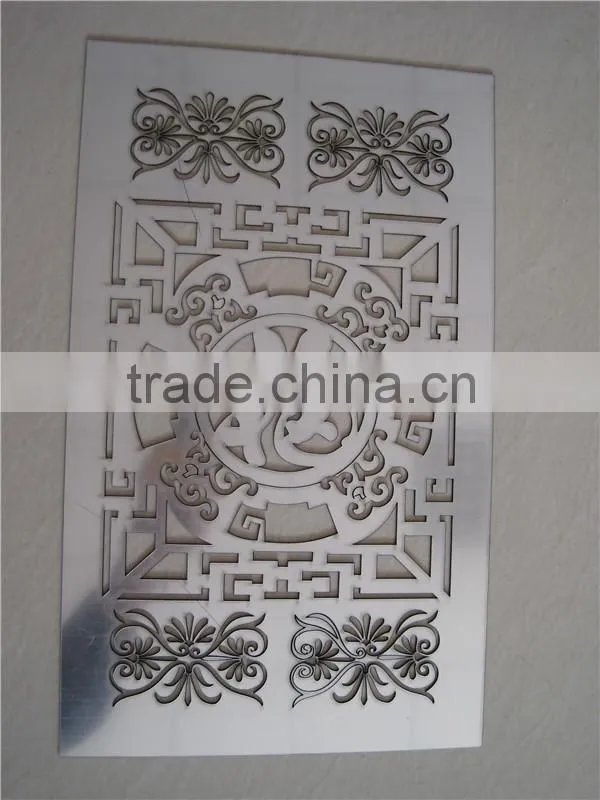

Samples display:

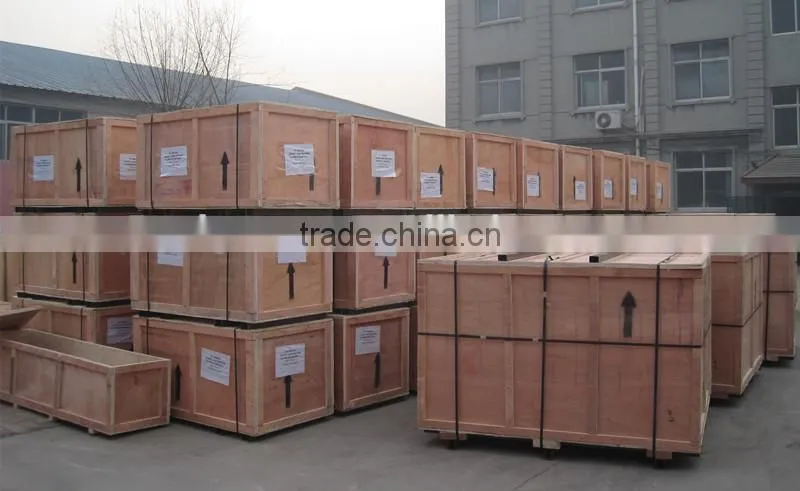

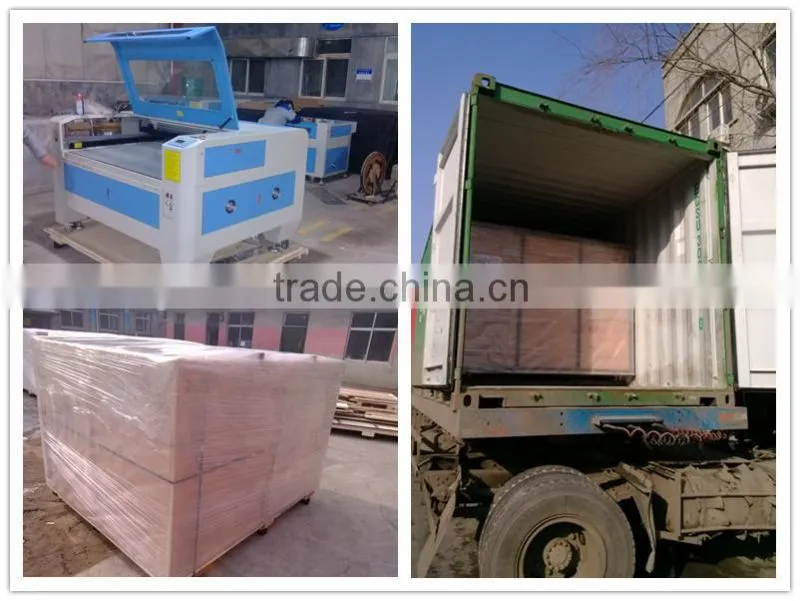

 Packing:









Our Services:

1.Two year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.

3.Life time free maintenance service.

4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement.
