Help CenterNew Products 2014 Cheap Co2 Laser Engraving Machine Cnc Marble Engraving Machine Price SIGN CNC 6040
Related Products
-
SIGN-6040 Cnc Lathe Machine!High Quality Laser Machine Engraving and Cutting MachineUS$ 2,300 - 3,100MOQ: 1 Set -
Cnc Laser Cutting Machine Price Best and High Quality SIGN-1318US$ 5,000 - 7,000MOQ: 1 Set
-
3D Marble Caving Cnc Router Granite Engraving MachineUS$ 7,200 - 9,100MOQ: 1 Set
-
3D Marble Caving Cnc Router Granite Engraving Machine 1325US$ 7,200 - 9,100MOQ: 1 Set
-
High Precision SIGN 1325 Cnc Stone Carving Machine / 3d Cnc Router Machine for Tombstone Artificial Marble FurnitureUS$ 7,200 - 9,100MOQ: 1 Set
Specifications
cnc marble engraving machine price1.imported Hiwin linear rails
2.international lens and mirrors
3.long working time
4.CE
cnc marble engraving machine price
Machine features:
1) The laser cutting machine adopts imported straight trajectory, it posses stable operation, fast speed of cutting/engraving and high precision.
2) The machine adopts advanced USB off-line DSP motion control system with more stable performance and strong anti-jamming capability.
3) The laser tube adopts high quality product in china at present, its lifetime can exceed 8000hours, avoiding user changing laser tube frequently, and thereby it reduces the use-cost of equipment.
4) Using imported focus lens from America making engraving/cutting more precision to meet the requirement of high-end users.
5) Reflecting mirror adopts molybdenum metal of indestructible and high reflectance and reducing laser power consumption.
6) High-strength mechanical structure can insure stable operation and it's no need to adjust for a long time running.
7) The work table is coherent of frontal and back, it is convenient for materials passed through, and can be used for materials of indefinite length.
8) It is equipped with water-break and low water warning system, which can insure normal and high-efficiency operation of the laser tube.
9) With uncover protecting function; it can protect the security of the operation personnel efficiently.
10) It is equipped with exhaust-fans and air-exhaust pipe, perfect design for dust defending and anti-pollution, avoiding environment pollution.
11) The hardware adopts modular design; it is easy for user to installation and debugging.
12) The software has multilingual, user can edit in any language according to their needs.
Technical data:
Model |
SIGN-6040 |
Max laser average power |
40w,60w,Reci 80W (8000hr work life) |
Laser medium |
Sealed CO2 laser |
Work table size |
600mm * 400mm |
Cooling mode |
Water-cooling and protection system |
Idle running cutting Speed |
0 ~ 18,000mm / min |
Idle running engraving Speed |
0 ~ 50,000mm / min |
Reposition Accuracy |
+/- 0.01mm |
Min. letter size |
1.0 mm |
Work table |
Aluminum Slot or Zinc-iron-alloy Honeycomb |
Voltage |
220V (110V), 50/60Hz |
Power consumed |
1200W |
Controlling software |
32Bit DSP control system for USB connection |
Compatible software |
CorelDraw; AutoCAD; Photoshop |
Auxiliary equipment |
Exhaust-fans, air-exhaust pipe |
File format support |
AI,BMP, PLT,DXF, JPEG, GIF; DMG |
Operation temperature |
0 ~ 45 |
Operation humidity |
5% ~ 95% |
Packaging demission |
1460*1160*1220mm |
Gross Weight |
260 kg |

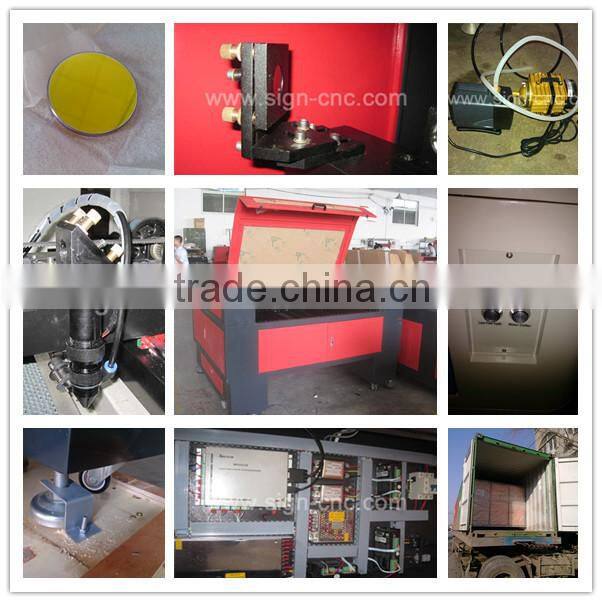

Machine parts:
Application:
Material |
Cut |
Engrave |
Acrylic | Plexiglas | Perspex |
♦ |
♦ |
Organic board | Double color plate |
♦ |
♦ |
Wood | Bamboo | Veneer | MDF |
♦ |
♦ |
Leather |Pig leather |Cow Leather |sheep leather |
♦ |
♦ |
Fabric |Cloth | Textile |
♦ |
♦ |
Wool Felt |
♦ |
♦ |
Paper | Cardboard | Chipboard Press Board |
♦ |
♦ |
Ceramic | Tile| Marble |
|
♦ |
Plastic ABS | PVC |
♦ |
♦ |
Fiber glass Crystal |
|
♦ |
Others |
♦ |
♦ |

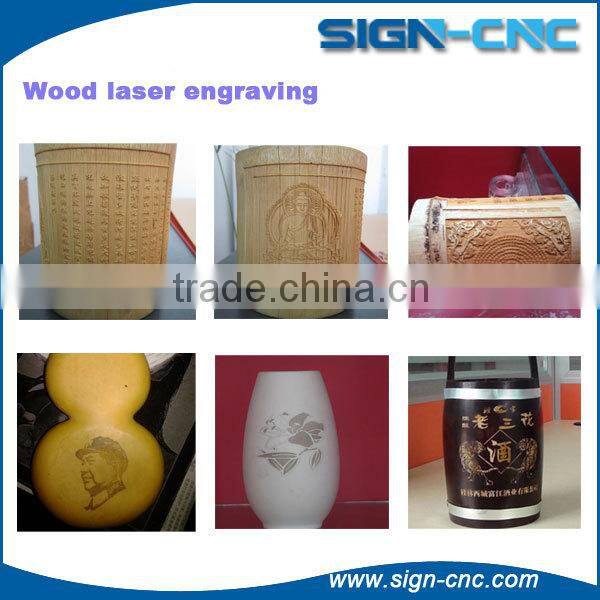

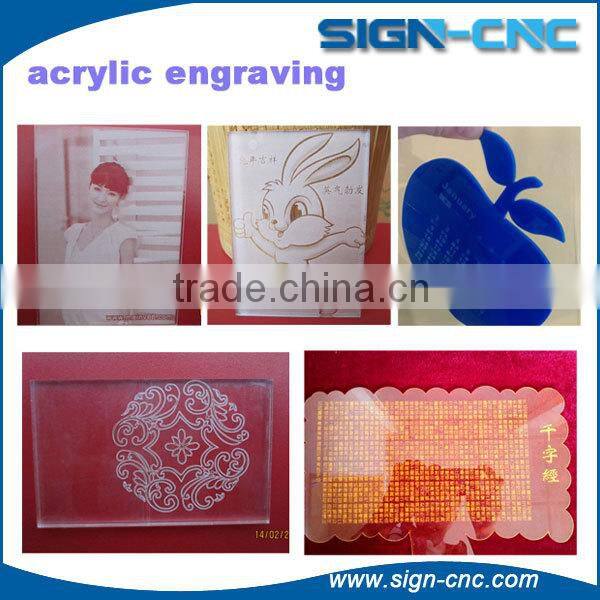

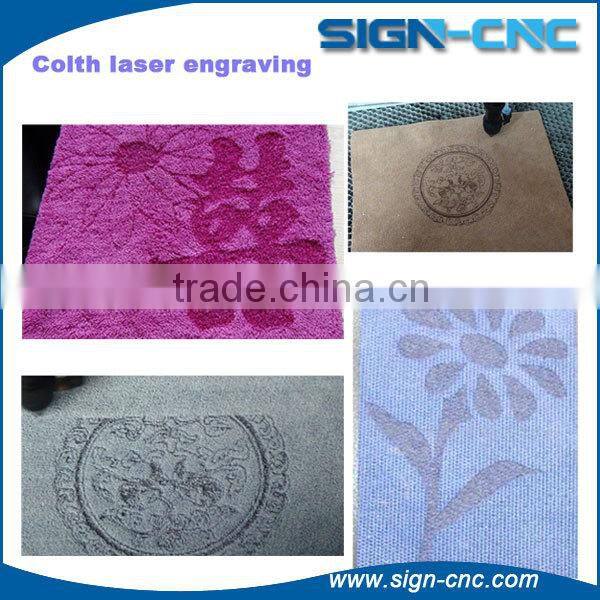

Samples:
