Home > Products > Rotary Router/4-Axis CNC Router > 4 Axis CNC Router 2D 3D Engraving Machine
4 Axis CNC Router 2D 3D Engraving Machine
- 500 Set / Sets per Month
- Qingdao
- Credit Card PayPal
You May Like
-
China manufacture laser machine price 4x8 sheet plastic polycarbonate sheet
-
China manufacture laser machine price CNC laser cutting machine for wood mdf acrylic
-
express China manufacturers CO2 cnc laser cutting machine price 1325
-
2016 China's most advanced technology cnc laser cutting machine
-
Economic Professional High Quality Co2 Laser Engraving And Cutting Machine for acrylic, wood and mdf
-
2016 China's most advanced technology laser cutting machinery / laser engraving machine
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | SIGN CNC | |
| Model Number | SIGN-1318/1325 | Voltage | 220V/50HZ | |
| Power(W) | 2.2KW | Dimension(L*W*H) | 1300*2500*200mm | |
| Weight | 550kg | Certification | CE,ISO | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
4 Axis CNC Router 2D 3D Engraving Machine
1.Machine features
1.Widely used cylinder engraving.Such as hardwood, marble,handicrafts
2.High-performance driven motor to ensure the machine’s high speed and accuracy
3.NC-studio control system, stepper motor.
4.double rotary device with double spindle.
5.can do flate material engraving and cylinder material engraving.
2.Techincan parameter
Model | 1328/1325 multi head 4 axis cnc machine |
Rotary working size: | diameter is 200mm,length is 2500mm |
Table structure: | PVC with t-slot |
X Y Z working size | 1300*2500*250mm |
X Y Z rail | HIWIN Linear square guide rail |
X Y transmission | Rack & pinion |
Z transmission | Ball screw |
Max. speed | 60m/min |
Max. working speed | 50m/min |
Spindle | 2.2kw water cooling spindle |
Spindle speed | 24000rpm |
Collets | ER20 3.175-16mm |
Precision | 0.01mm |
Repeat reposition accuracy | 0.025mm |
Inverter | Fuling 3.7KW |
Motor | step motor |
Driver | leadshine driver |
Voltage | AC 220V 50HZ /option 380V |
Dust collector | For optional |
Control system | NC-studio(option:DSP or Mach 3) |
Software | Artcam |
Command language | G-code, plt, uoo, mmg |

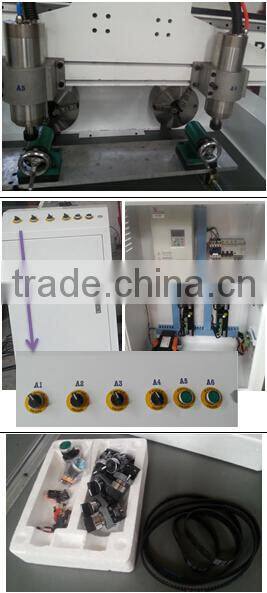

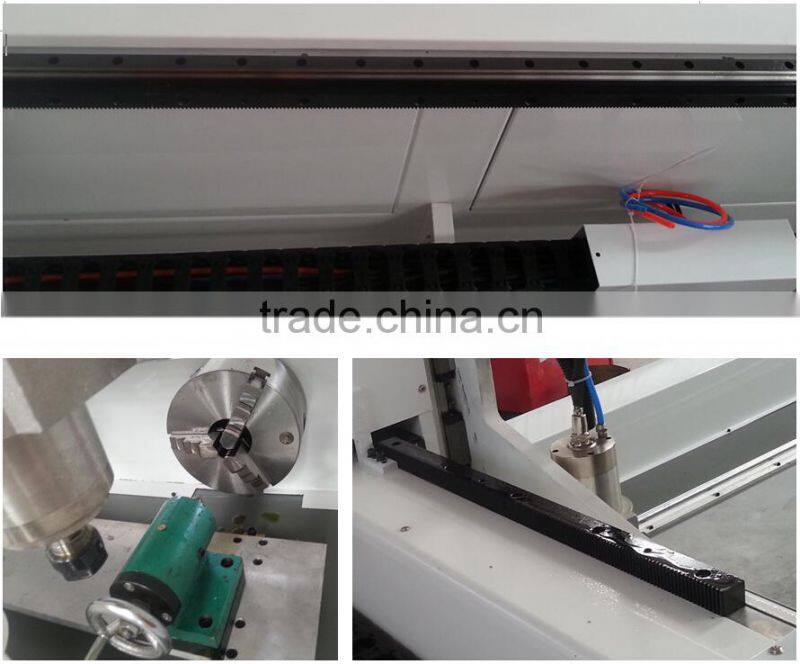

3.Machine part
4.Engraving sample
5.After sale service
1.English software, user manual and operation CD
2.24 hours technical support by e-mail, calling or door-to-door service .
3.7-15 working days to produce the machine.send picture and video to you before shipping.
4.Free change broken part within warrantry time (one year).
6.FAQ
A. I have no idea which machine can meet my need,what should I do?
Please tell the what’s material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Then I will recommend the most suitable machine for you
B. I do not know how to handling CNC Router,what should I do?
We will supply you a training video and English handbook to teach you how to operate.Or we will welcome you to arrive China to field-based learning
C. If my machine has some problems in the warranty period,what should I do?
if the machine part broken within warrantry time,we will send new part to you for free.
7.Contact ways
Contact Us
- Jinan Sign CNC Equipment Co., Ltd.
- Contact nameYali Yang Chat Now
- Phone0086-531-67875907
- AddressRoom 2101, Unit 1, Bldg. 3, Ligao International Garden, No. 1222, Aoti West Road, Lixia District
