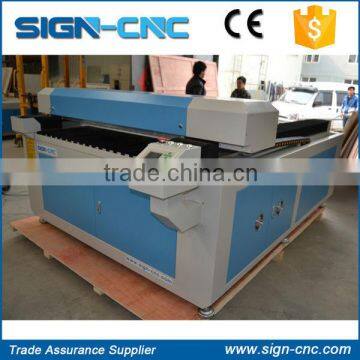

Help CenterAcrylic/plastic/die Board /wood/fabric 150w Co2 Laser Cutter for Sale
Related Products
-
150 Watt Co2 Laser Cutter/large Format Cutter/ Co2 Laser Cutting Machine 100 WattUS$ 6,500 - 7,800MOQ: 1 Set -
Laser Wood Carving Machine/laser Cutting Machine for Die BoardUS$ 6,500 - 7,800MOQ: 1 Set
-
1325 Co2 Laser Cutting Machine for Wood/plywood/mdf/die BoardUS$ 6,500 - 7,800MOQ: 1 Set
-
Automatic Wood Cutting Machine / Laser Wood Carving MachineUS$ 5,800 - 7,000MOQ: 1 Set
-
Laser Cutterlaser Engraver and Cutter / Laser Wood Carving Machine / Cnc Laser Cutting Machine PriceUS$ 5,800 - 7,000MOQ: 1 Set
Machine features
1. Adopting the imported lens and mirros to ensure long lifetime of laser tube and high cutting efficiency.

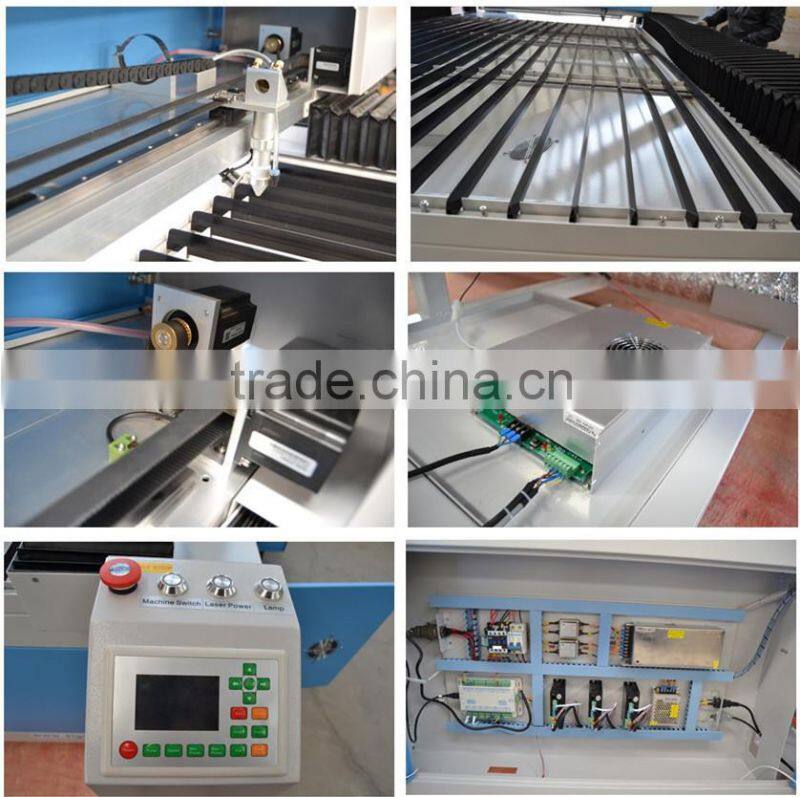

2. Equipped with imported straight linear guide rail and German stainless steel transmission belt, this series machine is specialized designed for acrylic material cutting.

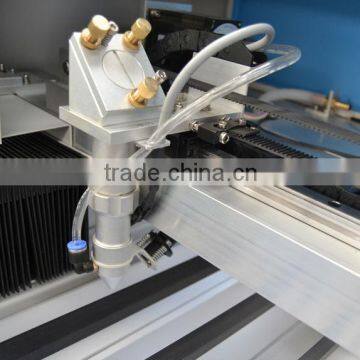

3. It adopts special water-cooled lens and the laser power between 90W-180W.
4. This series of laser machine also equips with Reci laser tube to ensure the high cutting speed, precise accuracy and stale operation performance.
5. Adopts high precise linear guide rail in straight reciprocating motion which have much higher rated load than normal guide rail.
6. It can perform high precise linear motion under the overloading situation.
Techincal parameter
Machine Model |
SIGN-1318 |

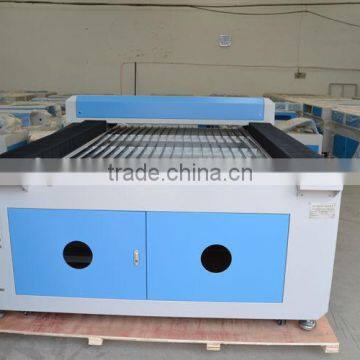

Working Size |
1300mm*1800mm (L*W) |
Laser Power |
reci 90w /(optional :reci 100w/reci 150w ) |
Laser Type |
CO2 sealed high quality |
Cooling mode |
Water-cooling |

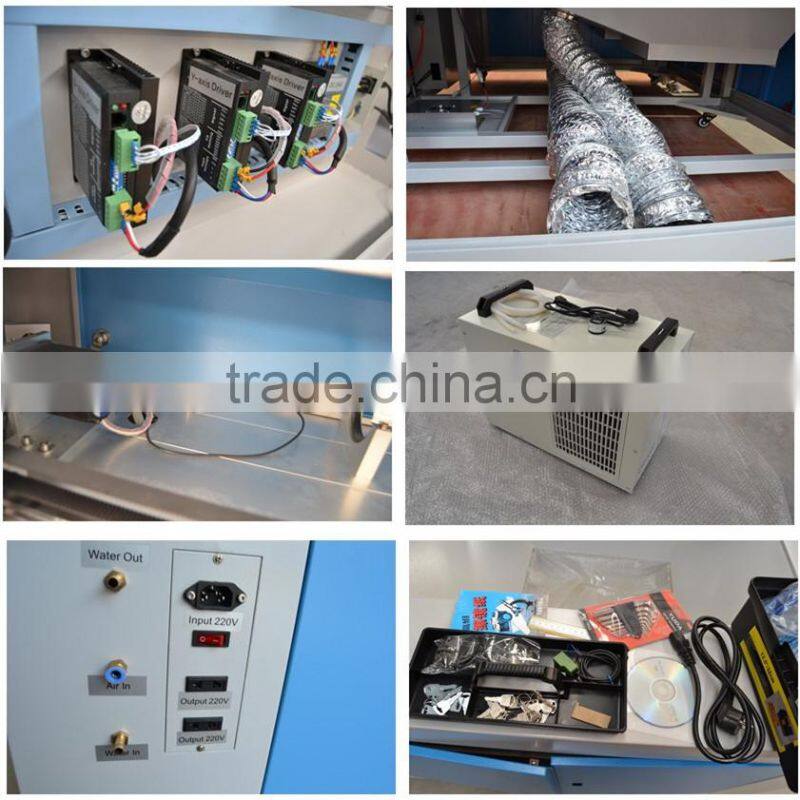

Driving System |
Three Stepper motor |
Cutting Speed |
0-40000mm/min (0-1575 inch/min) |
Engraving Speed |
0-70000Mm/min (0-2756 inch/min) |
Resetting Position Accuracy |
≤±0.01 |
Power Supply |
220V/50Hz ( Optional 110V/60Hz) |
Operating Temperature |
0-45 ℃ |
Operating Humidity |
5-95% |
Min. Shaping Character |
English 1.0*1.0mm |

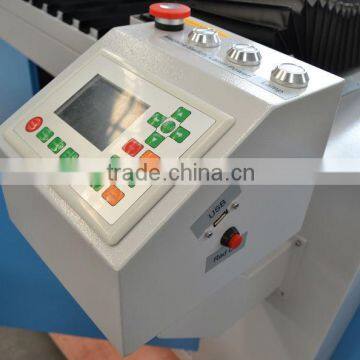

Operating System |
PCI OR USB (DSP 6535) |
Graphic Format Supported |
BMP, PLT, AI, DST, DXF |
Software Supported |
Coreldraw, Photoshop, AutoCAD, Tajima |
Total power |
2.0KW |
Net Weight |
900kgs |
Applicable Materials:
Non-metal materials such as acrylic, wood planks(light planks),bamboo ware. Double colored boards, paper, leather, shells, coconut shells, ox horns, resin animal grease,ABS boards, etc.
sample show
Afrer sale service
- Life time maintenance free of charge

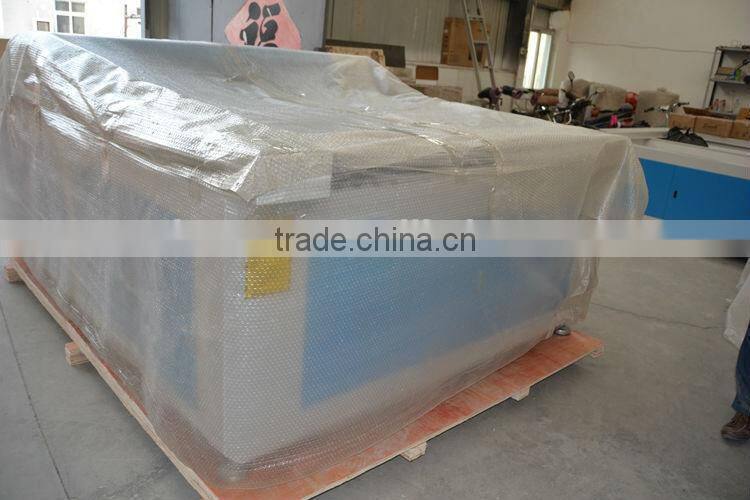

- Machine has been adjusted before shipping
- Two years quality guaranty ,the machine with parts shall be changed free of charge when if any problem during the warranty period(excluding the consumables)
- 24 hours technical calling or e-mail service for any technical questions of our machine
- Welcome to our factory for visiting and training.
- 7-15 working day before shipping.
We have a strong professional technical team to provide the best products and have experienced managers with the most perfect price system integration schemes for our customers. We have been established business partner with many customers from Russia, Ukraine, U.S., Japan, South Korea, Canada, Italy, Turkey, Iran, Iraq, Egypt, Brazil, Pakistan etc. more than 50 countries.
1. What materials can be cut on Laser engraver and cutting machine?
A. Many (non metallic) materials can be cut on an Origin Laser engraving and cutting machine. Origin Laser machines are often used to Laser cut materials
such as industrial labels, timber, acrylic, fabric and paper.
2.What industries would use Laser engraving and cutting machine?
A. Many industries can use Origin Lasers engraving and cutting machines for a huge range of applications. The laser engraving machines are used for part numbers, labeling, bar-coding, signage, promotional goods and many, many others.
3. How thick can Laser machine cut?
A. How thick an Origin Laser cutter can cut depends on the wattage of the laser and the material, but for an example a 100W laser can cut up to 10mm acrylic with good edge quality.
4. What power supply is needed to run Laser engraving and cutting machine?
A. All Origin Laser’s laser engraving and cutting machines run off standard Australian 240V power.
For any other questions or expressions of interest please be sure to visit the contact us page for an online form.
Any more informations, please free feel to contact me
