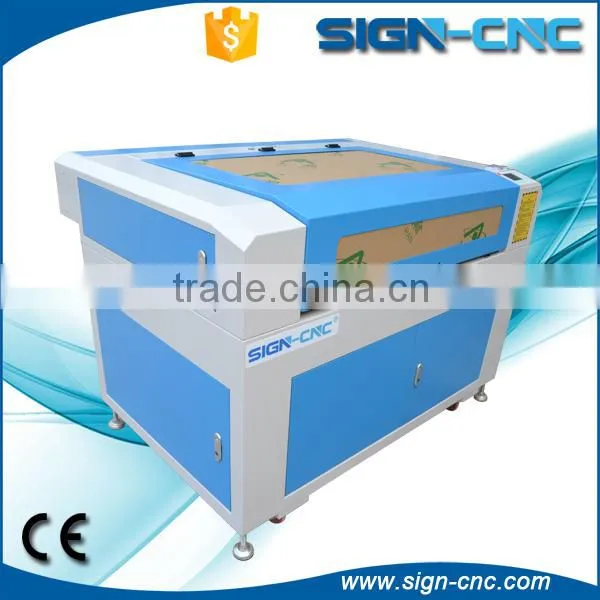

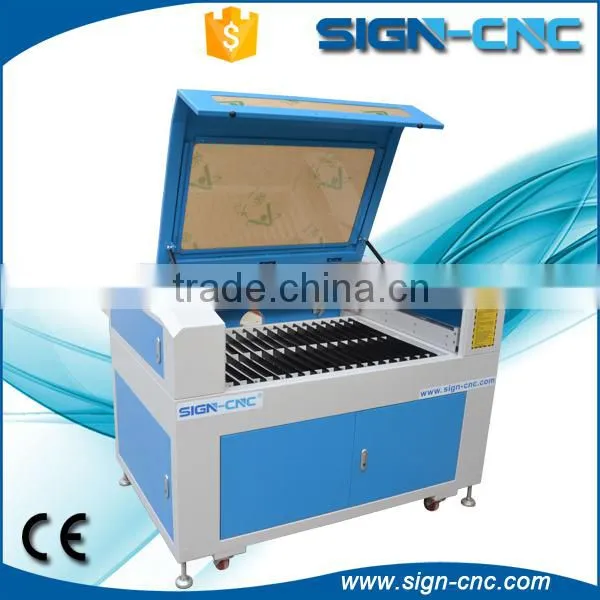

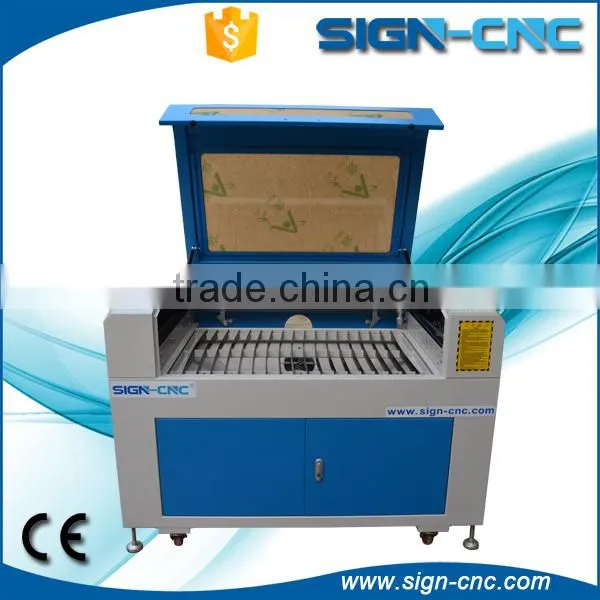

60w 80w 100w 120w 150w 2016 Acrylic/ Leather/ Wood/ Cloth/ Fabric 3d Laser Engraving Machine for carvings
Machine Features:
1. 3mm Cold-rolled steel welded machine bed, strong and running stable.
2. CO2 Glass sealed laser tube
China famous brand (Weeson, Reci), good beam mode stability, service time over 1500~8000 working hours.
3. Laser Power
40W~180W, good quality and stable output to prolong the laser tube service time.

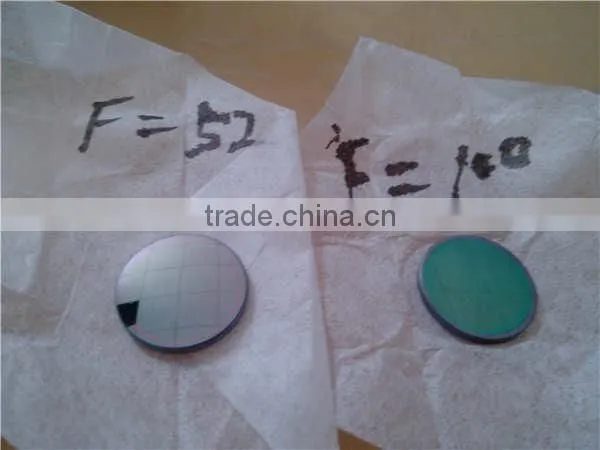

4. Singapore imported lens and mirrors
High transmittance, good focusing, reflecting effect.

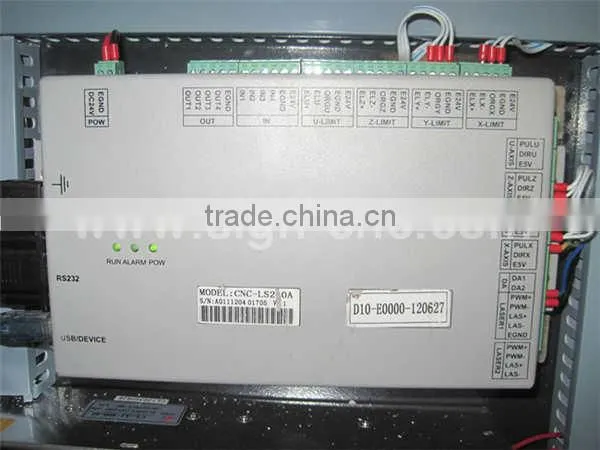

5. DSP control system, laser engraving and cutting or Leetro Controller
USB interface, support online/offline working, English language system, adjustable cutting speed and power.
6. High accuracy stepper motors and drivers. Belt transmission

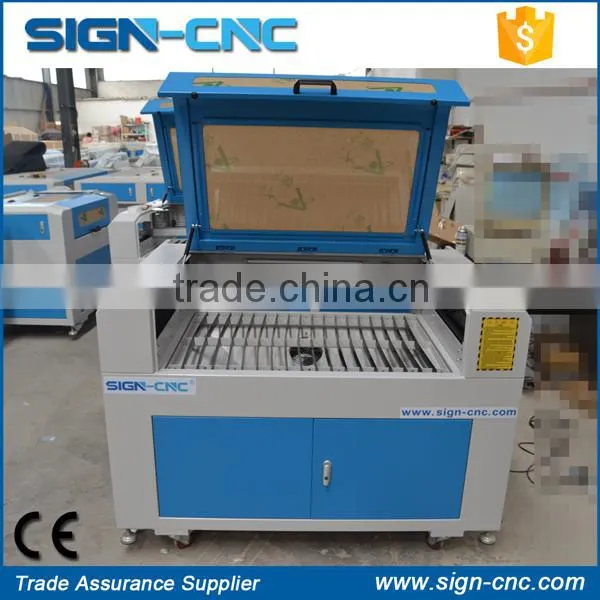

7. Aluminium blade table: to process hard materials like acrylic, wood and so on.
8. Tiwan Hiwin Linear square guide rails, more precision
9. Laser engraving and cutting or Lasercut 5.3 software, user’s manual
10. Transmit files directly in CorelDraw, AutoCAD etc.
11. Tool box: A set of wrenches, lens cleaning paper, a pack of screws, a spare limit switch, a lens removal tool, manual, CD, U disk, a focal length of stick
Applicable industries:
Advertisement, arts and crafts, gift, shoes, toys, computers, garments, model cutting, building, packaging, paper industry.
Applicable Materials:
Non-metal materials such as fabrics, label, rubber, marble, granite, tiles, paper boards, leather, embroidery, acrylic, glass, plastic, MDF, wooden plates and paper ware etc.
Technical Parameter:
Item / Model |
SIGN-9060 |
Cutting area |
900 x 600mm |
Laser power |
60w/80w/100w |
Laser type |
CO2 sealed laser tube,water-cooled,10.6um |
Engraving speed |
0-60000mm/min |
Cutting speed |
0-40000mm/min |
Laser Output |
1-100%software setting |
Resetting positioning accuracy |
≤±0.01mm |
Power supply |
220V/50HZ (Optional 110V/60HZ) |
Operating temperature |
0 - 45°C |
Operating humidity |
5 - 95% |
Min. shaping character |
English 1.0 x 1.0mm |
Graphic format supported |
BMP, PLT, DST, DXF, AI |
Software supported |
TAJIMA, CorelDraw, Photoshop, AutoCAD |
Driving system |
stepper motor |
Cooling mode |
Water-cooling and protection system |
Equipment Dimensions |
1450x1100x1070mm |
Net Weight: |
260kg |
Shipping Dimensions |
1500 x 1400 x 1300mm |
Optional Spare Parts |
Up-down clump, Rotary System, Honeycomb table |
Recommended Spare Parts |
Laser Tube and Lens |
The optional accessories:

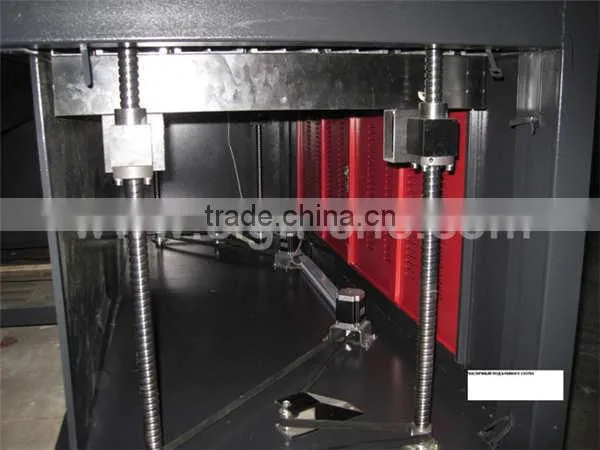

1. Up/down Z-axis: to adjust the height of table, for putting 300mm depth materials.
2. Rotary axis: to engrave cylindrical shape materials, such as pens, bottles and so on.

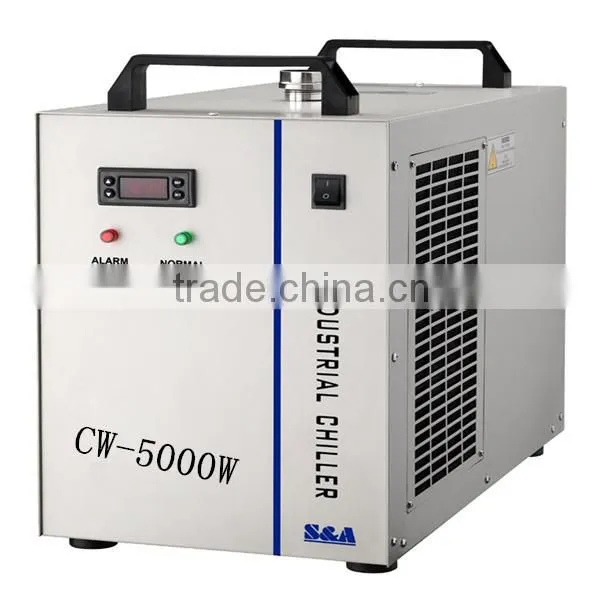

3. Chiller unit: to cool circular water.
4. Auto focus: to engrave uneven surface.
5. Red point for position: The laser is invisible. Red dot shows the position of the laser on the material, quickly find the position.

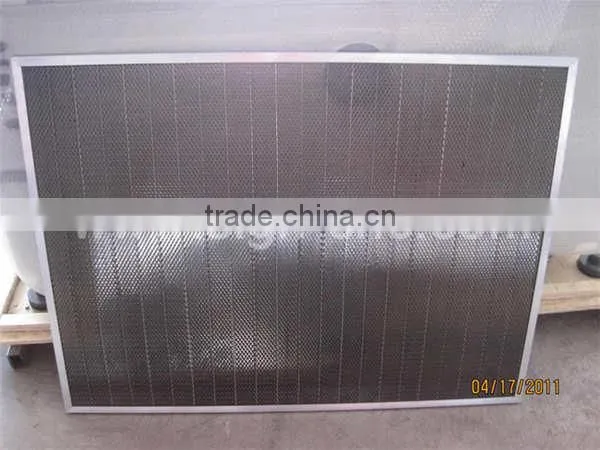

6.Honeycomb platform: to engrave soft materials like paper, leather and so on.

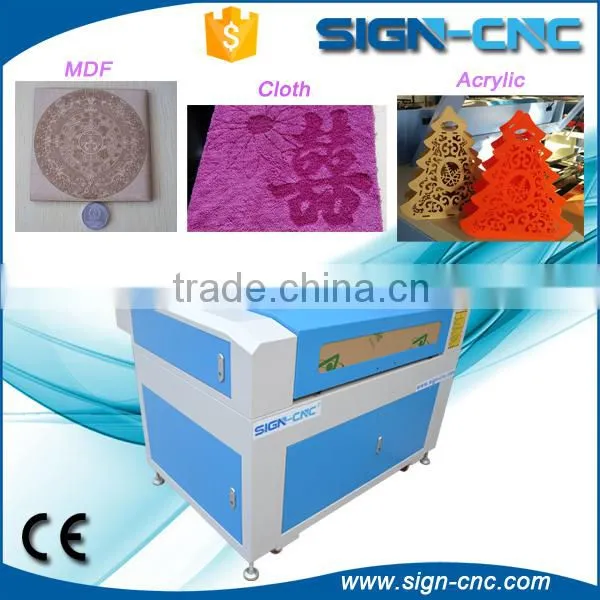

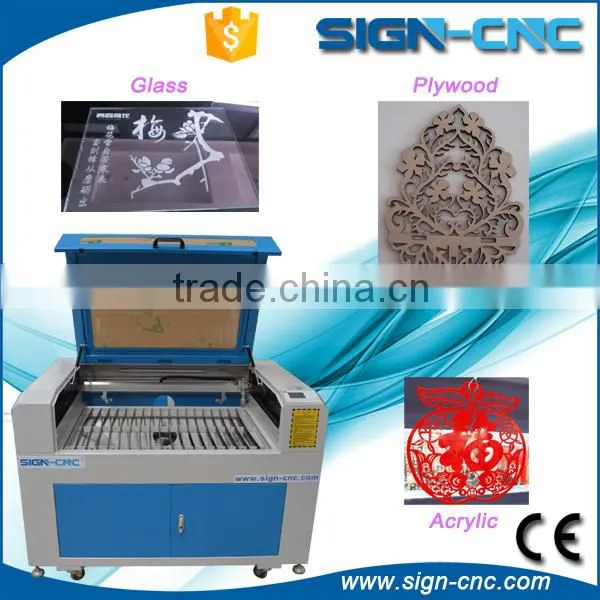

Samples display:
Machine packing:
Our Services:
1.Two year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement.
Welcome inquiry, further more information, please contact us!
