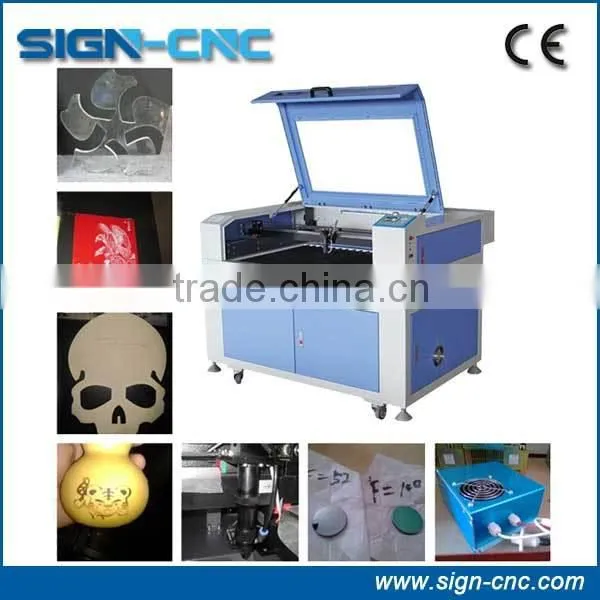

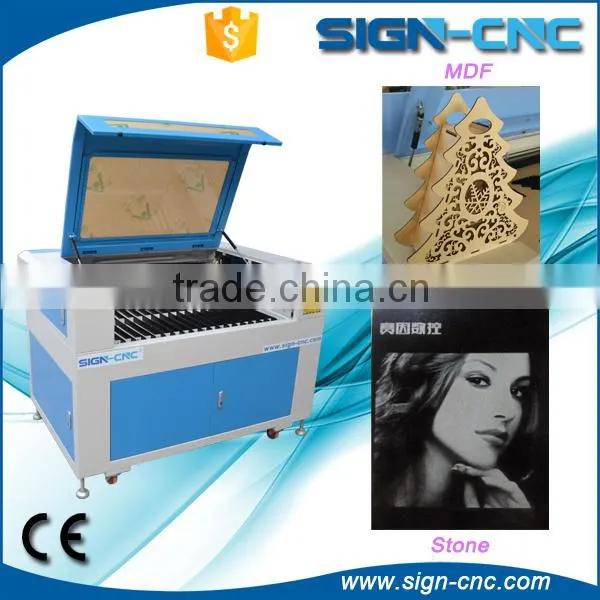

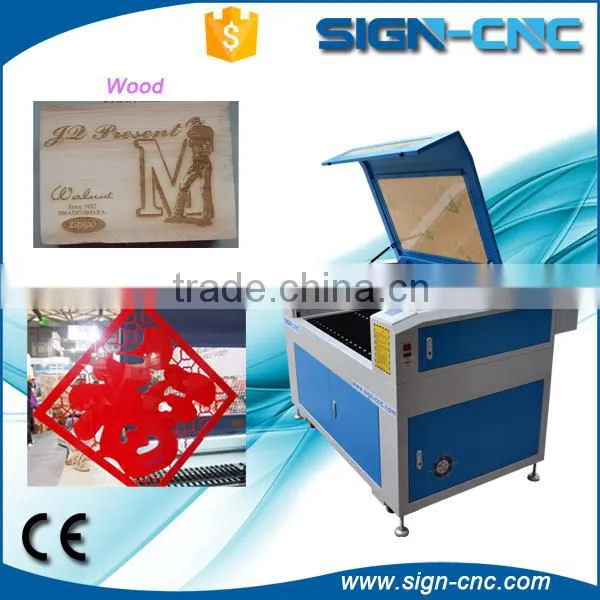

SIGNCNC 9060 baby dress cutting laser cutter machine for fabric
Applicable industries:
Advertisement, arts and crafts, gift, shoes, toys, computers, garments, model cutting, building, packaging, paper industry.
Applicable Materials:
Non-metal materials such as fabrics, label, rubber, marble, granite, tiles, paper boards, leather, embroidery, acrylic, glass, plastic, MDF, wooden plates and paper ware etc.

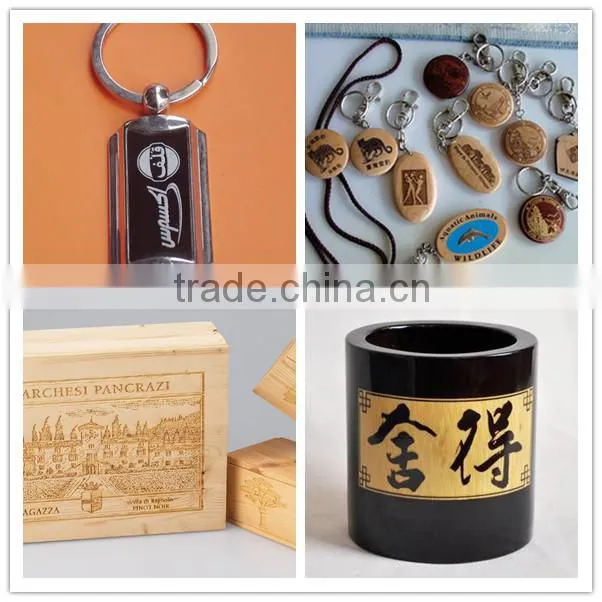

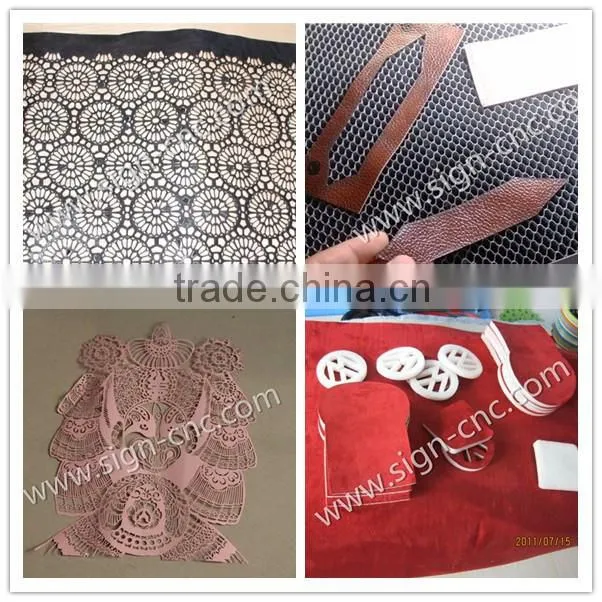

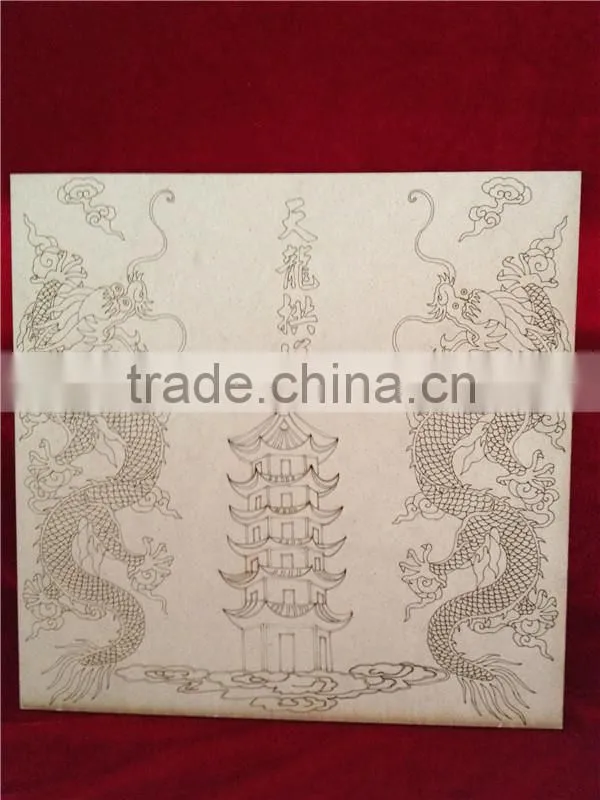

Samples:
Machine Features:
1.specially developed for advertising, gift packaging and other relevant industries.
2. with imported linear rails, which makes the machine more stable.
3.with high operating speed is easy to use, low cost, reliable engraving effects
and burr-free cutting edges.
5.The drawer is more convenient for the collection and disposal of waste.
6. can be used to engrave or cut alone on the surface of various materials.
and it can simultaneously conduct engraving and cutting.
7.The engraving depth can be easily adjusted with high precision.
Technical Parameter
Item / Model |
SIGN-9060 |
Cutting area |
900 x 600mm |
Laser power |
60w/80w/100w |
Laser type |
CO2 sealed laser tube,water-cooled,10.6um |
Engraving speed |
0-60000mm/min |
Cutting speed |
0-40000mm/min |
Laser Output |
1-100%software setting |
Resetting positioning accuracy |
≤±0.01mm |
Power supply |
220V/50HZ (Optional 110V/60HZ) |
Operating temperature |
0 - 45°C |
Operating humidity |
5 - 95% |
Min. shaping character |
English 1.0 x 1.0mm |
Graphic format supported |
BMP, PLT, DST, DXF, AI |
Software supported |
TAJIMA, CorelDraw, Photoshop, AutoCAD |
Driving system |
stepper motor |
Cooling mode |
Water-cooling and protection system |
Equipment Dimensions |
1450x1100x1070mm |
Net Weight: |
260kg |
Shipping Dimensions |
1500 x 1400 x 1300mm |
Optional Spare Parts |
Up-down clump, Rotary System, Honeycomb table |
Recommended Spare Parts |
Laser Tube and Lens |
SIGNCNC9060 Laser machine infos:
1.Lens ---USA ZnSe 63.5 dia22mm focus lens or 50.8 dia 20mm
2.Reflective mirror ----USA Molybdenum mirror dia25mm or dia27mm
3.Stepper----leadshine stepper motor and driver /Servo motor
4.Guiderail---TAIWAN linear Guide rail,
5.Belt---Germany belt more difficult to grind.Hi precision gear
6.Laser tube---Chengdu/Shanghai or Reci brand laser tube, good beam to cut

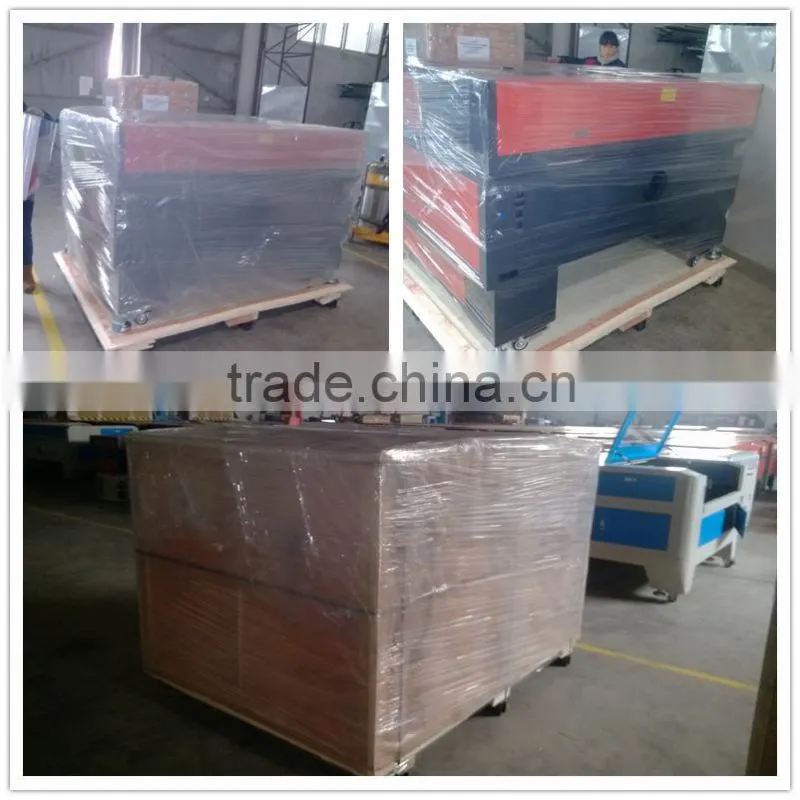

Packing:

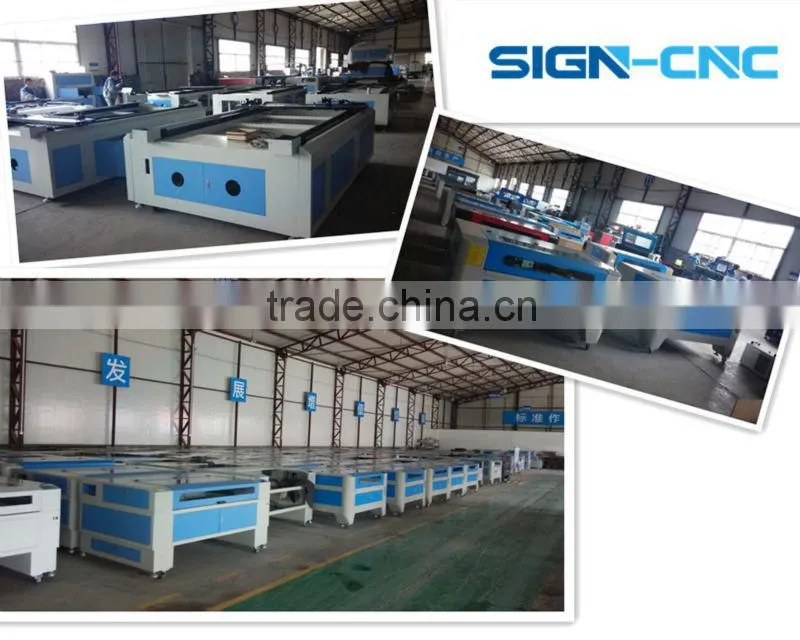

Welcome to visit our factory:
Our Services
1.Two year warranty time, we can repair and replace parts for free in one year. 2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers. 5.We provide the consumable parts at agent price when you need replacement
Please feel free to contact me for more information.
