Specifications
Plastic Making Machine1Applicable to blow plastic films like LDPE, HDPE, LLDPE
2Widely used for food, cloth, garbage bag.

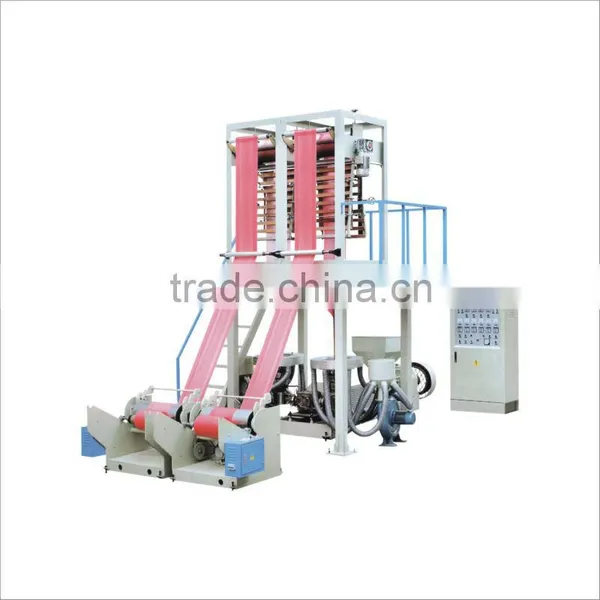

SJ65-FM800Plastic Making Machine
Description:
Both the cylinder and the screw of the extruder are made of high quality alloy steel through nitration and precision finishing with the best hardness and corrosion resistance, Scientifically designed, this machine set has two heads for one extruder with such advantages as increasing production capacity, saving energy, labor and workshop area, etc.
USE:
This machine set is used for blowing low density polyethylene(LDPE) and high density Polyethylene(HDPE)plastic film to make various and flat-rimbags which have been widely used for packing in the food industry, garment industry and textile industry, etc.
Feature:
1).This machine is designed to produce plastic film made of low density polyethylene (LDPE).high
Density polyethylene(HDPE).Linear low density polyethylene(LLDPE).
2).The machine is specially designed to produce products with small size, which can improve the production efficiency. It is the ideal choice for the traders.
3).With high output, low energy consumption, good stability and reliability.
4) .The products are widely used in application of package of civil and industrial products such as food, garment, textile and daily necessities etc. It includes vest bag, shopping bag, garment bag and food bag.
Main Technical Variables
Model |
SJ55-FM700 |
SJ55-FM800 |
screw diameter |
Φ60 |
Φ65 |
screw ratio L/D |
28:1 |
28:1 |
screw speed |
15-100r/min |
15-100r/min |
main motor power |
18.5kw-22kw |
22kw-30kw |
extrusion output(single) |
50-60kg/h |
60-80kg/h |
range of die |
Φ50×2/Φ80×2 |
Φ100×2/Φ150×2 |
single-sided thickness of film |
0.008-0.10mm |
0.01-0.10mm |
max folding width of film |
600mm |
800mm |
electric total capacity |
44kw |
58kw |
overall dimension |
4000×3500×4200 |
4500×4500×4500 |
weight of machint |
3.8T |
4.5T |
