Specifications
film extruder machine1.high quality
2.high effciency and high finished products
3.delivery date 30-45days
4.cheaper price

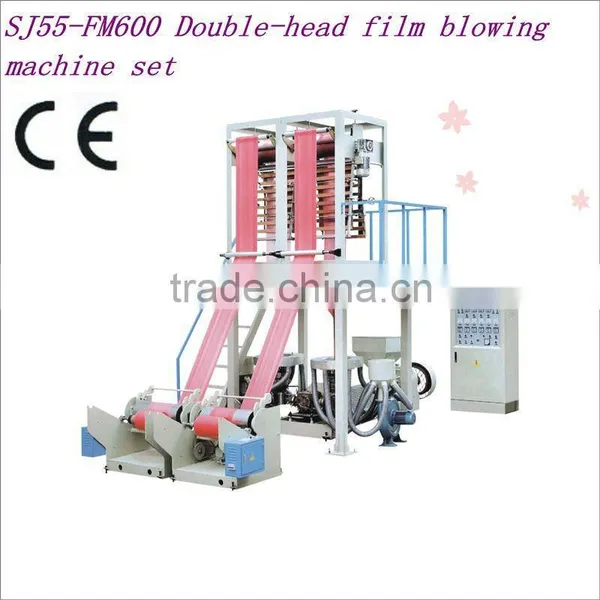

Double head film extruder machine set
---------------------------------------------------------------------------------------------------------------------
Characteristics:
Both the cylinder and the screw of the extruder are made of high quality alloy steel through nitration and precision finishing with the best hardness and corrosion resistance,Scientifically designed,this machine set has two heads for one extruder with such advantages as increasing production capacity,saving energy,labour and workshop area,etc.
USE
This film extruder machine set is used for blowing low-density polrethylene(LDPE)and high-density Polyethylene(HDPE)plastic film to make various and flat-rimbags which have been widely used for packing in the food industry,garment industry and textile industry,etc.
film extruder machine main technical variables:
Model |
SJ55-FM700 |
SJ55-FM800 |
screw diameter |
Φ60 |
Φ65 |
screw ratio L/D |
28:1 |
28:1 |
screw speed |
15-100r/min |
15-100r/min |
main motor power |
18.5kw-22kw |
22kw-30kw |
extrusion output(single) |
50-60kg/h |
60-80kg/h |
range of die |
Φ50×2 orΦ80×2 |
Φ100×2 orΦ150×2 |
single-sided thickness of film |
0.008-0.10mm |
0.01-0.10mm |
max folding width of film |
600mm |
800mm |
electric total capacity |
44kw |
58kw |
overall dimension |
4000×3500×4200 |
4500×4500×4500 |
weight of machint |
3.8T |
4.5T |
