YT-4800 Flexographic Printing Machine
- ningbo shanghai
- T/T
You May Like
Product Details
| Condition | New | Application | Other, Machinery & Hardware | |
| Packaging Type | Cartons | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Pneumatic | |
| Power | 26kw | Place of Origin | Zhejiang, China | |
| Brand Name | HuaNa | Model Number | YT-4800 |
Product Description
Specifications
YT-4800 Flexographic printing machine:1. Easy operation
2.flexible starting,
3.accurate color register.
4. high-speed rota

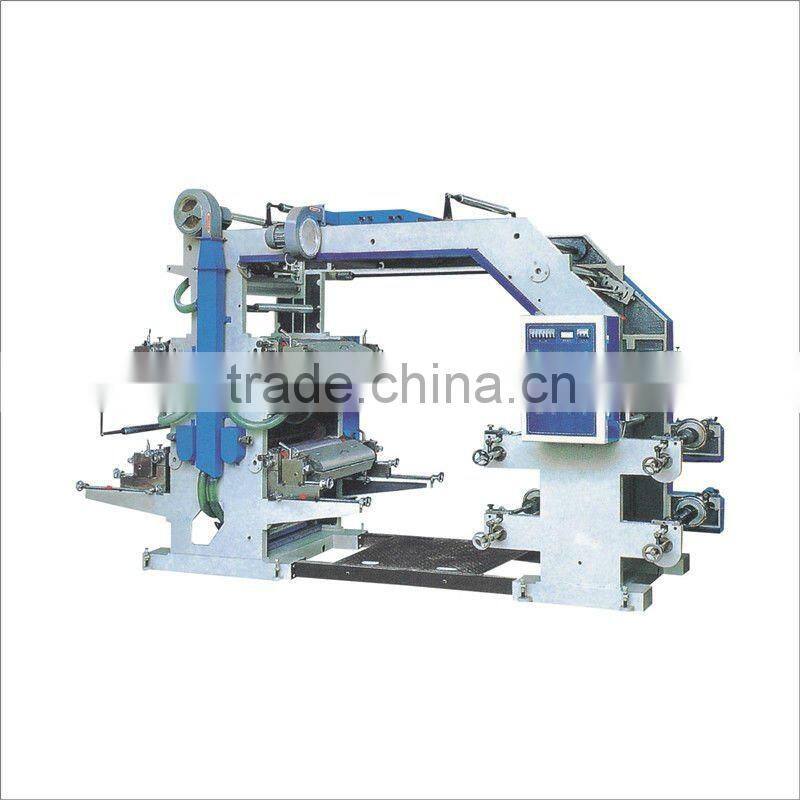

YT-4800 Flexographic printing machine
Application:
Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Main Technical Parameter:
TYPE | YT-4800-4color-flexo press | |
Max.width of material | 800mm | |
Max.printing width | 760mm | |
Max.printing speed | 50m/min | |
Max.Mechanical speed | 60m/min | |
Max. unwinding and rewinding diameter of Roll Material | Φ450mm | |
Internal Diameter of Roll Core | φ76mm | |
Cylinder diameter | φ400mm(Customer can order other sizes) | |
Rang of Repeat Printing Length | 191-914mm | |
Plate Thickness(Bothside adhesive included) | 2.38mm | |
Accuracy of Registration | Vertical | +/-0.25mm |
Horizontal | ||
Tension control range | 0-25kg | |
Heating Power | 10.5kw | |
Main motor power | 15kw | |
Total power | 26kw | |
Weight of Machine(film packing dimension) | 3500kg | |
Machine dimension(L x W x H)(film packing dimension) | L4300×W1900×H2500mm | |
Wooden packing Dimension | L4450×W2050×H2650mm | |
