Specifications
Sine wave Output;Intelligent Battery Charging;
Modular Stackable Design;
High Operating Efficiency;
Bug Proof Chassis;
Outback Solar Inverter/ Charger 3500W
OutBack Power’s true sinewave inverter/charger is a complete power solution. It incorporates a DC-to-AC sinewave inverter, battery charger and an AC transfer relay housed within a die-cast aluminum chassis. Intelligent multistage battery charging reduces generator run-time and prolongs the life of your batteries. Built-in networked communications enables multiple units to be stacked and connected with other OutBack power electronics providing industry leading integration and near infinite application flexibility. The exclusive modular system architecture means that increased power output is just an additional inverter/charger away.
Our flagship FX series uses a sealed chassis that can operate in the harshest environmental conditions such as areas with high humidity, corrosive salt air, sand or dust. The VFX series uses a vented chassis with bug proof screened openings that allow high output AC power in the hottest of operating conditions.
OutBack Power Inverter/Chargers are the only choice when you need a true sinewave, powerful, modular and reliable power solution for your home, business or extreme application.

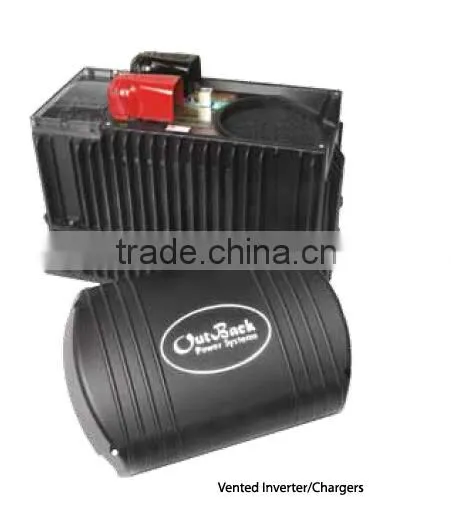

Vented VFX Product Highlights:
• Sine wave Output
• Intelligent Battery Charging
• Modular Stackable Design
• High Operating Efficiency
• Bug Proof Chassis
• Corrosion Resistant Internal Components
• Field Serviceable
• Integrated Network Communications
• Standard 5 Year Warranty
VFX3024E Specifications:
Vented Model |
VFX3024E |
Nominal DC Input Voltage |
24VDC |
Continuous Power Rating at 25°C (77°F) |
3000VA |
AC Voltage/Frequency |
230VAC 50HZ |
Continuous AC RMS Output at 25°C (77°F) |
13.0 Amps AC |
|
Idle Power Full Search |
~ 20W |
~ 6W | |
Typical Efficiency |
92% |
|
Total Harmonic Distortion Typical Maximum |
2% |
5% | |
Output Voltage Regulation |
± 2% |
|
Maximum Output Current Peak RMS |
35 Amps AC |
25 Amps AC | |
|
AC Overload Capability Surge 5 Second 30 Minutes |
5750VA |
4800VA | |
3300VA | |
AC Input Current Maximum |
30 Amps AC |
AC Input Voltage Range (MATE Adjustable) |
160 to 300VAC |
AC Input Frequency Range |
44 to 56Hz |
DC Input Voltage Range |
21.0 to 34.0VDC |
|
Temperature Range Rated Maximum |
0°C to 50°C (power derated above 25°C) |
-25°C to 60°C | |
Continuous Battery Charge Output |
85 amps DC |
Warranty |
85 amps DC |
Weight |
61 lbs (28 kg) |
Shipping |
67 lbs (31 kg) |
|
Dimensions (H x W x L) Unit Shipping |
12 x 8.25 x 16.25” (30 x 21 x 41 cm) |
21.75 x 13 x 22” (55 x 33 x 56 cm) |

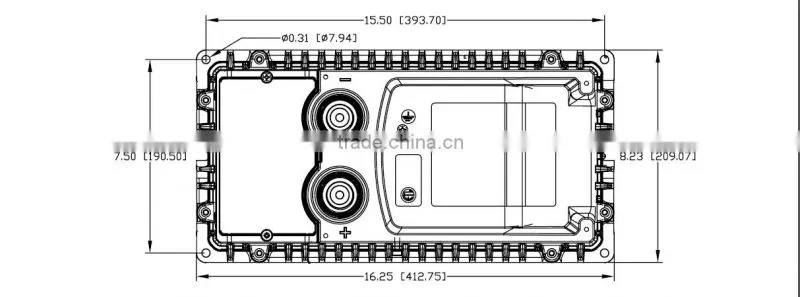

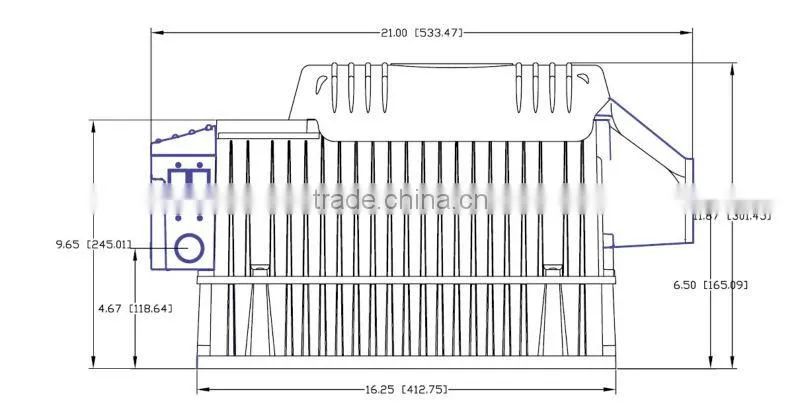

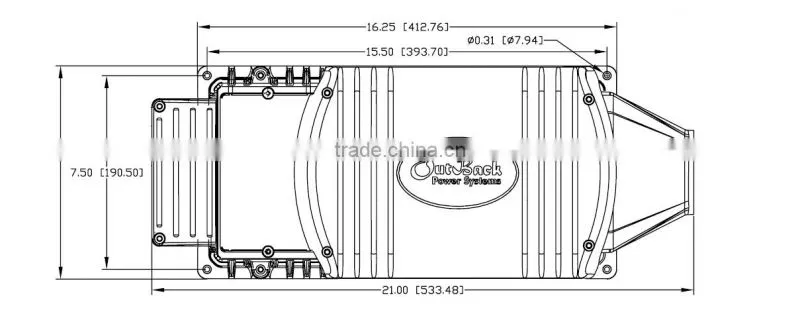

Dimension Drawing:
