Help CenterParaWatt Pure Sine Wave Power Inverter 1000Watt
Related Products
Specifications
1.remote switcher feature2.display inverter parameters remotely
3.Intelligent cooling fan speed control determined by loads.

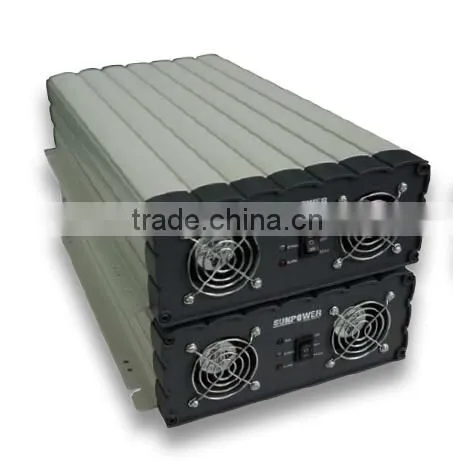

ParaWatt pure sine wave power inverter 1000Watt
Product Information:
ParaWatt series inverter is a leading product in the industry, which has high cost performance. LED indicating lights can work under -25°C ambient temperature. The single version display mode REMOTE01 can display the parameters through LCD also.
Designed with the highest standards in the industry, ParaWatt series inverter realizes remotely controlled, intelligent and high efficiency. The optional data loggers ADM-01, ADM-BLUE, ADM-GPRS can realize monitor and control function through computer, blue-tooth, GPRS respectively, and can monitor and control several inverters at the same time.
Advanced circuit design and high standard choice of components maximized its adaptability to inductive and capacitive loads. ParaWatt series inverter can be used in cars, yachts and solar systems. The superior performance and reliable quality makes ParaWatt series inverter the best choice for your requirements.
Intelligent and high efficiency :
• Intelligent ‘power saving mode‘, no higher than 5W.
• Intelligent cooling fan speed control determined by loads.
• Pure sine wave output(THD<3%) for wide range of applications and different environment.
Convenient :
• Modular design enables more flexible and room saving way to combine and split.
Safety and reliability:
• Input/output isolated design maximized the operation safety.
• Intelligent multiple protection: Input low voltage / Overload / Short circuit / Low battery alarm / Input over voltage / Over temperature.
Remote control :
• Remote switcher feature.
• Display inverter parameters remotely.
Specifications:
ParaWatt pure sine wave power inverter 1000Watt:
Model |
Rated output power |
1000i |
800w |
bc |
Nominal DC voltage |
12 |
12Vdc |
24 |
24Vdc |
48 |
48Vdc |
a |
Nominal AC voltage |
1 |
100/110/120Vac |
2 |
220/230/240Vac |
Output | ||
Nominal AC voltage |
220/230/240Vac 100/110/120Vac |
|
AC power frequency |
50/60Hz±0.1% |
|
Max. efficiency |
90% |
|
Output THD |
<3% |
|
Crest factor |
3:1 |
|
Input | ||
Nominal DC voltage |
12Vdc/24Vdc/48Vdc |
|
Voltage range |
10.5-15.5Vdc(*1,*2, *4) |
|
No load current draw |
≤5W, power saving mode |
|
Interface |
RS485 |
|
Operation condition | ||
Humidity |
Operation humidity≤90%, storage and transportation humidity ≤95% |
|
Altitude |
≤3000m (if altitude ≥1000m, power derated 1% as altitude raise 100m) |
|
Working temperature |
-25°C ~ +50°C (derated when T>40°C) |
|
Storage temperature |
-30°C ~ +70°C |
|
General data | ||

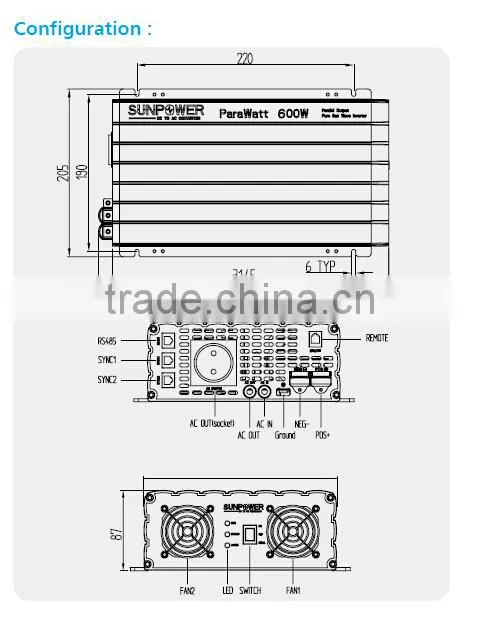

Dimension |
334mm x 205mm x 87mm |
|
Weight |
3KG |
|
Safety | ||
Safety standards |
EN60950-1, IEC62109 |
|
EMC standards |
EN55022, EN55024, Class A |
|
Protection | |
Input low voltage protection |
10.5V/21V/42V protect, 11V/22V/44V alarm (automatically recovery or not automatically recovery can be factory set) |
Reverse current protection |
Fuse |
AC input over voltage |
120% rated voltage |
AC input low voltage alarm |
80% rated voltage |
Output over current point1 |
10m 125% |
Output over current point2 |
10s 150% |
Output short circuit protection |
Recovery |
Over temperature protection |
90°C recovery |
Fan fault protection |
Turn off output, alarm |

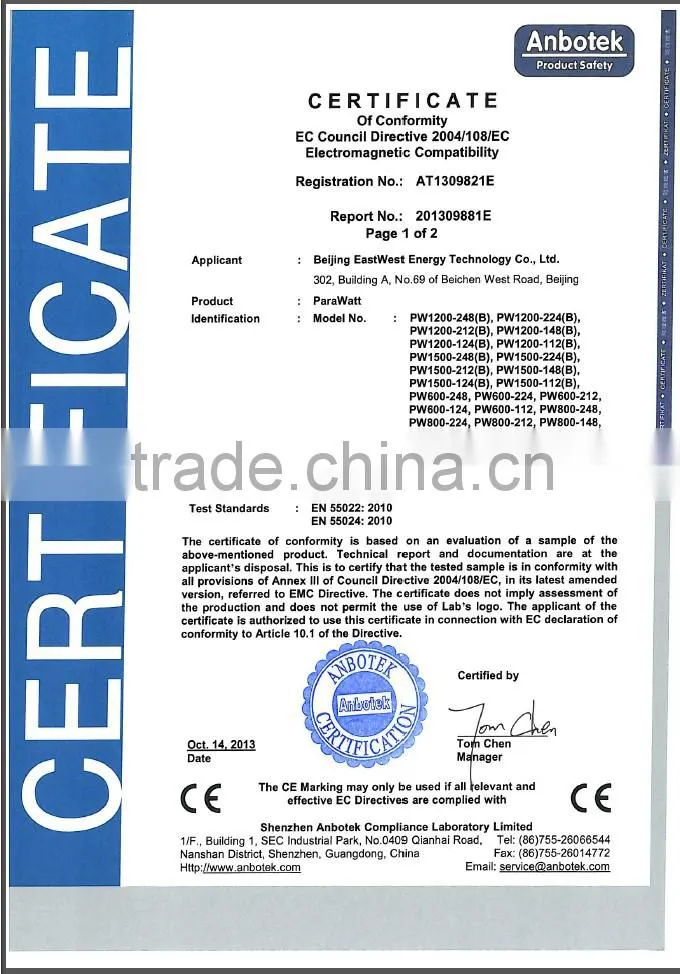

Certificate:
