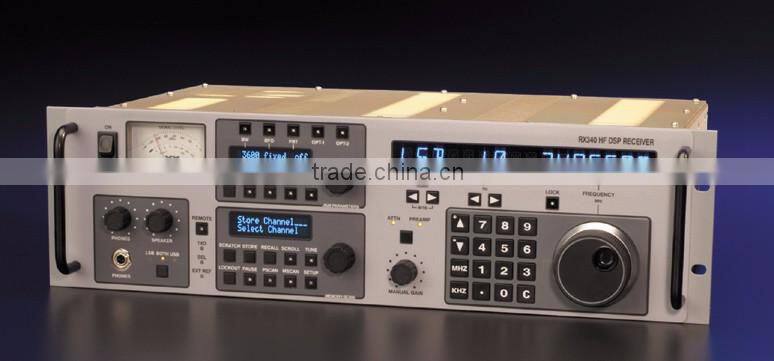

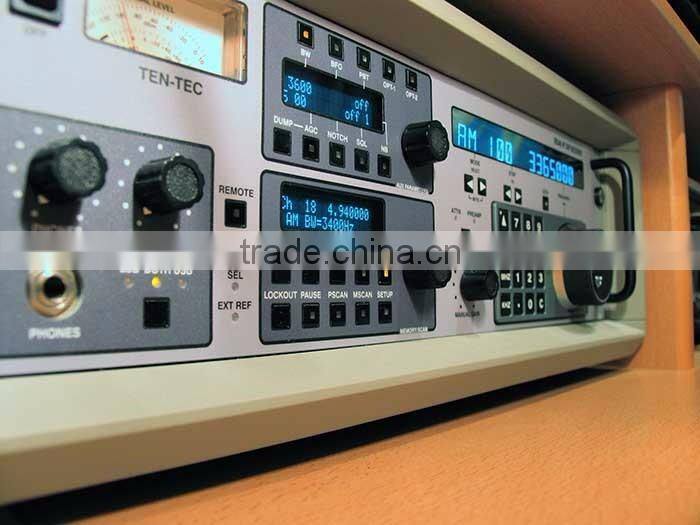

TEN-TEC RX-340,5 KHz to 30 MHz,HF Radio

TEN-TEC RX-340,5 kHz to 30 MHz,HF radio

Frequency Range ..... 5 - 30000 kHz
Modes ............... AM/USB/LSB/ISB/CW/FM/AM-Sync.
Power ............... 90 - 264 VAC 48-440 Hz 30 Watts
Antenna Input ....... 50 ohm unbalanced BNC
Selectivity (-6dB) .. 57 bandwidths selectable from 0.1 kHz to 16 kHz.
Shape factor 1.5:1 or better. 6 to 60 dB.
100 350 1000 1800 3200 5600 9600 16000
120 400 1100 1900 3400 6000 10400
150 450 1200 2000 3600 6400 11200
170 500 1300 2200 3800 6800 12000
200 600 1400 2400 4000 7200 12800
220 700 1500 2600 4400 7600 13600
250 800 1600 2800 4800 8000 14400
300 900 1700 3000 5200 8800 15200
(ISB fixed at 3.2 kHz, S-AM fixed at 6 kHz.)
Sensitivity ......... <.14 µV CW .5-30 MHz (10 dB S+N/N) Typical. Preamp on.
<.25 µV LSB/USB/ISB
<.56 µV AM
<.90 µV FM
Stability ........... 1 PPM (0-50° C.)
AGC ................. Fast 0.8 dB/ms attack, 0 hang, 1200 dB/sec Decay
Med 0.8 dB/ms attack, 0 hang, 100 dB/sec Decay
Slow 0.8 dB/ms attack, 0 hang, 25 dB/sec Decay
Prog. 0.01-1 dB/ms attack, 0.01-99.9 hang, 0.01-99.9 dB/sec Decay
Ext. Ref. ........... 1, 2, 5 or 10 MHz.
IF Output Post DSP... 455 kHz Center Frequency, bandwidth determined by filter selected
IF Rejection ........ 90 dB typical, 80 dB minimum
Image Rejection ..... 90 dB typical, 80 dB minimum
Ultimate Rejection .. 70 dB minimum regardless of filter selected
Second Ord. Intercept 75 dBm typical
Third Order Intercept 30 dBm typical
Synthesizer Lock .... 10 msec typical
BFO ................. Tunable in CW only 8 kHz in 10 Hz steps. Fixed in SSB/ISB.
Wideband Output ..... First Mixer: 45.555 MHz Center Frequency
Audio Line Output.... Two 600 ohm (one for each sideband in ISB)
Headphone Output .... ¼ inch. Stereo in ISB, switchable to LSB, USB or both. Mono in other modes.
Passband Tuning ..... 2 kHz in USB, LSB and CW
Spurious Responses... Less than -119 dBm equivalent input - preamp on.
LO Phase Noise ...... -120 dBc/Hz @20 kHz offset typical, -110 dBc/Hz maximum.
Memories ............ 100 channels (frequency, mode, bandwidth, BFO settings).
RS-232 Port ......... 75 to 38,400 baud.
Circuit Type ........ D.S.P.
Environment ......... 0-50° C (32-122° F)
Dimensions .......... 19" x 5.25" x 12.5" 482x133x317 mm
Weight .............. 12.5 lbs. net (5.7 kg)
