RFI CD2197 - 7.5dBi 3G Bullbar Mobile Antenna
RFI CD2197 - 7.5dBi 3G Bullbar Mobile Antenna

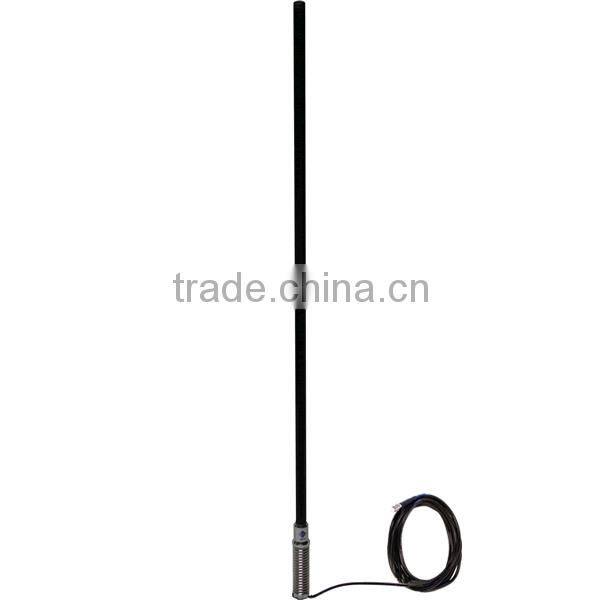

RFI CD2197 3G Mobile Phone Bullbar Antenna
- Cutting edge printed circuit board design
- Widely used by government & emergency services
- Supplied with 5m low loss coaxial cable, with female FME connector.
Trusted by farmers, travellers, and industry professionals Australia wide, this antenna consistently demonstrates a high gain across all Australian mobile phone networks. With a higher gain than the CD2195, the RFI CD2197 achieves a wider reception pattern making it an ideal antenna for outback areas.
Typical Usage
As a rule of thumb: the higher the dBi, the flatter the angle the antenna can receive from. In hilly areas cell towers are usually located at the peak of the hill, and if you've got a very high gain antenna (like 9dBi) chances are the antenna won't have a tall enough angle to receive from the tower.
The CD2197's 7.5dBi gain is an excellent compromise between high/low gain, making it the ideal antenna if you live or work in remote areas - low enough to work when you're in town and travelling through hilly areas, but truly comes to life when out in remote and flat areas.
A "Q-Fit" quick-removable whip version of this antenna is available, please see CDQ2197.
With a 13mm stud mount on an heavy duty electropolished stainless steel spring, these antennas may be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks. The CD2197's fully ground-independent design results in true 7.5dBi gain regardless of mounting position.
Electrical Specifications
Frequency Range: 824-960MHz & 1710-2170MHz
Input Impedance: 50Ω
VSWR: <2.5:1
Polarisation: Vertical
Radiation: Omnidirectional
Vertical Beamwidth: 18° & 40°
Maximum Power: 10Watts
Mechanical/Environmental Specifications
Construction: Fibreglass radome, PCB Radiator, electro-polished stainless steel spring
Cable: 5m Cellfoil 9006 low loss coaxial
Connector: FME Female
Length: 114cm
Weight: 0.65kg
