Specifications
1.Wire dia:0.8-6.0mm2.Width: 0.5 m, 1m, 2 m, etc
3.Length: 30 m,45 m,etc
4.Round wire, flat wire

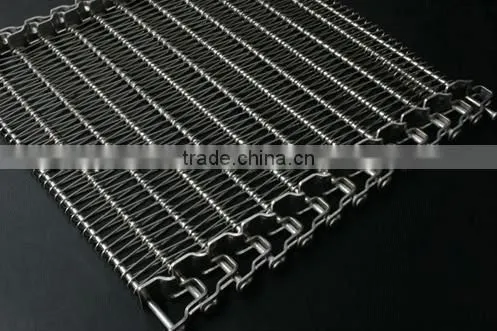

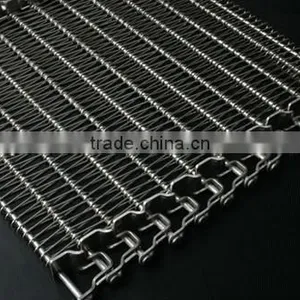

Different types of conveying belt mesh
1. dutch wire mesh Material:
SS302, SS304, SS304L, SS316, SS316L
2. dutch wire mesh Weave:
Plain Dutch Weave, Twill Dutch Weave and Reverse Dutch Weave.
3. dutch wire mesh weaving ways:
While the warp wires remain straight,the weft wires are plain woven to lie as close as possible against each other in a linen weave forming a dense strong material with small. irregular and twisting passageways that appear triangular when diagonally viewing the weave .
4. Mainly four types according to weaving patterns:
Wire Mesh Filter Cloth Dutch Plain Woven
Wire Mesh Filter Cloth Dutch Twill Woven
Wire Mesh Filter Cloth Reverse Dutch Woven
Wire Mesh Filter Cloth Five-Heddle Woven
5. Dutch weave wire mesh Performance:
Stainless steel wire mesh offers excellent acid resistance, alkaline resistance and heat resistance. Also high tensile strength and good antirust property.
6. Dutch weave wire mesh Packing:
Stainless Steel Wire Mesh is packed in rolls, wrapped with waterproof paper then covered with hessian-cloth. Special packing may be arranged if necessary.
7. Dutch weave wire mesh Uses:
Stainless Steel Wire Mesh is mainly used as screening and filtering materials in oil industry, chemical industry, electronics, grain, rubber and other industries.
Mesh |
Wire Dia. (MM) |
Material (AISI) |
12mesh x 64mesh |
0.58 x 0.40 |
304 or 316 |
24mesh x 110mesh |
0.36 x 0.25 |
304 or 316 |
14mesh x 88mesh |
0.50 x 0.33 |
304 or 316 |
30mesh x 150mesh |
0.23 x 0.18 |
304 or 316 |
40mesh x 200mesh |
0.18 x 0.13 |
304 or 316 |
50mesh x 250mesh |
0.14 x 0.11 |
304 or 316 |
80mesh x 700mesh |
0.10 x 0.08 |
304 or 316 |
165mesh x 800mesh |
0.071 x 0.040 |
304 or 316 |
165mesh x 1400mesh |
0.06 x 0.04 |
304 or 316 |
200mesh x 1800mesh |
0.05 x 0.032 |
304 or 316 |
825mesh x 2300mesh |
0.035 x 0.025 |
316L |
400mesh x 2800mesh |
0.030 x 0.02 |
316L |
4.Some pics:
if you have some questions,pls tell me ,it is my honor to help you.
Lisa
Skype:lisa41255
T:8613363876078
