3/8" Galvanized Hy-Rib Lath for stucco

Specifications

3/8" Galvanized Hy-Rib Lath
Material: galvanized, ss sheet
Thickness:0.3-0.5mm
Rib Height:5,8,10,19mm
QC:ISO

3/8" Galvanized Hy-Rib Lath for stucco



 1.Introduction of   3/8" Galvanized Hy-Rib Lath for stucco

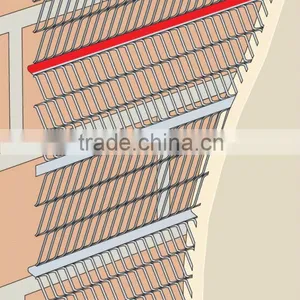

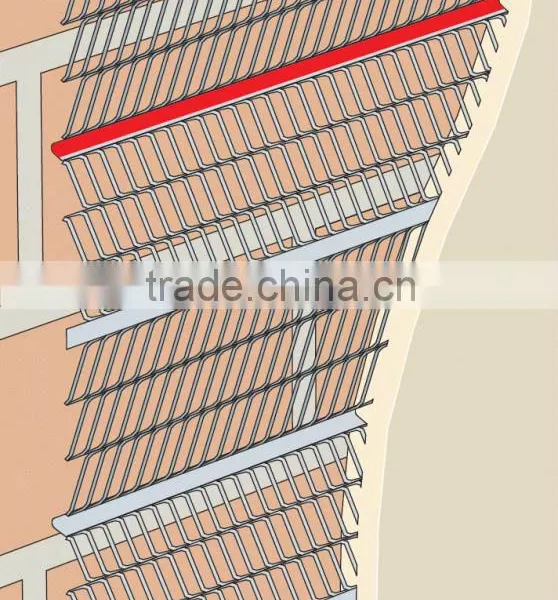

Rib-lath is expanded metal-lath stiffened with longitudinal ribs.

The furring design of the mesh provides efficient background plaster for construction of partition,

suspended ceilings and refurbishment works. The advantage of ribbed-lath over metal-lathing is that support centers can be increased or widened.





Nowadays,rib lath is widely used in the UK, France, Switzerland, Belgium, Germany, Japan,

South Korea,the Middle East and Taiwan region .



2.Specifiction of   3/8" Galvanized Hy-Rib Lath  for stucco



Rib Height(mm)	Thickness(mm)	Width(mm)
5	0.25	600-610
5	0.28	600-610
5	0.3	600-610
8-10	0.3	680
8-10	0.3	600-610
8-10	0.4	600-610
8-10	0.5	600-610
19	0.4	680
19	0.5	680





3.Benefit of   3/8" Galvanized Hy-Rib Lath for stucco



• Shortening the Time (of construction)
• Cost Efficiency
• Minimizing the Space to install
• Excellence of Finished-work (plastering and tiling)
• Quality Improvement of Concrete
• Reduction of Wasted materials
• Compatible with existing forms
• Prevention of unreliable work
• Improving the site safety



4.Application of  3/8" Galvanized Hy-Rib Lath for stucco





model	Thickness (mm)	Weight (kg)	Width (mm)	Length (mm)	Area (m2)
030	0.30	2.60	450	2200	0.99
035	0.35	3.00	450	2200	0.99
040	0.40	3.40	450	2200	0.99
045	0.45	3.80	450	2200	0.99
050	0.50	4.20	450	2200	0.99
Note: Length can be according to special requirement
