EU5 Protop - Air Input Filtration

Specifications

EU5 Protop - Air Input Filtration
gradual structure
high efficiency
cutting service is available

                                                      EU5 Protop - Air Input Filtration



Speciality:

1.applied to the air filtration for the painting factory,the spray workshop, stoving varnish room and so on.(especially be used for the automotive factory, the automobile repair shop, the motorcycle factory, the bicycle factory, the operating system of the household applianes painting.

2.made from anti-break organic synthesis fiber in high-powered high melt way

3.Gadual structure,the fibre density increases gradually toward pure air which made the efficiency much higher.

4.prevent the dust in the different densitylevel according to the size of the dust

5.The wind surface of the mash is specially compact,this structure make the filtering matirial keep the high filtering efficiency and large dust holding capacity

6.the types of the material:entire coherency,the surface viscosity,dry processin

7.DIN53438-F1,UL900-class2



SPECIFICATION:



type	C-600G	C-560G	C-350G	AF-600G	FS-600G	S-600G
avg.arrestance	99%	98%	96%	98%	98%	97%
initial resistance	30pa	35pa	30pa	45pa	35pa	35pa
final resistance	450pa	430pa	400pa	430pa	450pa	450pa
dust holding at tested final(g/m2)	650	580	380	430	620	680
thickness(mm)	22	22	18	22	22	22



REMARK:

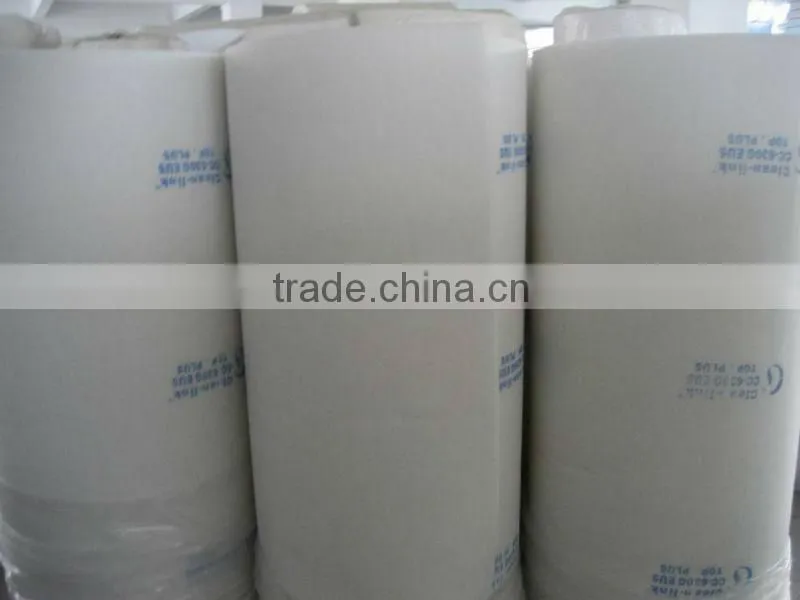

based on customer's requirements,the whole roll and all the size are supplied .It can be made into the plank filter mesh.
