Press Machine Tile Stone Outdoor Floor Line Production
- TAJIN XINGANG
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Equipment From China for the S... Stone Coated Step-tiles Roofing Sheet Machines
-
Machinery Products Sand Coated Metal Roofing Tiles Machine
-
Steels Stone Tile Making Machine Marble
-
Wall Paneling Stone Coated Roof Tile Machine
-
Machine for Small Business Stone Tile Making Machine
-
Stone Coated Roof Tile Production Line , Stone Coated Steel Roofing Tile Production Line
Product Details
| Condition | New | Type | Other, Tile Forming Machine, roof glazed tile roll forming machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 10-12M/M | Place of Origin | Hebei, China | |
| Brand Name | TIANYU | Model Number | TY stone coated | |
| Power(W) | 100kw | Voltage | 380V.50HZ.3Phase | |
| Dimension(L*W*H) | 25000*1000*1200mm | Weight | About 20 T | |
| Certification | CE &ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

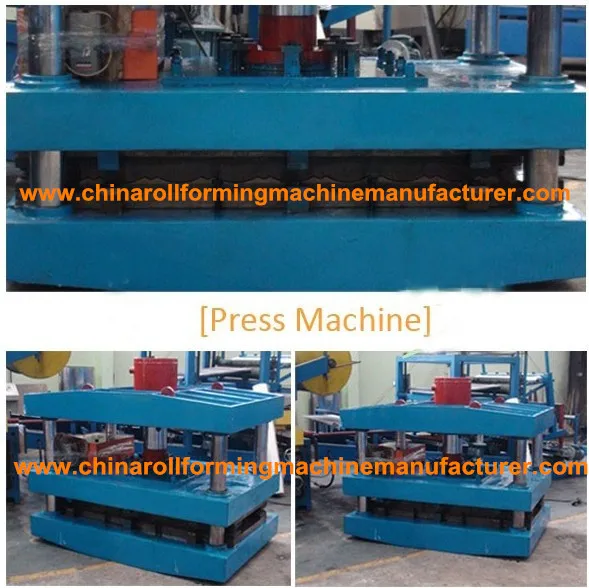

press machine tile stone outdoor floor line production
Payment terms
T/T( 30% by T/T in advance, the rest 70% to be payed by T/T after you inspect the machine in seller's factory before delivery )

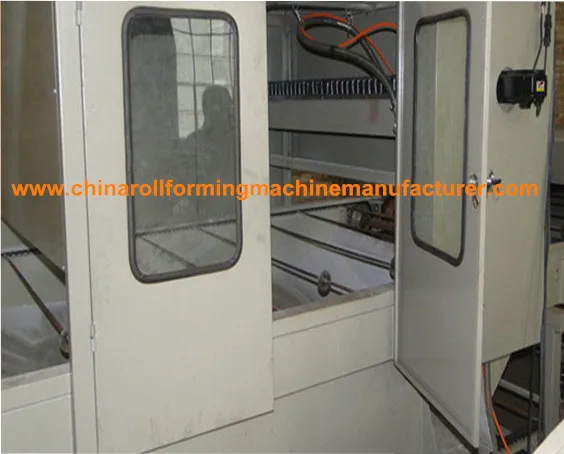

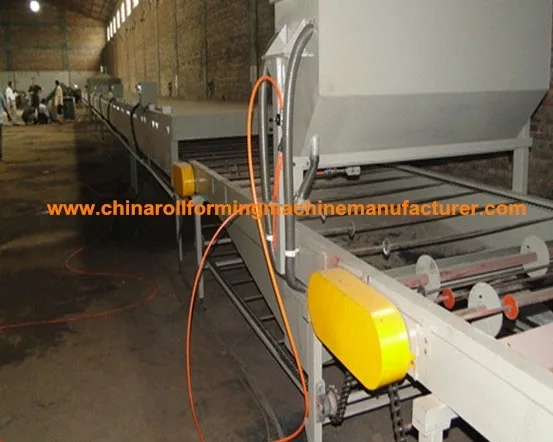

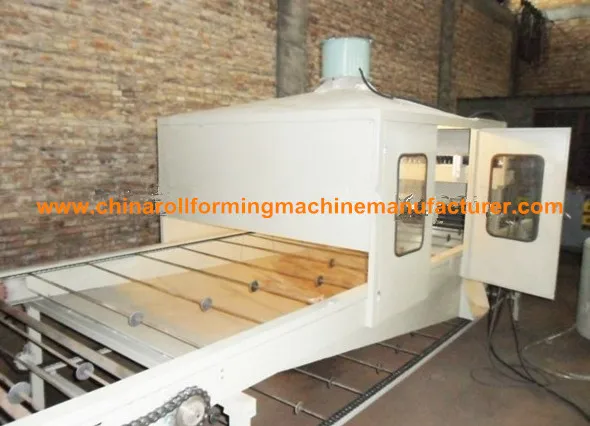

Pictures press machine tile stone outdoor floor line production
Stone coated sheet is formed by 0.4mm Al-Zn plating panel and color stones.It is modern,environmental and nice aprearance.
We developed this stone coated production line based on long time running and improvement.It is high-performance, stable,energy-efficient and easy operation.
press machine tile stone outdoor floor line production

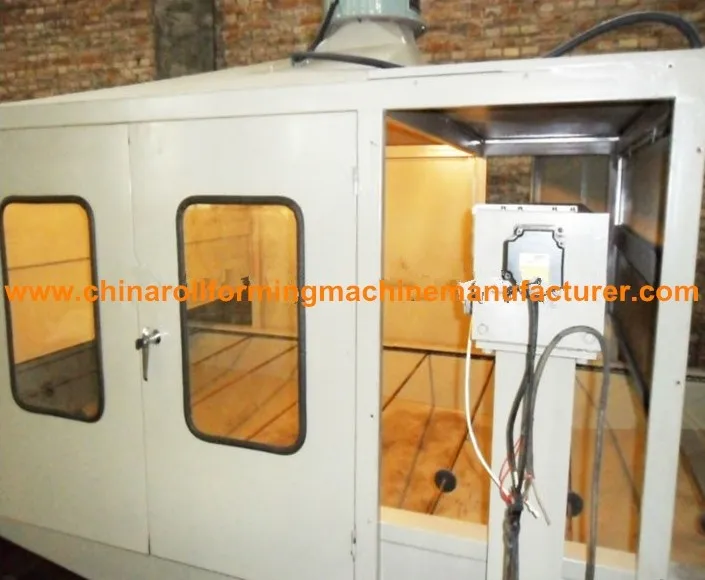

1.Auto Bottom Gule Spraying Section
| 1.Appearance Size | 4000*1000*2000mm |
| 2.Driving | 3kw excitation motor or frequency speed regulation(as per customers' requirements) |
| 3.Automatic Pressure Spray Tank | 1 set capability:200kg range:0.6~1Mpa |
| 4.Automatic Glue Machine Motor | Servo motor,power:750w,PLC |
| 5.Automatic Spray Gun | 4 set(spare parts) |
| 6.Dust Collecting Fan | 1 set power:200w |
| 7.Damp Proof Lamp | 1 piece power:100w |
| 8.Conveying Device | chain reciprocating |
| 9.Air Compressor | 1 set power:7.5kw |
| 10.Dust Control of Axial Flow Fan | 1 set power:200w |
| 11.Agitator | 1 set power:1.5kw |
2.Auto Stone Coated Section
| 1.Appearance Size | 3500*1000*1500mm |
| 2.Framework | steel welding |
| 3.Conveying Device | chain reciprocating |
| 4.Automatic Sand Hopper | 1 set capability:200kg |
| 5.Bucket Lift | 1 set |
| 6.Manual Sandblast Gun | 4 sets |

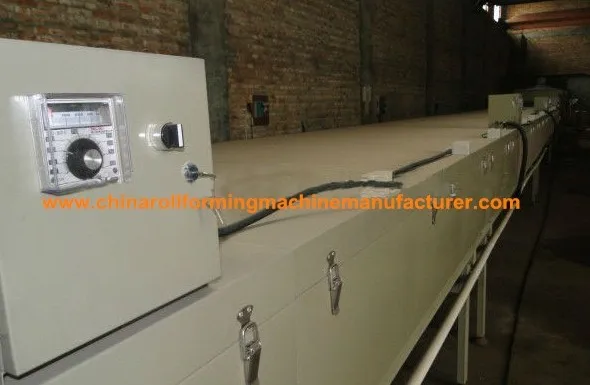

3.The First Time Drying Section

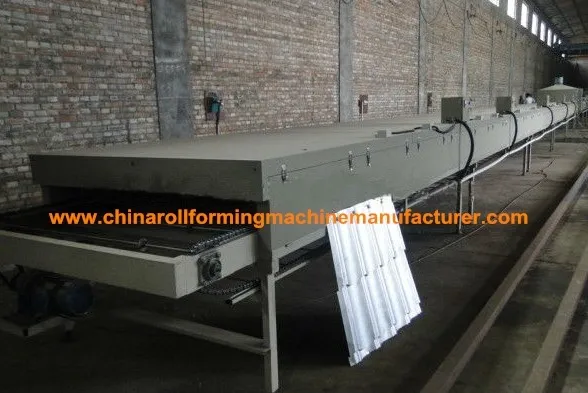

stone coated tiles production line
| 1.Appearance Size | 25000*1000*1200mm |
| 2.Framework | steel welding |
| 3.Frame Type Thermal Insulation Wall | 1.2mm cold steel with rock wool |
| 4.Automatic Temperature Controller | 4 set range:0°~160° |
| 5.Infrared Heating Tube | 30pcs power:30kw |
| 6.Conveying Device | chain reciprocating |
| 7.Air Cooling Device | 1 set power:200w |

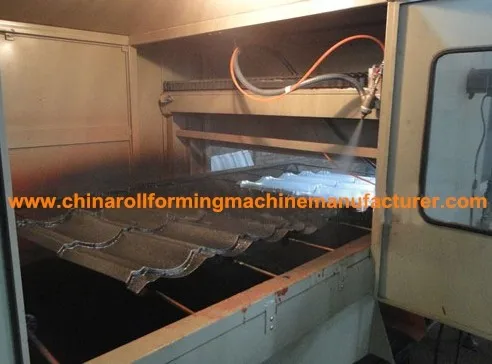

4.Auto Face Glue Spraying Section
| 1.Appearance Size | 3000*1000*2000mm |
| 2.Framework | Steel Welding |
| 3.Damp Proof Lamp | 1 piece power:100w |
| 4.Automatic pressure Spray Tank | 1 set,capability:200kg range:0.6~1Mpa |
| 5.Conveying Device | chain reciprocating |
| 6.Automatic Spray Gun | 4 sets(spare parts) |
| 7.Manual Patch Glue Gun | 4 sets |
| 8.Dust Control of Axial Flow Fan | 1 set power:200w |
| 9.Automatic Glue Machine Motor | Servo motor power:750w |
5.The Second Time Drying Section
| 1.Appearance Size | 30000*1000*1200mm |
| 2.Framework | steel welding |
| 3.Frame Type Thermal Insulation Wall | 1.2mm cold steel with rock wool |
| 4.Automatic Temperature Controller | 4 sets range:0°~160° |
| 5.Infrared Heating Tube | 30 pcs power:30kw |
| 6.Conveying Device | chain reciprocating |
| 7,Air Cooling Device | 1 set power:200w |

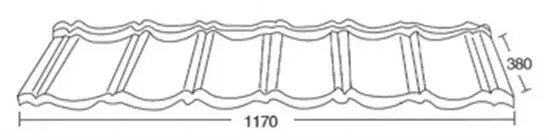

6.The Colorful Stone-coated Metal Tile Profile Drawing
This line is 65.5m long.So we need the warehouse length is about 75mm and one of 2*3 air compressor room.
About worker:
1.Panle Loading one set
2.Bottom Spraying one set
3.Fill Stone one set
4.Face Glue one set
5.Bottom Glue Mixing one set
6.Finish Goods Receiving one set
Packing and delivery
Other productions
ABOUT US
We are the manufacturers all kinds of roll forming machine, which can provide overseas after-sales service .
Our company has found for over 1 8 years since 1 9 9 6.
We are the professional manufacture to produce different kinds of roll forming machine
roof and wall panel roll forming machine
c/z purlin roll forming machine
sandwich panel production line
floor deck roll forming machine
light steel keel roll forming machine
container board roll forming machine
bending machine,cutting machine and automatic un-coiler
Trapezoidal steel roof panel roll forming machine for sale
All the parameters are only for reference, we can Joint-Hidden Roofing Sheet Roll Forming Machine as per your profile drawings.
