Specifications
high temperature wire high-voltage wire1 high quality,low price
2 professional OEM manufature
3 VDE,UL,ISO

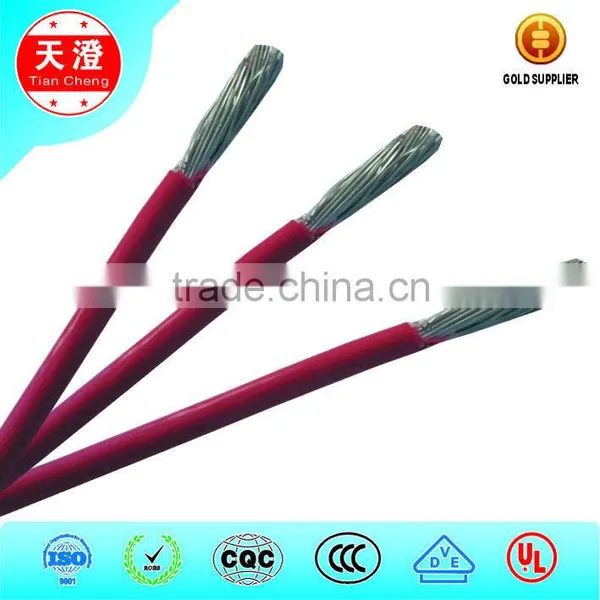

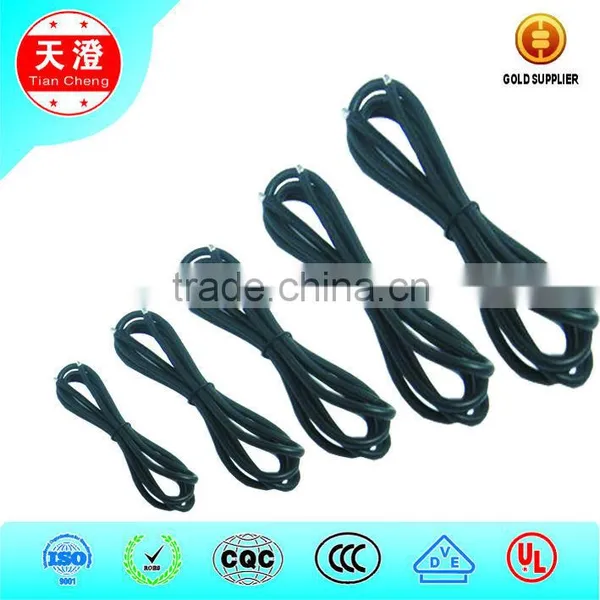

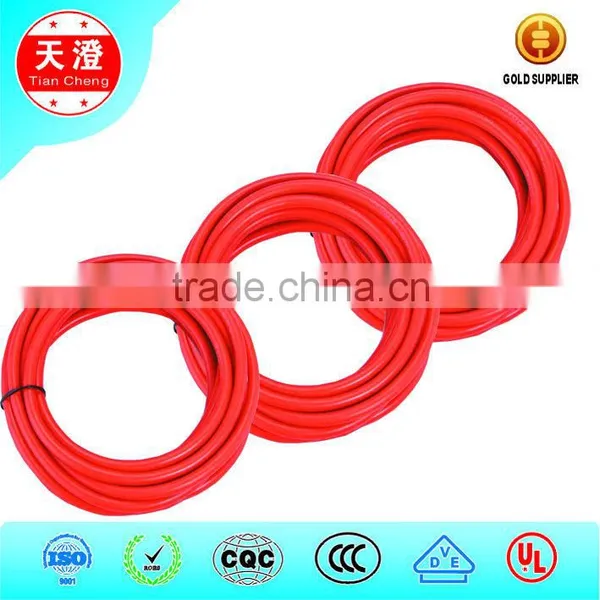

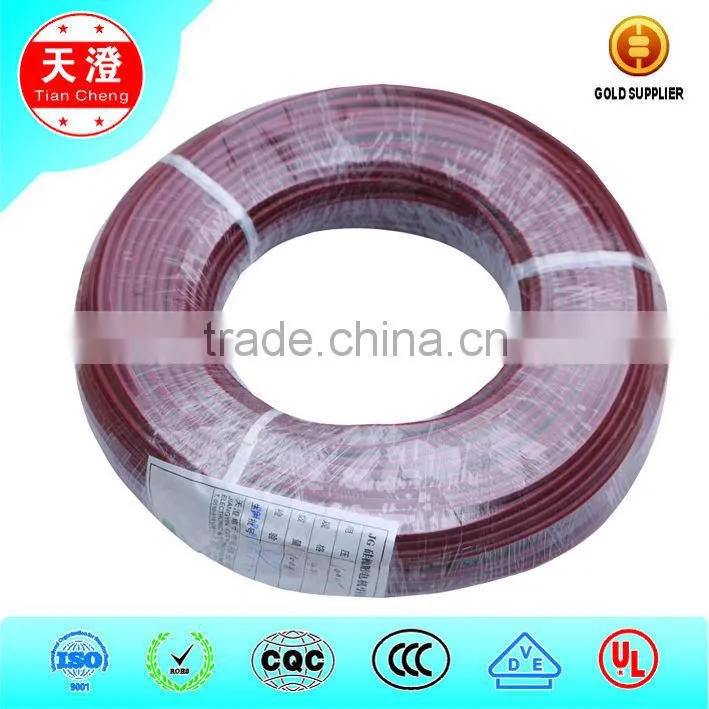

JG-500V Silicone Rubber Insulation Electrical Motor Leading high-voltage wire
1.Rated voltage:500V
2,Rated temperature: -60~+180 deg.C

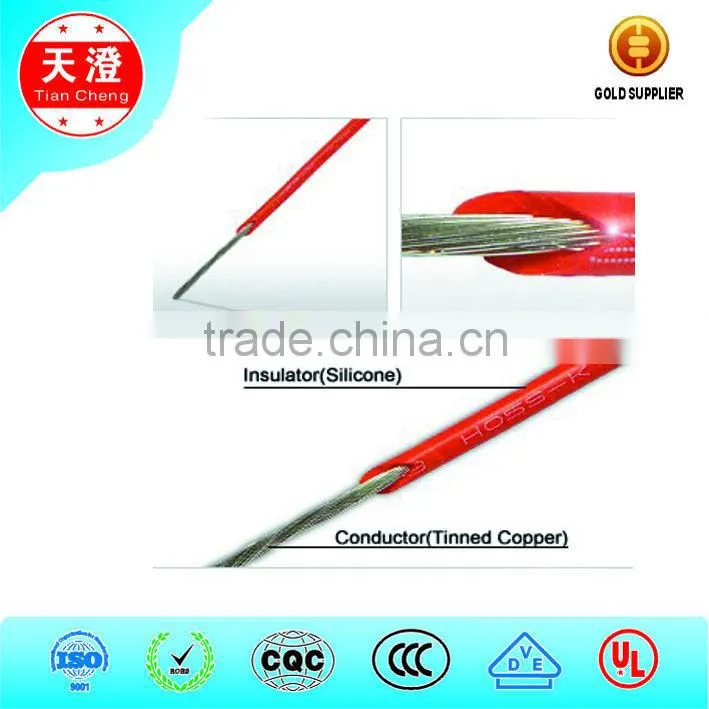

3.Conductor:tin-coated copper wire
4.Insulator:Silicone rubber
Product dimensions
|
Spec. mm |
Conductor |
Insulation |
Wire dimeter |
Max resistance 20°C (Ω/KM) |
|||
|
Structure No/mm |
Diameter mm |
Nominal Thickness mm |
Min Thickness mm |
Nominal mm |
Tolerance mm |
||
0.75 |
24/0.20 |
1.15 |
1.0 |
0.8 |
3.15 |
±0.15 |
26.7 |
1.0 |
32/0.20 |
1.34 |
1.0 |
0.8 |
3.35 |
±0.15 |
20.0 |
1.5 |
30/0.25 |
1.60 |
1.0 |
0.8 |
3.60 |
+0.20 -0.15 |
13.7 |
2.5 |
49/0.25 |
2.00 |
1.0 |
0.8 |
4.00 |
+0.30 -0.15 |
8.21 |
4.0 |
56/0.30 |
2.70 |
1.2 |
0.98 |
5.10 |
+0.30 -0.15 |
5.09 |
6.0 |
84/0.30 |
3.30 |
1.2 |
0.98 |
5.70 |
+0.30 -0.15 |
3.39 |
10.0 |
84/0.40 |
4.60 |
1.4 |
1.16 |
7.40 |
+0.30 -0.15 |
1.95 |
16.0 |
126/0.40 |
5.80 |
1.4 |
1.16 |
8.60 |
+0.40 -0.20 |
1.24 |
25.0 |
196/0.40 |
7.30 |
1.6 |
1.34 |
10.50 |
+0.40 -0.20 |
0.795 |
35.0 |
276/0.40 |
8.60 |
1.8 |
1.52 |
12.20 |
+0.40 -0.20 |
0.565 |
50.0 |
396/0.40 |
10.7 |
2.0 |
1.7 |
14.70 |
+0.40 -0.20 |
0.393 |
70.0 |
360/0.50 |
12.4 |
2.0 |
1.7 |
16.40 |
+0.40 -0.20 |
0.277 |
95.0 |
475/0.50 |
14.5 |
2.2 |
1.88 |
18.90 |
+0.50 -0.25 |
0.21 |
120.0 |
608/0.50 |
16.0 |
2.2 |
1.88 |
20.40 |
+0.50 -0.25 |
0.164 |
150.0 |
756/0.50 |
18.0 |
2.4 |
2.06 |
22.80 |
+0.50 -0.25 |
0.132 |
185.0 |
925/0.50 |
20.0 |
2.4 |
2.06 |
24.80 |
+0.50 -0.25 |
0.108 |
240.0 |
1221/0.50 |
23.0 |
2.6 |
2.24 |
28.20 |
+0.50 -0.25 |
0.0817 |
300.0 |
1517/0.50 |
26.0 |
3.0 |
2.6 |
32.0 |
+0.50 -0.25 |
0.0654 |
