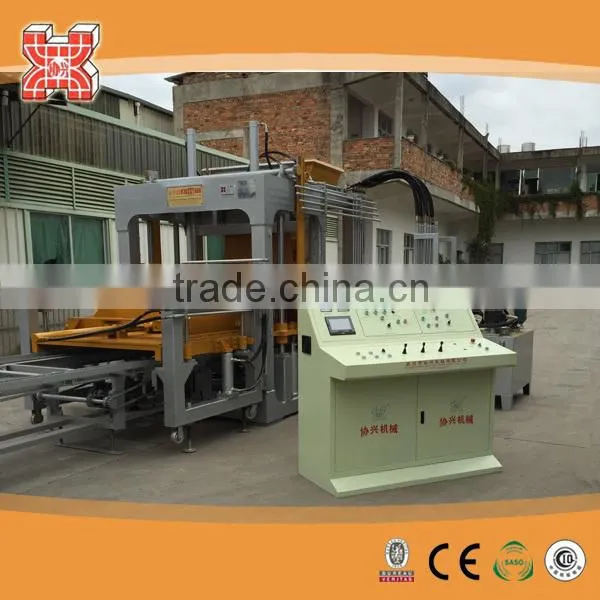

Automatic XQY10-50(QT10-15) concrete/cement block making machine by hydraulic pressure
duct info
a.XQY10-50 hollow brick machine's capacity:
| Machine Models | XQY10-50 | |
| 400x200x200mm | Per Stroke | 10 blocks |
| Per Day(8hrs) | 12000~14400 | |
| 400x200x150mm | Per Stroke | 14 blocks |
| Per Day(8hrs) | 16800~20160 | |
| 400x200x100mm | Per Stroke | 20 blocks |
| Per Day(8hrs) | 24000~26880 | |
|
240x115x53mm |
Per Stroke | 54 pcs |
| Per Day(8hrs) | 90720 | |
|
200x100x60/80mm Paver |
Per Stroke | 35 pcs |
| Per Day(8hrs) | 50400 | |
|
230x115x60/80mm Paver |
Per Stroke | 21 pcs |
| Per Day(8hrs) | 25200~30240 | |
b. XQY10-50 hollow brick machine's technology parameter:
| Main Machine Overall size(L*W*H): | 6900*2250*2950mm |
| Pallet Size(L*W*Hmm) | 1200*850*25mm |
| Molding Periodicity | 15~30s |
| Machine Power | 41KW |
| Machine Weight | ~12t |
duct image
a.XQY10-50 hollow brick machine advantages:
a.the perfect designing in structures facilitates the cutter to be exchanged,let alone the operating and maintaining.The equipment is tight-fixed and durable with high automation,low even consumption and competitive price based on the quality.

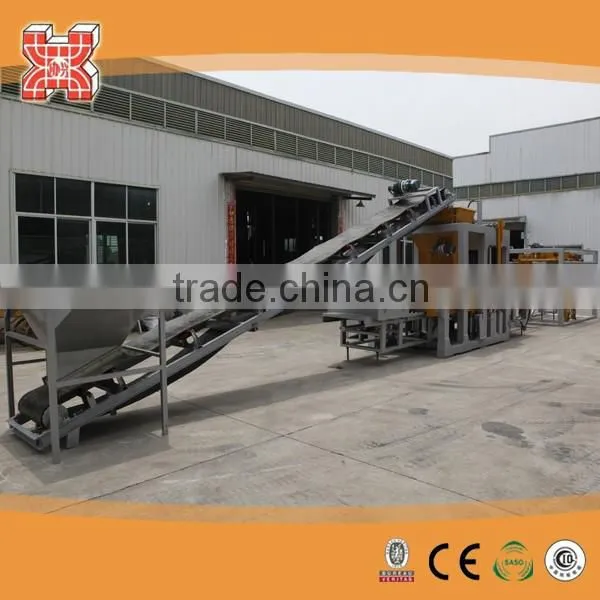

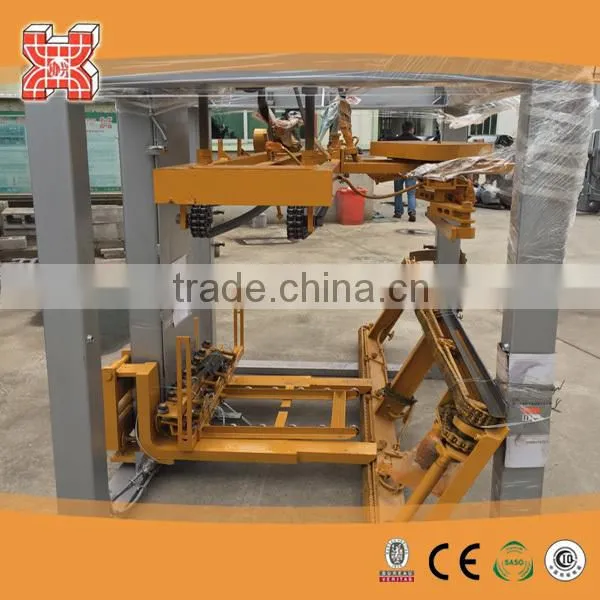

b.Perfect designing,such as,adopting the auto pallets feeding system,material conveying and laying out system,compulsive material disposing system and synchronously pressing and molding system.

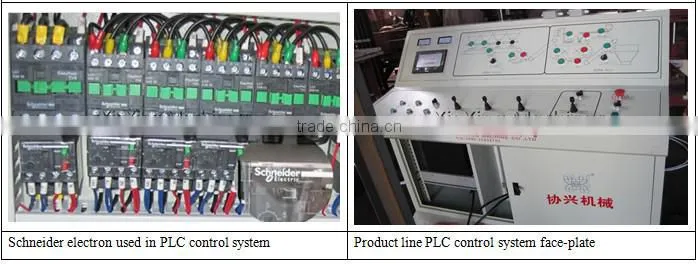

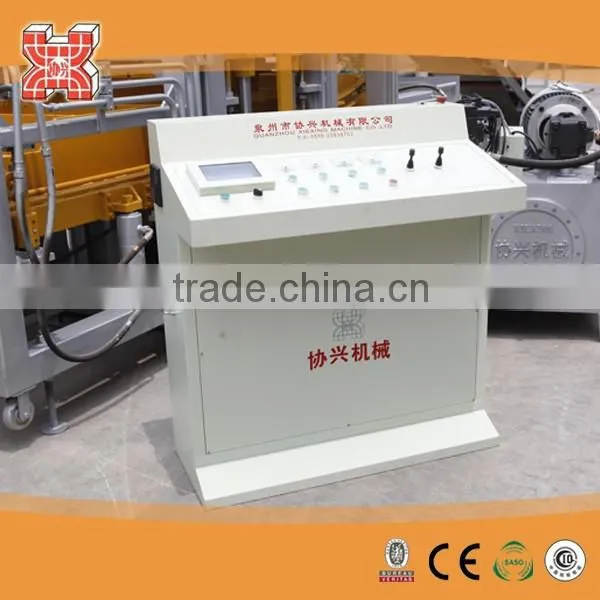

c.Machine,electricity,hydraulic are all combined together and controlled by PLC with the optional locking password to protect the running with safety .

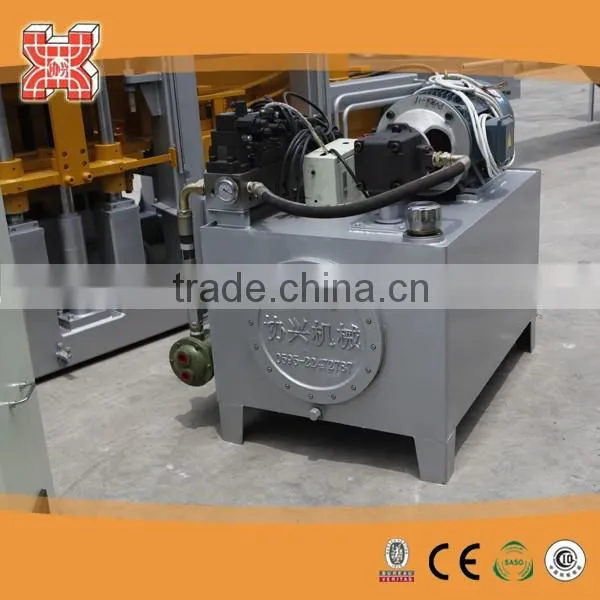

d.Being vibrated by the hydraulic-pressure motor,the vibration efficiency is high.The unique vibration device is in the form of linkage incorporate viibration table,which materializes to minimize the gap between all the vibration points in even.
e.It is widely used,which can produce standard block,hollow block,lightweight block,road surface block and so on,more specially for volume producing the standard block and the hollow block making machine.
b. XQY10-50 hollow brick machine details:
1.Configuration

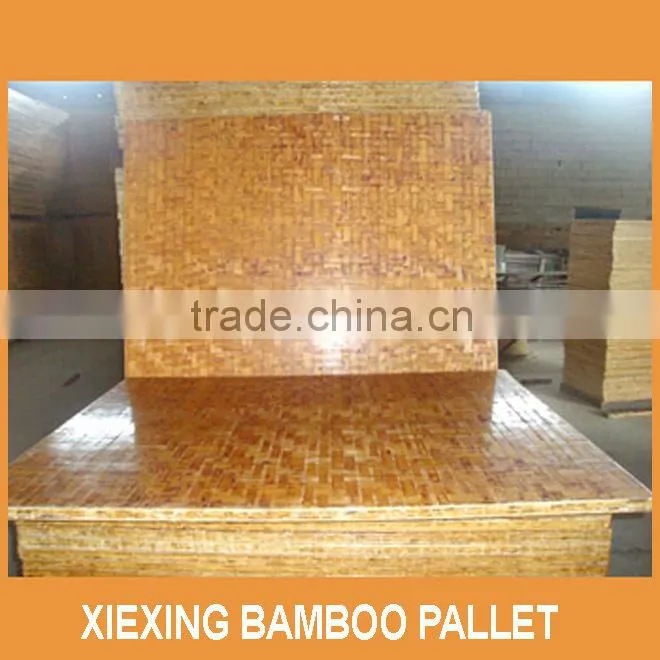

a.Bamboo pallet

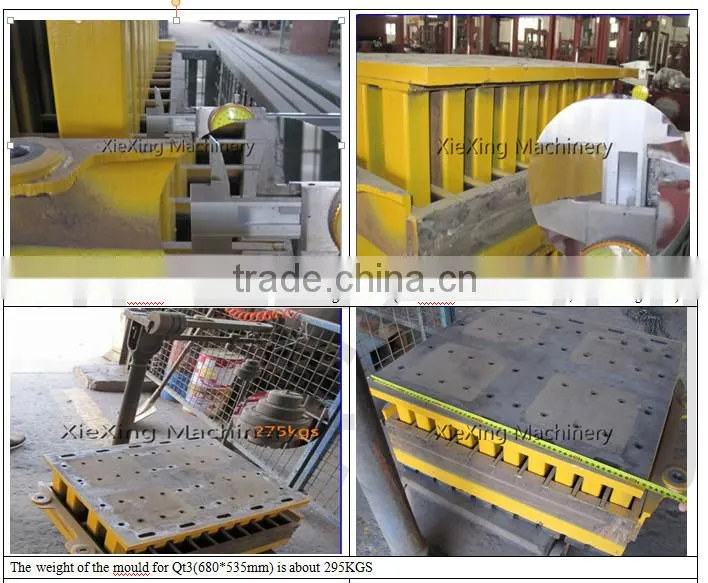

b.Kinds of moulds

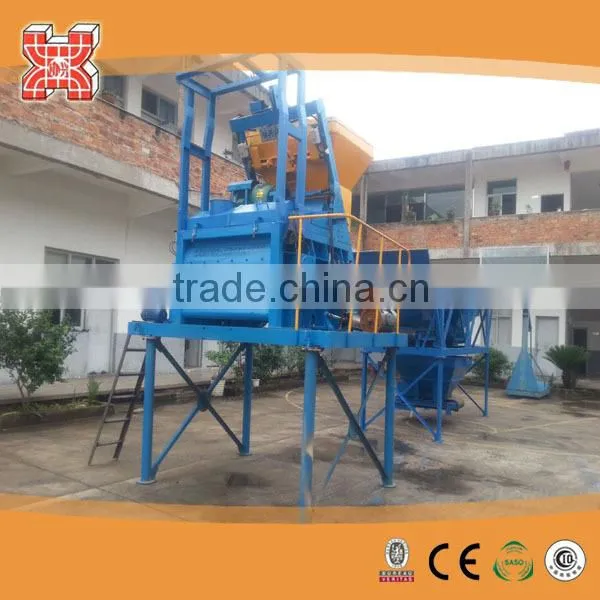

c.JS500 concrete mixer

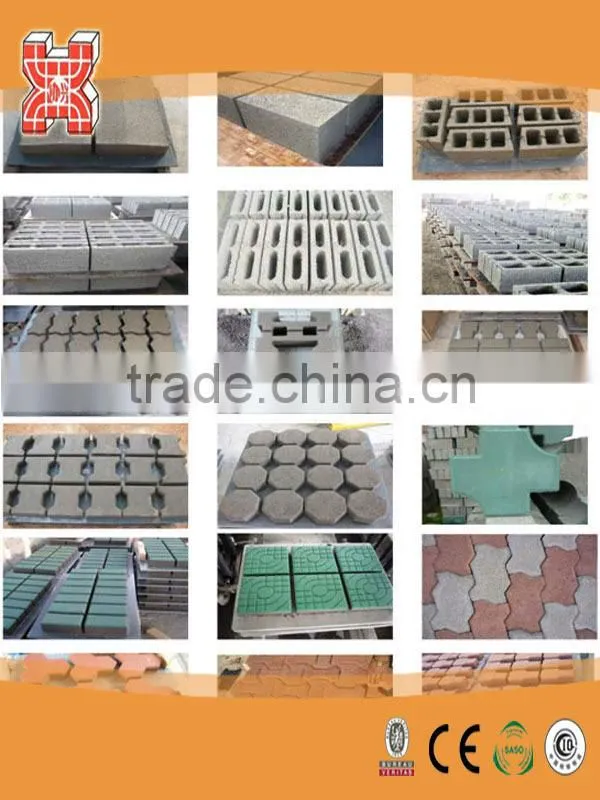

d.Kinds of brick samples

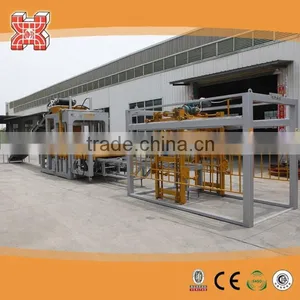

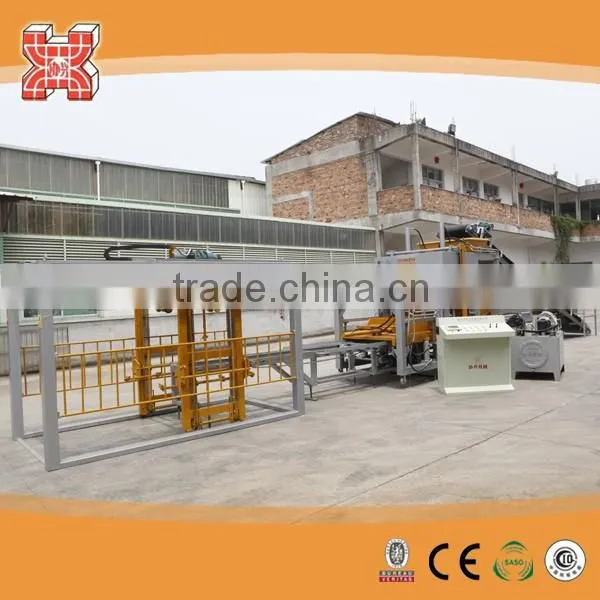

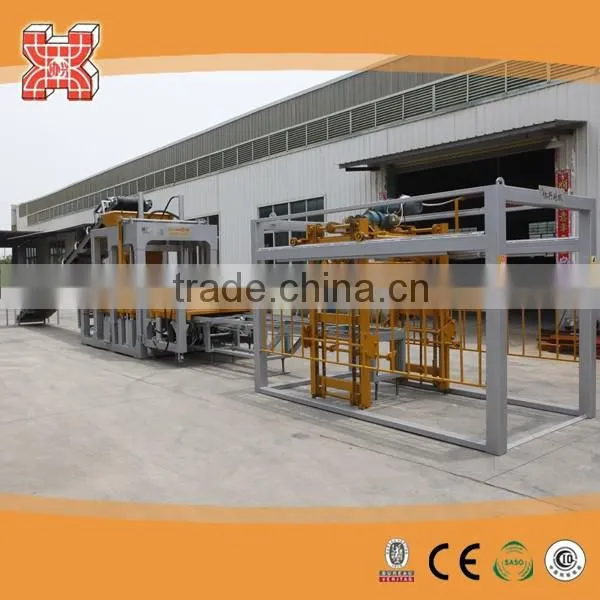

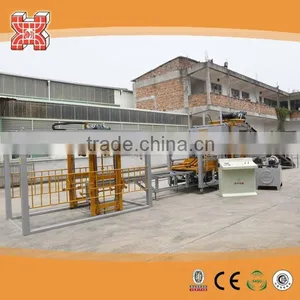

1.customer cases

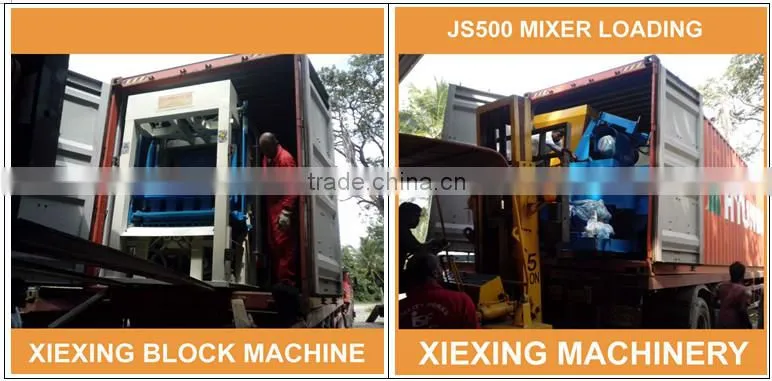

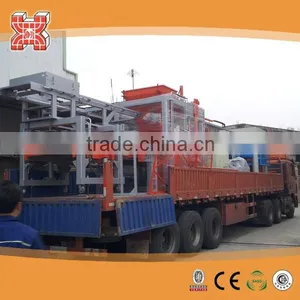

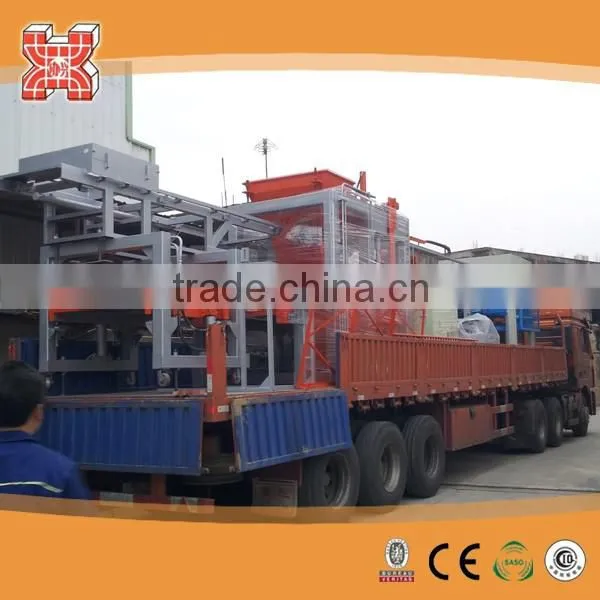

1.packaging&shipping for the brick machine
FCL: |
Nude packaging or as your request |
LCL: |
By plywood and hob |
Delivery Detail: |
Within 25~30 days after receive the deposit |
Packaging Detail: |
Nude packing or suitable for sea transportation |
Port of loading: |
xiamen Port or named port of shipment |
Payment Term: |
T/T L/C or others |
Welcome to visit our factory and contact me at any time!!!
Concate way:
Fosea.lin
Skype: lin.fosea
QQ:799412806
Trademanager: cn1501429029
Mobile / Viber / Whatsapp : +86 15345976042
