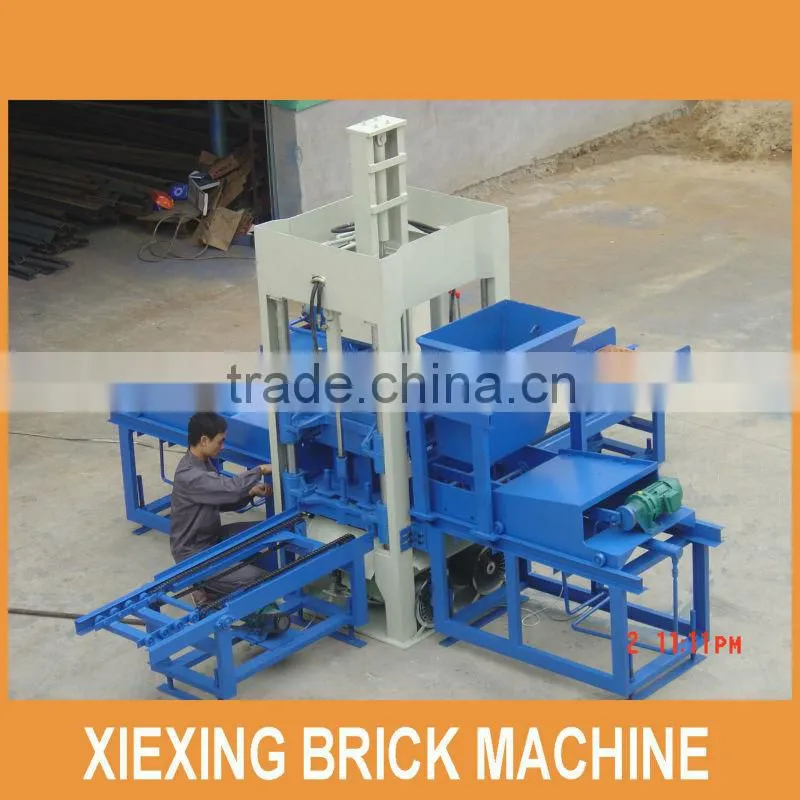

QT3-20 high quality paver block machine
As a professional produce of block machine manufacturer,our machineries with perfect design and high quantity.Now, Let us know more information on XieXing QT3-20

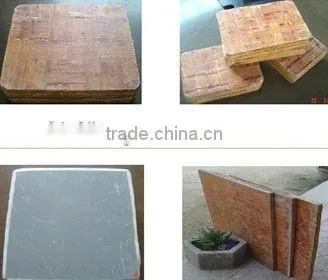

XIEXING XQY3-10(QT3-20) is SIMPLE paving block machine. It's widely used,which can produce standard block,hollow block,lightweight block,road surface block and so on,more specially for volume producing the standard block and the hollow block, as following pictures.
| Technology Parameter of compressed earth paving blocks machines | |
| Main Machine Overall size(L×W×Hmm) | 3500*1000*2480mm |
| Pallet Size(L×W×Hmm) |
680× 535×20mm |
| Molding Periodicity(differs from the different product) | 15~30seconds |
| Machine Power | 16kw |
| Machine Weight | ~4t |
| Molding brick quality |
Standerd block 20pcs/mold Eight-hole block 10pcs/mold Hollow block 3pcs /mold |

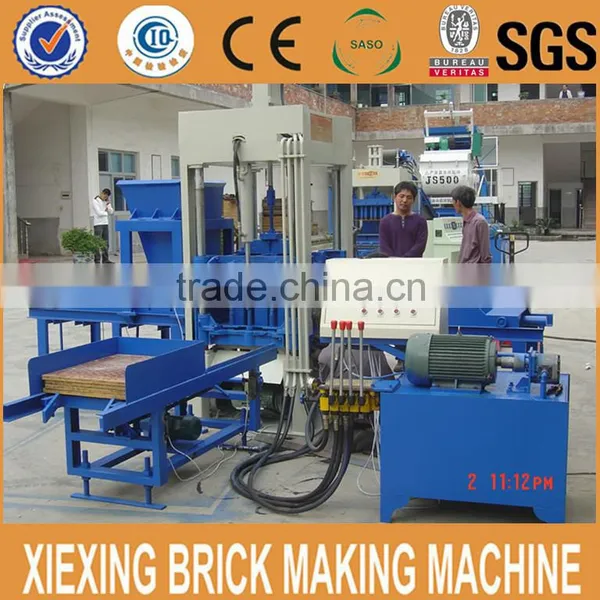

Product line quality details

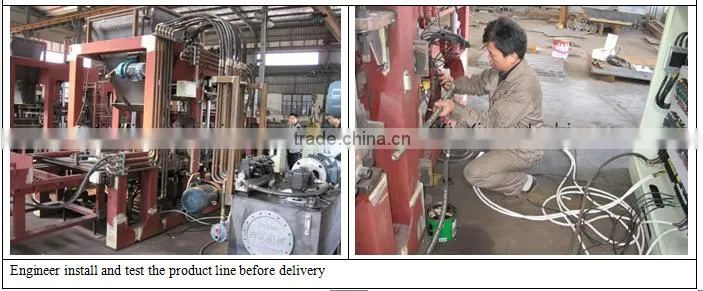

Product making flow & workshop
Product line working vedios
QT8-15 /v_show/id_XODcxNTQ2ODAw.html
QT6-15 /v_show/id_XODU0NzU0Mzky.html
QT4-15 /v_show/id_XODcxNTU3NzE2.html
QT3-20 /v_show/id_XODcxNTU4MDk2.html
ManulQT3-20 /v_show/id_XODcxNTYxMzAw.html
Materals:
Non-burn Block/Brick Material Batching Ratio |
Plans 1: |
coal powder 30%, slag 30%, saltpeter powder 30%, cement 8~10% , |
arenite concentrates powder 0.2% (100kg/cm2 mixed 8% cement, 150kg/cm2 mixed 10% cement) |
Plans 2: |
Stone powder 60%, saltpeter powder 3%, cement 8-10%, calces 3%, ash 0.2% |
Plans 3: |
Sand 60%, Stone powder 30%, cement 10~15%, mortar adhesive 0.5%. |
Plans 4: |
Shale 90%, cement 8~10%, arenite powder 0.2%, potassium chloride 0.2%. |
Plans 5: |
Iron ore powder 60%, Stone powder 30%, cement 10-15%, arenite concentrates powder 0.2%, potassium chloride 0.2%, early strength agent 0.2%. |
Plans 6: |
Fly ash 60%, slag 30%, cement 8~10%, arenite concentrates powder 0.2%, early strength agent 0.2%. |

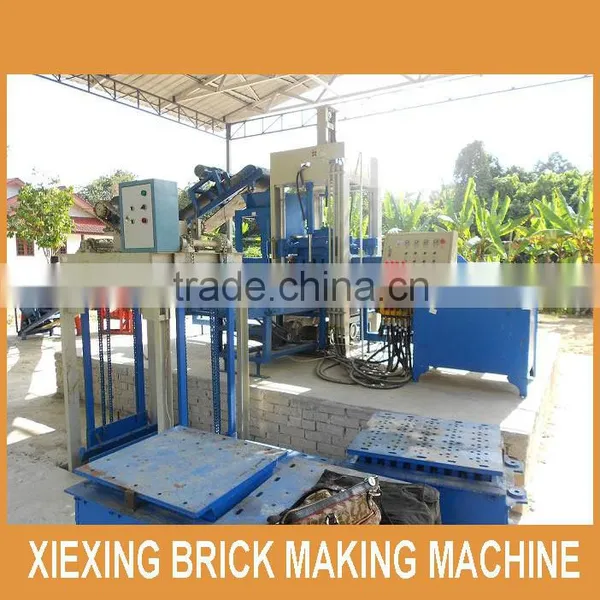

Serviced case
Transporationa&afteservice
Questions & answers
Questions |
Answers |
How to contract with you |
Skype:Catherine Zhang Telphone:+86-13062424086 |
What is the productivity of the brick machine? |
Different brick machine with different productivity of different brick size.please contact the customer services to give you the detail productivity |
What is the electric voltage and rate? |
Our local electric voltage is 380v, 3phase, 50hertz, the electricl voltage can be revised according to local situation |
Is PLC fully automatic or semi automatic? |
PLC can be fully automatic and semi automatic, according to our experience, we recommend you fully automatic PLC to you. It is easier to operate fully automatic PLC, thus saving labour cost. |
Warranty period your company |
12 month after delivery. |
Do you have enterprise website? |
|
How many molds come with one brick machine? |
One brick machine come with one mold free, the extra mold need to buy extra. |
Hong long can the molds be used? |
150000times, after repair, can you use another 150000times. |
The life of the machine? |
One brick machine can be used 6-10 years in common using station |
The mode of transportation. |
by sea, by land or by rail according to situation. |
The production time of the brick machine? |
The general production time about 20days , the specific time depend on the specific situations. |
